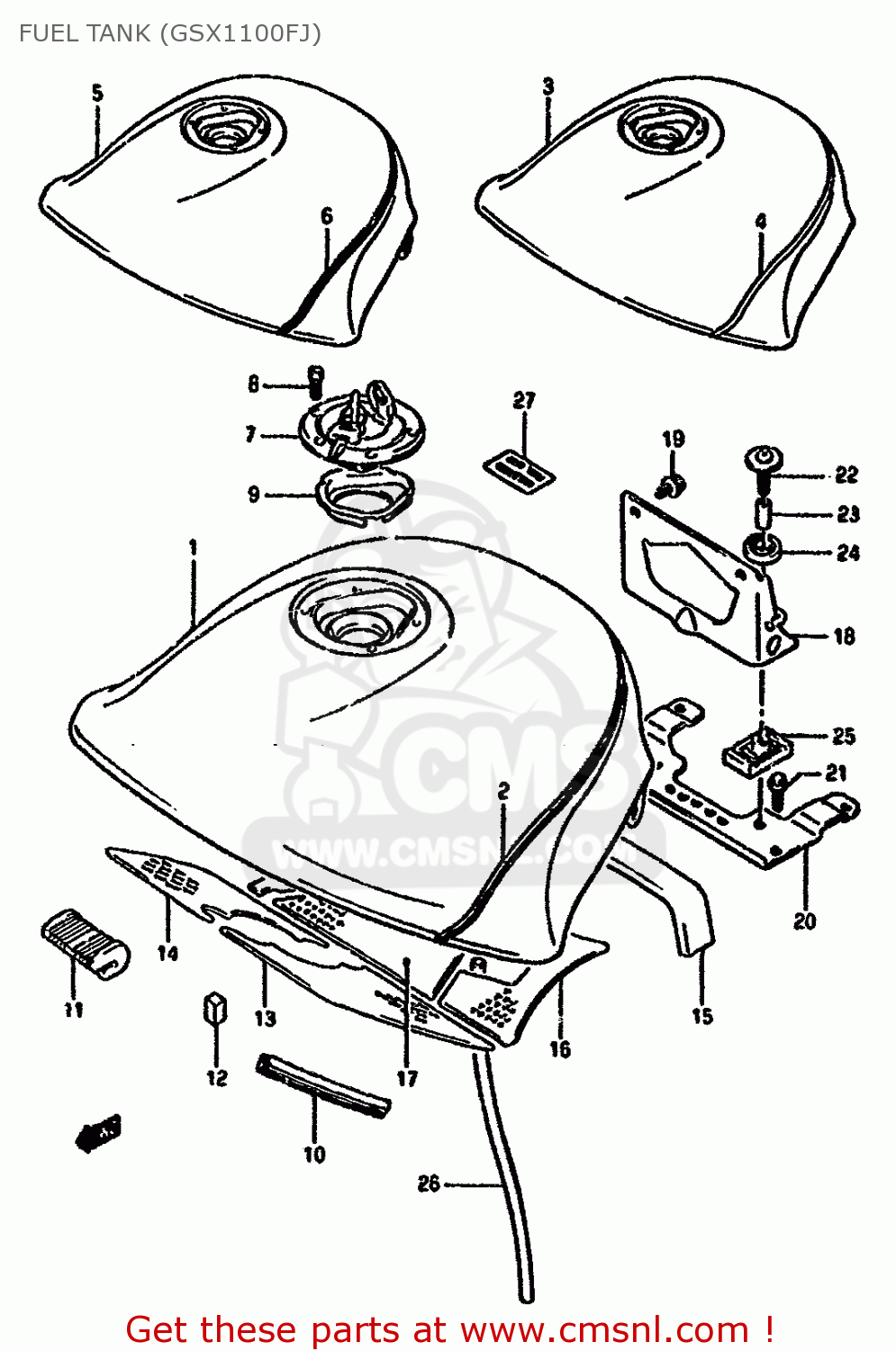

FUEL TANK (GSX1100FJ)

ref

part #

description

quantity

1-1

4410048B5024V
ref: 1-1

TANK ASSEMBLY,FUEL

€ 632.00

1-2

4410048B5024D
ref: 1-2

TANK ASSEMBLY,FUEL

€ 632.00

1-3

4410048B6024V
ref: 1-3
E76

TANK ASSY,FUEL (BLUE)

€ 632.00

1-4

4410048B6024D
ref: 1-4
E76

TANK ASSY,FUEL (MAROON)

€ 632.00

2-1

6811048B008RZ
ref: 2-1
FOR 24V

TAPE SET,FUEL TANK

€ 65.00

2-2

6811048B009YN
ref: 2-2
FOR 24D

TAPE SET,FUEL TANK

€ 56.50

3-1

4490048B009RD
ref: 3-1

TANK ASSY,FUEL (BLUE/RED)

€ 1,035.00

3-2

4490048B209RD
ref: 3-2
E76

TANK ASSY,FUEL (BLUE/RED)

€ 1,035.00

4

6811048B109RL
ref: 4
FOR 9RD

TAPE SET,FUEL TANK

€ 58.50

5-1

4490048B109WV
ref: 5-1

TANK ASSY,FUEL (RED/WHITE)

€ 791.00

5-2

4490048B309WV
ref: 5-2
E76

TANK ASSY,FUEL (RED/WHITE)

€ 0.00

6

6811048B209YS
ref: 6
FOR 9WV

TAPE SET,FUEL TANK

€ 0.00

7

4420048B01KEY
ref: 7

CAP SET,FUEL TANK

€ 187.00

8

0910605016
ref: 8

BOLT(5X10)

€ 2.00

9

4426248B00
ref: 9
E76

COVER,FUEL TANK INLET

€ 48.00

10

6824148B00
ref: 10

MOLDING,FUEL TANK

€ 6.00

11

4451148B10
ref: 11

CUSHION,FUEL TANK FR

€ 9.50

12

4454548B10
ref: 12

CUSHION,FUEL TANK SIDE

€ 10.00

13

4419648B00
ref: 13

HEATSHIELD,FUEL TANK FR,L

€ 17.50

14

4419748B00
ref: 14

HEAT SHIELD,FUEL TANK

€ 13.00

15

4419348B01
ref: 15

HEAT SHIELD,FUEL TANK

€ 9.50

16

4419848B00
ref: 16

HEATSHIELD,FUEL TANK RR,L

€ 18.00

17

4419948B00
ref: 17

HEAT SHIELD,FUEL TANK

€ 36.50

18

4455048B10
ref: 18

BRACKET COMP,FUEL TANK

€ 22.00

19

0913806038
ref: 19

SCREW(6X16)

€ 3.00

20

4457048B00
ref: 20

BRACKET,FUEL TANK RR LOW

€ 18.00

21

0214206205
ref: 21

SCREW, CENTER

€ 2.00

22

0913606106
ref: 22

BOLT L:35,WITH WASHER

€ 2.50

23

0918006091
ref: 23

SPACER (6.4X9X21.5)

€ 5.50

24

0932016010
ref: 24

CUSHION

€ 5.00

25

0932009033
ref: 25

CUSHION

€ 7.50

26

0935270103950
ref: 26

HOSE

€ 17.50

27

8693273060
ref: 27
E75

LABEL,FUEL CAUTION

€ 4.00
