FRAME
GSX1100F 1993 (P) ZWITZERLAND (E18)

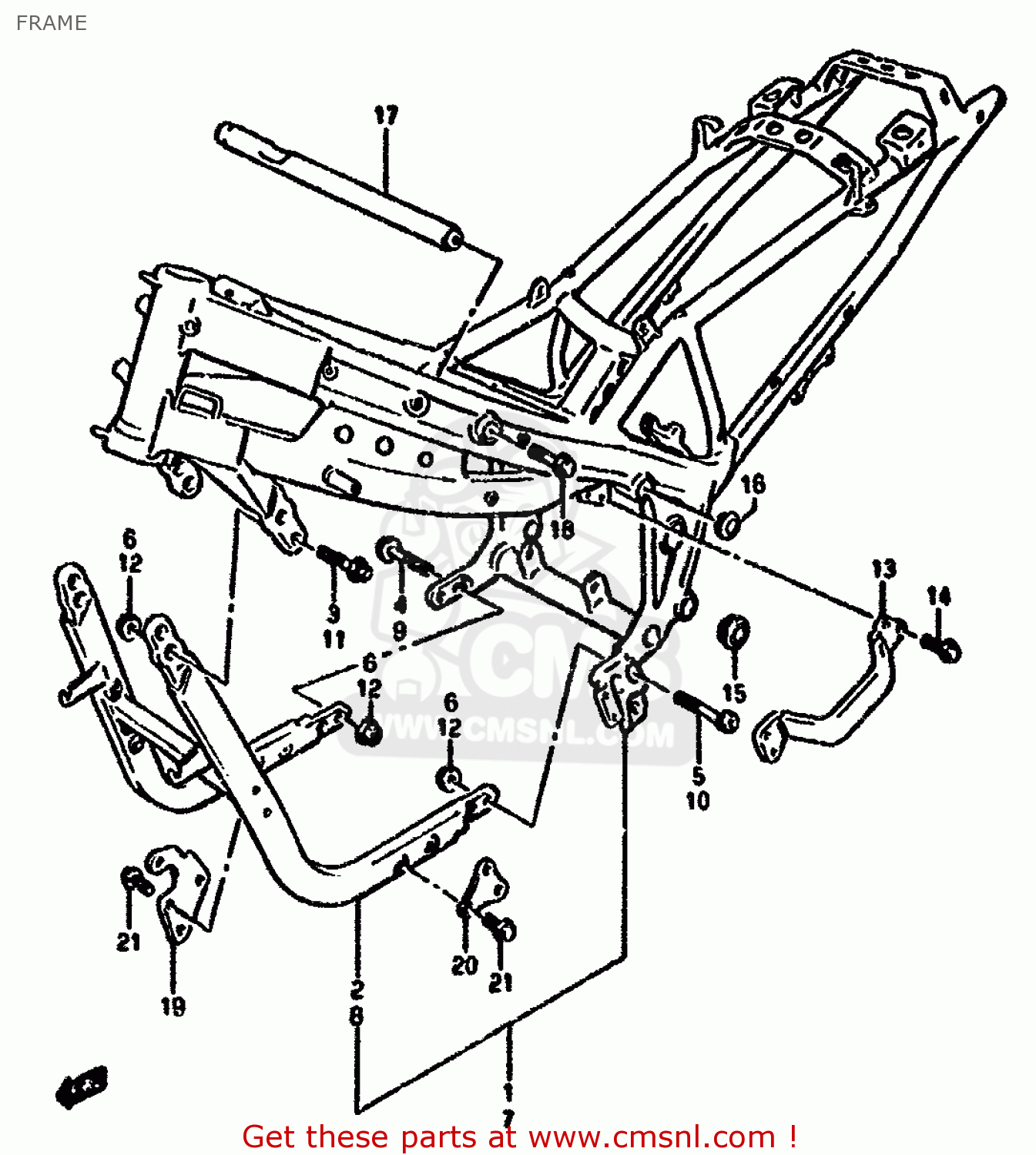

Frame diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
FRAME GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110048B5013L
ref: 1-1
MODEL J
FRAME
€ 1,218.00
1-2
4110048B6013L
ref: 1-2
MODEL J E76,E78
FRAME (SILVER)
€ 1,741.50
2
4114048B50
ref: 2
MODEL J
TUBE,FRAME
€ 143.50
3
0712010408
ref: 3
MODEL J
BOLT,FRONT
€ 4.50
4
0712010358
ref: 4
MODEL J
BOLT,REAR RH
€ 4.00
5
0711010458
ref: 5
MODEL J
BOLT,REAR LH
€ 3.50
6
0831931107
ref: 6
MODEL J
NUT
€ 3.00
7-1
411004881013L
ref: 7-1
MODEL K/L
FRAME SET (SILVER)
€ 2,038.50
7-2
411004882013L
ref: 7-2
MODEL K/L E15,E17,E2
FRAME SET (SILVER)
€ 0.00
7-3
411004883013L
ref: 7-3
MODEL K/L E18
FRAME
€ 0.00
7-4
411004884013L
ref: 7-4
MODEL M/N/R
FRAME SET (SILVER)
€ 2,038.50
7-5
411004885013L
ref: 7-5
MODEL M/N/R E15,E17,
FRAME SET (SILVER)
€ 0.00
7-6
411004886013L
ref: 7-6
MODEL M/N E18,E39
FRAME SET
€ 0.00
7-7
411004886013L
ref: 7-7
MODEL P/R E18
FRAME SET
€ 0.00
8-1
4114048C5013L
ref: 8-1
MODEL K/L/M
TUBE,FRAME DOWN (SILVER)
€ 0.00
8-2
4114048C6013L
ref: 8-2
MODEL M/N/P E18,E39
TUBE,FRAME,DOWN
€ 0.00
9
0712010357
ref: 9
MODEL K/L/M/P/R
BOLT
€ 4.00
10
0711010457
ref: 10
MODEL K/L/M/P/R
BOLT
€ 3.50
11
0712010407
ref: 11
MODEL K/L/M/P/R
BOLT
€ 4.50
12
0831931107
ref: 12
MODEL K/L/M/P/R
NUT
€ 3.00
13-1
4155048C00
ref: 13-1
MODEL K/L/M/N/R
TUBE,FRAME REINFORCE RH
€ 119.50
13-2
4156048C00
ref: 13-2
MODEL K/L/M/N/R
TUBE,FRAME REINFORCE LH
€ 100.50
14-1
0151708258
ref: 14-1
MODEL K/L/M/N
BOLT
€ 2.50
14-2
0155008253
ref: 14-2
MODEL R
BOLT
€ 2.50
15
4188848B01
ref: 15
CAP,FRAME NO.1
€ 3.50
16-1
4188948B00
ref: 16-1
MODEL J
CAP,FRAME NO.2
€ 4.00
16-2
4188948B01
ref: 16-2
MODEL K/L/M/N/P/R
CAP,FRAME NO.2
€ 4.00
17
4659048B10
ref: 17
BRIDGE,TANK RAIL
€ 64.50
18
0711010558
ref: 18
BOLT,TANK BRIDGE
€ 2.50
19
4191148B1213L
ref: 19
PLATE,ENGINE MOUNTING
€ 16.50
20
4192148B1113L
ref: 20
PLATE,ENG MTG NO.2
€ 13.50
21
0151708207
ref: 21
BOLT
€ 3.00
