FUEL COCK
GSX1100F 1993 (P) ZWITZERLAND (E18)

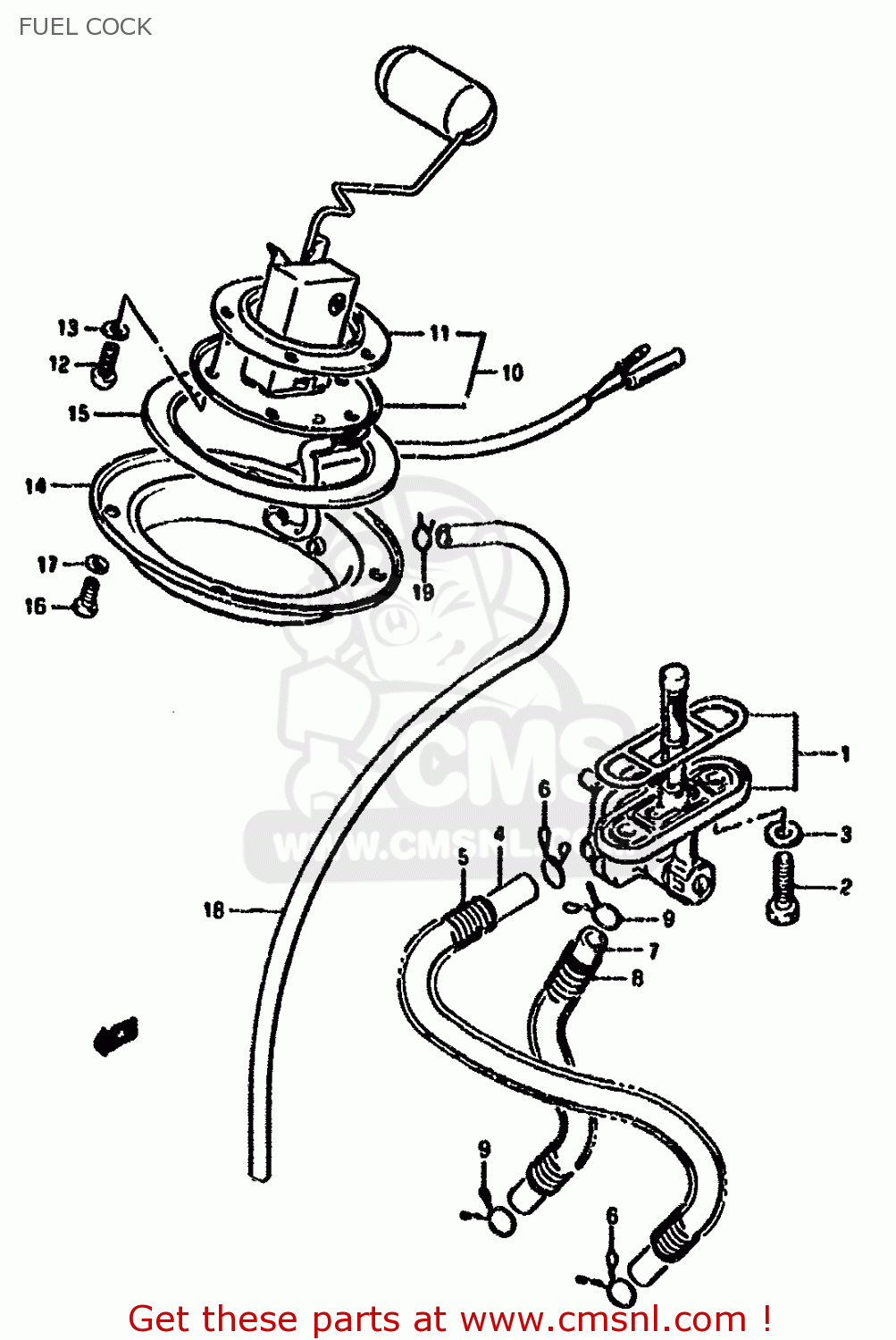

Fuel cock diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
FUEL COCK GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430048B10
ref: 1-1
MODEL J
COCK ASSEMBLY,FUEL
€ 97.00
1-2
4430048B11
ref: 1-2
MODEL K/L/M/N/P/R
COCK ASSY,FUEL
€ 97.00
2
0912806006
ref: 2
BOLT(6X20)
€ 2.00
3-1
0916806023
ref: 3-1
MODEL J
GASKET(5.8X13X1.2) (NAS)
€ 2.00
3-2
0916806026
ref: 3-2
MODEL K/L/M/N/P/R
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935270103300
ref: 4
HOSE
€ 8.00
5-1
0944013020
ref: 5-1
MODEL J
SPRING
€ 14.50
5-2
0944013047
ref: 5-2
MODEL K/L/M/N/P/R
SPRING
€ 6.00
6
0940110403
ref: 6
CLIP
€ 7.00
7
4443148B00
ref: 7
HOSE,FUEL NO.3
€ 9.00
8-1
0944013018
ref: 8-1
MODEL J
SPRING
€ 14.50
8-2
0944013035
ref: 8-2
MODEL K/L/M/N/P/R
SPRING
€ 6.00
9
0940110201
ref: 9
CLIP
€ 2.00
10
3481048B00
ref: 10
GAUGE ASSY,FUEL LEVEL SENDER
€ 104.50
11
3482545100
ref: 11
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
12-1
0110705106
ref: 12-1
MODEL J
BOLT
€ 1.50
12-2
0113405106
ref: 12-2
MODEL K/L/M/N/P
BOLT
€ 2.00
12-3
0157005103
ref: 12-3
MODEL R
BOLT
€ 2.00
13
0832121056
ref: 13
MODEL J
LOCK WASHER
€ 3.00
14
3488540A00
ref: 14
PLATE,FUEL DRAIN
€ 21.00
15
3488840A00
ref: 15
GASKET,FUEL DRAIN PLATE (NAS)
€ 9.00
16-1
0211205086
ref: 16-1
MODEL J
SCREW
€ 2.00
16-2
0211235086
ref: 16-2
MODEL K/L/M/N/P
SCREW
€ 2.00
16-3
0211235083
ref: 16-3
MODEL R
SUZUKI PART
€ 2.00
17
0832121056
ref: 17
MODEL J
LOCK WASHER
€ 3.00
18
093525082300B
ref: 18
HOSE(5X8.2X2000)
€ 13.00
19
0940108402
ref: 19
CLIP
€ 1.50
