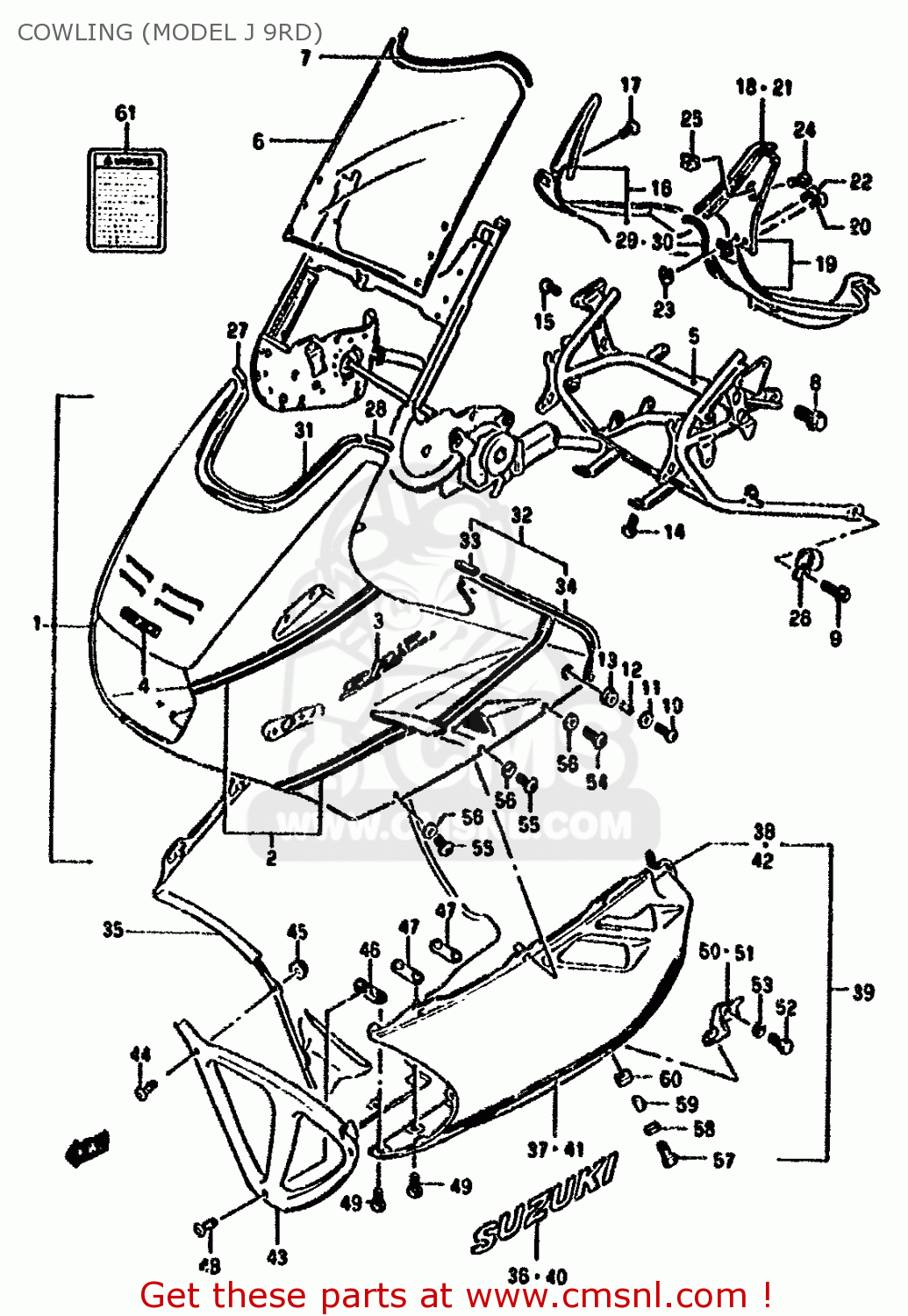

COWLING (MODEL J 9RD)

ref

part #

description

quantity

1

9440048B409RD
ref: 1

BODY ASSY,COWLING

€ 1,144.00

2

6818048B109RL
ref: 2

TAPE SET

€ 89.50

3

6818148B002CG
ref: 3

EMBLEM (SPS)

€ 21.50

4

6827134A00764
ref: 4

EMBLEM

€ 5.00

5

9451048B11
ref: 5

BRACE,COWLING

€ 213.50

6

9461148B30
ref: 6

WINDSCREEN

€ 309.50

7

9463148B10
ref: 7
E76 (SWEDEN)

MOLDING

€ 22.50

8

0910310195
ref: 8

BOLT(10X12)

€ 2.00

9

0711008165
ref: 9

BOLT

€ 3.00

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

0916006056
ref: 11

WASHER(6.5X18X1)

€ 2.00

12

0918006152
ref: 12

SPACER

€ 3.00

13

0932009016
ref: 13

CUSHION

€ 2.50

14

0913906030
ref: 14

SCREW(6X16)

€ 3.50

15

0214206127
ref: 15

SCREW 6X12

€ 1.50

16

9470048B1038T
ref: 16

PANEL ASSY,R

€ 153.00

17

0214205084
ref: 17

SCREW

€ 2.00

18

9441948B10
ref: 18

MOLDING,COWL.

€ 6.00

19

9480048B1038T
ref: 19

PANEL ASSEMBLY,LEFT

€ 170.00

20

0214205084
ref: 20

SCREW

€ 2.00

21

9441948B10
ref: 21

MOLDING,COWL.

€ 6.00

22

0214205124
ref: 22

SCREW, FRONT & REAR

€ 1.50

23

0914805020
ref: 23

NUT

€ 2.00

24

0324205124
ref: 24

SCREW

€ 1.50

25

0914805020
ref: 25

NUT

€ 2.00

26

0940318406
ref: 26

CLAMP

€ 5.50

27

9442648B10
ref: 27

CAP,PANEL & COWLING,R

€ 5.50

28

9442748B10
ref: 28

CAP,PANEL & COWLING,L

€ 4.50

29

9459148B10
ref: 29

MOLDING,COWLING PANEL,R

€ 10.00

30

9459248B10
ref: 30

MOLDING,COWLING PANEL

€ 11.50

31

9441948B00
ref: 31

MOULDING

€ 6.00

32

9443948B00
ref: 32

MOLDING,COWLING BODY SIDE

€ 15.00

33

9465148B00
ref: 33

COVER,MOLDING END

€ 7.50

34

9447948B00
ref: 34

MOLDING,COWLING BODY SIDE

€ 8.50

35

9760048B329RD
ref: 35

COVER ASSY,LOWER RH (BLUE/RED)

€ 320.00

36

6811100A50764
ref: 36

EMBLEM

€ 17.50

37

6868548B109RL
ref: 37

TAPE,RH

€ 41.50

38

9447948B10
ref: 38

MOLDING,COWLING,LOWER

€ 8.50

39

9770048B329RD
ref: 39

COVER ASSY,LOWER LH (BLUE/RED)

€ 679.00

40

6811100A50764
ref: 40

EMBLEM

€ 17.50

41

6869548B109RL
ref: 41

TAPE,LH

€ 41.50

42

9447948B10
ref: 42

MOLDING,COWLING,LOWER

€ 8.50

43

9447548B0024V
ref: 43

COVER,COWLING,LOWER,FRONT

€ 66.50

44

0913905025
ref: 44

SCREW(5X14)

€ 2.00

45

0831626055
ref: 45

NUT

€ 2.00

46

9449006B00
ref: 46

BRACE,COWLING LWR COVER

€ 4.50

47

9449306B00
ref: 47

BRACE,COWLING LWR COVER RR

€ 4.00

48

0913906027
ref: 48

SCREW(6X12)

€ 3.00

49

0913906039
ref: 49

SCREW(6X16)

€ 2.50

50

9458048B11
ref: 50

BRACE,COWLING LWR,R

€ 6.00

51

9459048B11
ref: 51

BRACE,COWLING LWR,L

€ 8.00

52

0110708127
ref: 52

BOLT 8X12

€ 2.50

53

0832121088
ref: 53

LOCK WASHER

€ 2.00

54

0913906028
ref: 54

SCREW(6X20)

€ 3.50

55

0913906030
ref: 55

SCREW(6X16)

€ 3.50

56

0916107005
ref: 56

WASHER

€ 3.00

57

0913906028
ref: 57

SCREW(6X20)

€ 3.50

58

0916006056
ref: 58

WASHER(6.5X18X1)

€ 2.00

59

0918006121
ref: 59

SPACER(6.4X9.2X12)

€ 2.50

60

0932009016
ref: 60

CUSHION

€ 2.50

61-1

6861248B10
ref: 61-1
E4

LABEL (WARNING SCREEN)

€ 6.50

61-2

6861248B00
ref: 61-2
E18,E75,E76,E78

LABEL (WARNING SCREEN)

€ 6.50

all assemblies
