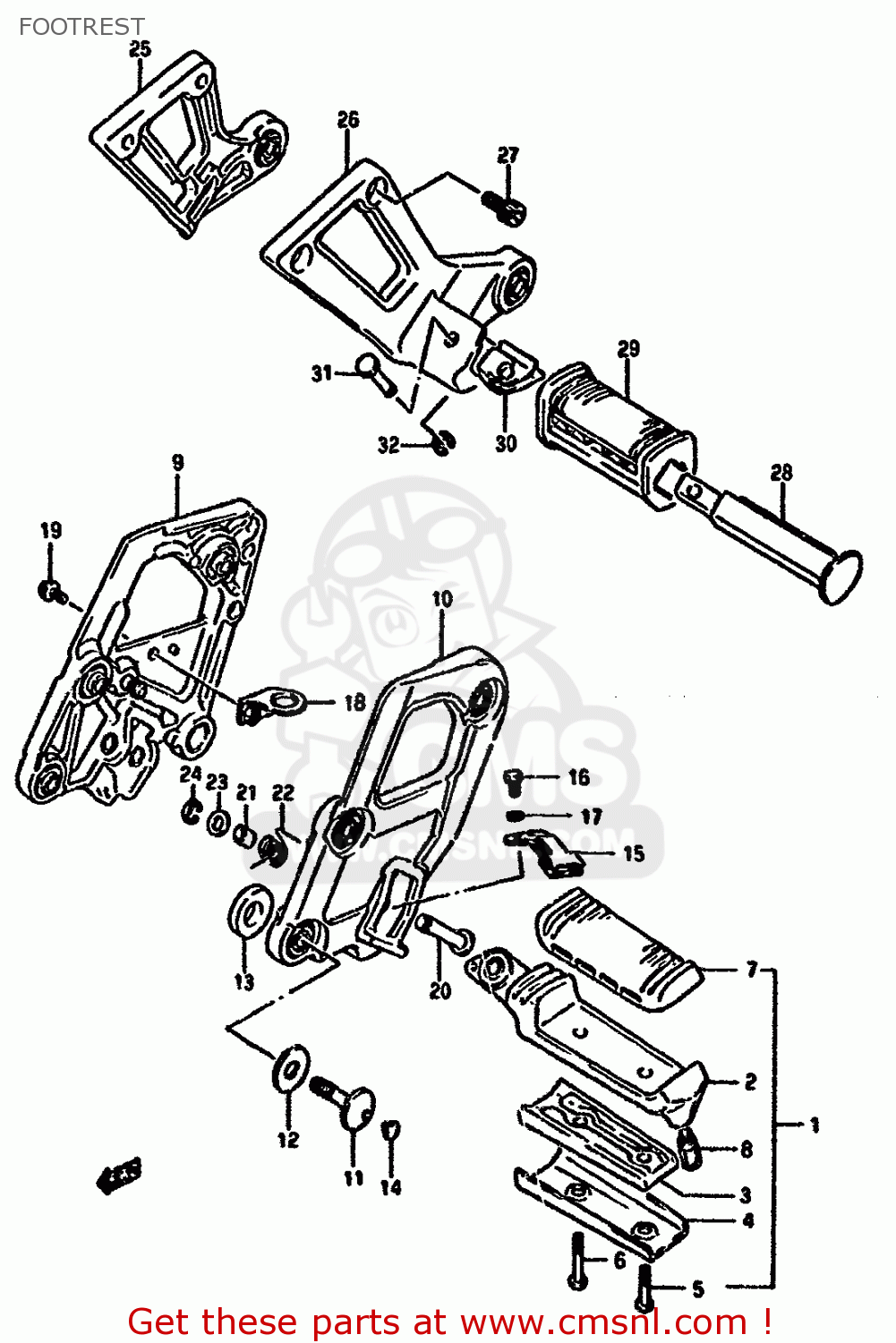

FOOTREST

ref

part #

description

quantity

1-1

4350148B01
ref: 1-1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 131.50

1-2

4350148B02
ref: 1-2

FOOTREST ASSY,FR,R

€ 131.50

1-3

4350248B01
ref: 1-3

FOOTREST ASSEMBLY,FRONT,LEFT

€ 131.50

1-4

4350248B02
ref: 1-4

FOOTREST ASSY,FR,L

€ 131.50

2-1

4351048B50
ref: 2-1
FOR 43501-48B01

BAR,FRONT FOOTREST

€ 69.00

2-2

4351048B51
ref: 2-2
FOR 43501-48B02

BAR,FR FOOTREST,R

€ 69.00

2-3

4352048B50
ref: 2-3
FOR 43502-48B01

BAR,FRONT FOOTREST

€ 26.00

2-4

4352048B51
ref: 2-4
FOR 43502-48B02

BAR,FRONT FOOTREST

€ 26.00

3-1

4353348B00
ref: 3-1

BAR,FR FOOTREST NO.2,R

€ 42.00

3-2

4353300A00
ref: 3-2

BAR,FR FOOTREST NO.2

€ 42.00

4-1

4353448B00
ref: 4-1

COVER,FR FOOTREST BAR,R

€ 11.00

4-2

4353400A00
ref: 4-2

COVER,FRONT FOOTREST B

€ 12.50

5

0211205257
ref: 5

SCREW

€ 2.00

6

0211205308
ref: 6

SCREW

€ 1.50

7-1

4355048B00
ref: 7-1
FOR 43501-48B01 FOR

FOOTREST,FRONT,RIGHT

€ 15.50

7-2

4355048B10
ref: 7-2
FOR 43501-48B02 FOR

RUBBER,FR FOOTREST

€ 31.00

8

4357648B00
ref: 8

SENSOR,FOOTREST

€ 4.00

9

4351048B1213L
ref: 9

BRACKET,FR FOOTREST,R

€ 141.00

10

4352048B1213L
ref: 10

BRACKET,FR FOOTREST,L

€ 134.00

11

0910608080
ref: 11

BOLT L:30

€ 6.00

12

0832221088
ref: 12

WASHER

€ 2.00

13

0916112003
ref: 13

WASHER(12X28X5)

€ 4.50

14

0925006008
ref: 14

CAP(OD:10)

€ 3.00

15

4357043400
ref: 15

CUSHION,FR FOOTREST

€ 8.50

16

0110705108
ref: 16

BOLT 5X10

€ 1.50

17

0832121057
ref: 17

LOCK WASHER

€ 2.00

18

4356048B00
ref: 18

BRACKET COMP,STOP LAMP SWITCH

€ 6.00

19

0913905033
ref: 19

SCREW(5X10)

€ 2.00

20

0920808005
ref: 20

PIN

€ 3.00

21

0930608013
ref: 21

BUSHING

€ 3.50

22-1

0944814030
ref: 22-1

SPRING

€ 3.50

22-2

0944814031
ref: 22-2

SPRING

€ 3.00

23

0821108141
ref: 23

WASHER

€ 1.50

24

0833211066
ref: 24

E RING

€ 2.00

25

4381048B1113L
ref: 25

BRACKET,PILLION FOOTREST,R

€ 78.50

26

4382048B1113L
ref: 26

BRACKET,PILLION FOOTREST,L

€ 78.50

27

0711008207
ref: 27

BOLT

€ 3.00

28-1

4361048B10
ref: 28-1
MODEL J/K/L/M/N/P

BAR COMP,PILLION FOOTREST

€ 29.00

28-2

4361048B11
ref: 28-2
MODEL R

BAR,PILLION FOOTREST,R

€ 29.00

28-3

4362048B10
ref: 28-3
MODEL J/K/L/M/N/P

BAR,REAR FOOTREST

€ 29.00

28-4

4362048B11
ref: 28-4
MODEL R

BAR,PILLION FOOTREST,LEFT

€ 29.00

29

4361249402
ref: 29

RUBBER,RR FOOTREST

€ 14.50

30

4357048B01
ref: 30

CUSHION,PILLION FOOTREST

€ 8.50

31

0920808009
ref: 31

PIN

€ 3.00

32

0833211066
ref: 32

E RING

€ 2.00
