MUFFLER (MODEL K/L/M/N/P/R)

GSX1100F 1993 (P) ZWITZERLAND (E18)

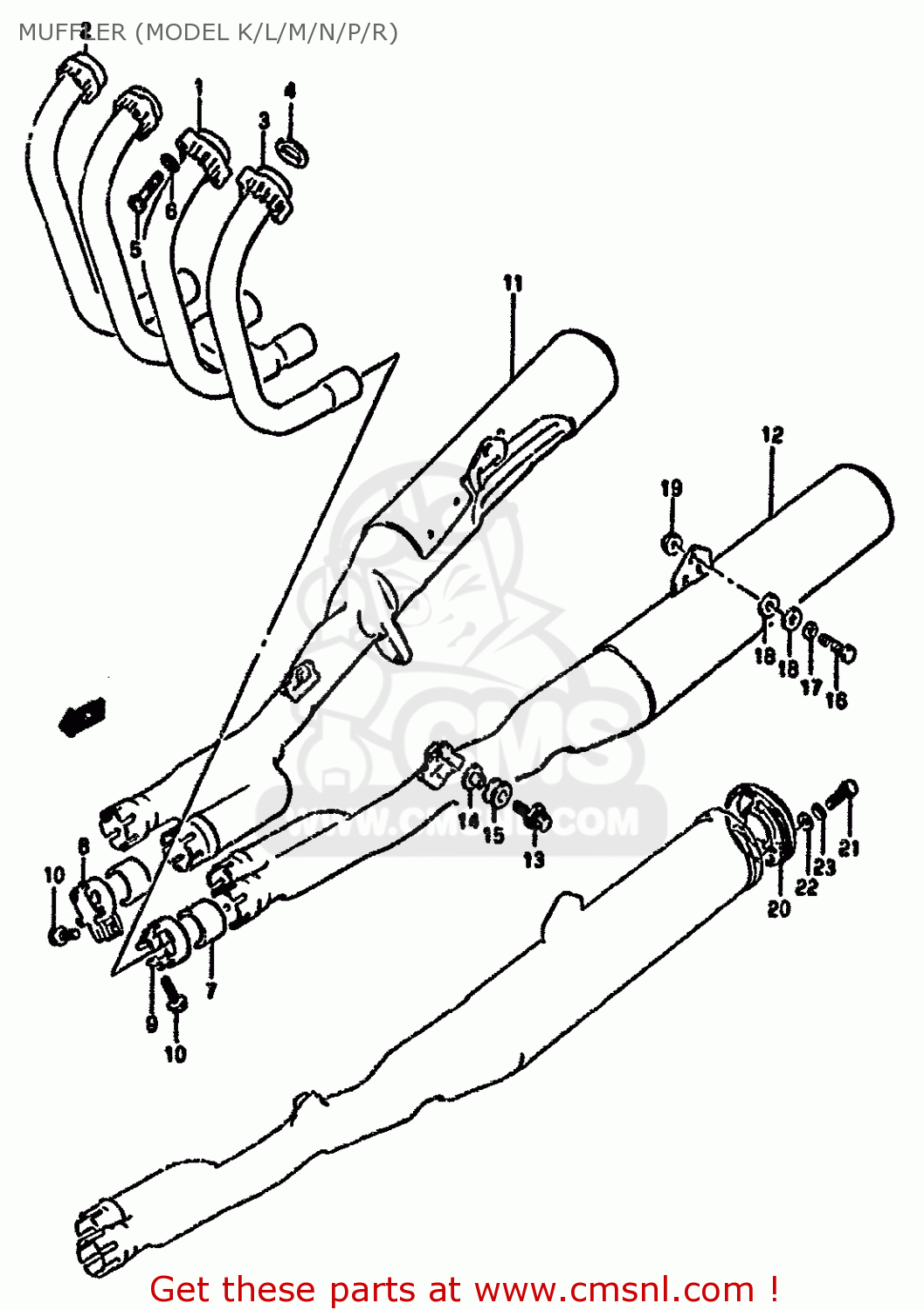

Muffler (model k/l/m/n/p/r) diagram GSX1100F 1993 (P) ZWITZERLAND (E18)

MUFFLER (MODEL K/L/M/N/P/R) GSX1100F 1993 (P) ZWITZERLAND (E18)
MUFFLER (MODEL K/L/M/N/P/R) GSX1100F 1993 (P) ZWITZERLAND (E18)
MUFFLER (MODEL K/L/M/N/P/R) GSX1100F 1993 (P) ZWITZERLAND (E18)
prices are in EUR
ref
part #
description
quantity
1-1
1410048B01H01
ref: 1-1
EXHAUST ASSY,CTR
1410048B01H01
€ 222.00
1-2
1410048B21
ref: 1-2
MODEL K/L E4
EXHAUST ASSY,CTR
€ 233.00
1-3
1410048B10
ref: 1-3
MODEL K/L E17,E18,E2
EXHAUST ASSY,CENTER
€ 222.50
1-4
1410048B30
ref: 1-4
MODEL M/N/R E17,E18,
EXHAUST ASSY,CTR
1410048B30
€ 203.00
1-5
1410048B40
ref: 1-5
MODEL M/N/R E4
EXHAUST ASSY,CENTER
€ 0.00
2-1
1415048B01
ref: 2-1
PIPE,EXHAUST,R
€ 117.00
2-2
1415048B21
ref: 2-2
MODEL K/L E4
PIPE,EXHAUST,R
€ 107.50
2-3
1415048B10
ref: 2-3
MODEL K/L E17,E18,E2
PIPE,EXHAUST RH
€ 99.00
2-4
1415048B30
ref: 2-4
MODEL M/N/R E17,E18,
PIPE,EXHAUST RH
€ 98.50
2-5
1415048B40
ref: 2-5
MODEL M/N/R E4
PIPE,EXHAUST RH
€ 0.00
3-1
1416048B01
ref: 3-1
PIPE COMP,EXHAUST,LEFT
1416048B01
€ 199.00
3-2
1416048B21
ref: 3-2
MODEL K/L E4
PIPE,EXHAUST LH
€ 199.00
3-3
1416048B10
ref: 3-3
MODEL K/L E17,E18,E2
PIPE,EXHAUST LH
€ 103.50
3-4
1416048B30
ref: 3-4
MODEL M/N/R E17,E18,
PIPE,EXHAUST,L
1416048B30
€ 128.50
3-5
1416048B40
ref: 3-5
MODEL M/N/R E4
PIPE,EXHAUST LH
€ 0.00
4-1
1418148B00
ref: 4-1
MODEL K/L, 14181-18C
GASKET,EXHAUST PIPE (NAS)
1418148B00
€ 6.50
4-2
1418118C00
ref: 4-2
MODEL M/N/P/R
GASKET,EXHAUST (NAS)
1418118C00
€ 6.50
4-3
1418114D00
ref: 4-3
MODEL K/L E17,E18 14
GASKET (NAS)
€ 6.50
5-1
0711008355
ref: 5-1
MODEL J/K/L/M/N/P
BOLT 8X35
0711008355
€ 4.00
5-2
0712008353
ref: 5-2
MODEL R
BOLT
0712008353
€ 4.00
6
0916408015
ref: 6
WASHER
0916408015
€ 3.00
7
1477148B01
ref: 7
CONNECTOR,MUFFLER
1477148B01
€ 25.00
8
1445932C00
ref: 8
CLAMP,MUFFLER CONNECTOR
1445932C00
€ 13.00
9
1446932C00
ref: 9
CLAMP,MUFFLER CONNECTOR
1446932C00
€ 14.00
10-1
0151708355
ref: 10-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
10-2
0155008353
ref: 10-2
MODEL R
BOLT
0155008353
€ 3.50
11-1
1430548C00
ref: 11-1
MODEL K
MUFFLER,RH
€ 420.00
11-2
1430548C51
ref: 11-2
MODEL L/M/N
MUFFLER,RH
€ 435.50
11-3
1430548C10
ref: 11-3
MODEL K E2
MUFFLER,RH
€ 252.00
11-4
1430548C61
ref: 11-4
MODEL L/M/N E2 MODEL
MUFFLER,RH
€ 387.00
11-5
1430548C62H01
ref: 11-5
MODEL R E2,E4,E15,E2
MUFFLER ASSEMBLY
€ 387.00
11-6
1430548C20
ref: 11-6
MODEL K E18,E24
MUFFLER,RH
€ 451.00
11-7
1430548C70
ref: 11-7
MODEL L E24,MODEL L/
MUFFLER,RH
€ 435.50
11-8
1430548C71
ref: 11-8
MODEL P/R E18
MUFFLER,RH
€ 435.50
11-9
1430548C71
ref: 11-9
MODEL R E17
MUFFLER,RH
€ 435.50
12-1
1430648C00
ref: 12-1
MODEL K
MUFFLER,LH
1430648C00
€ 420.00
12-2
1430648C51
ref: 12-2
MODEL L/M/N
MUFFLER,LH
1430648C51
€ 436.00
12-3
1430648C10
ref: 12-3
MODEL K E2
MUFFLER,LH
€ 252.00
12-4
1430648C61
ref: 12-4
MODEL L/M/N E2,MODEL
MUFFLER,LH
€ 408.50
12-5
1430648C62H01
ref: 12-5
MODEL R E2,E4,E15,E2
MUFFLER ASSEMBLY
€ 408.50
12-6
1430648C20
ref: 12-6
MODEL K E18,E24
MUFFLER,LH
€ 451.00
12-7
1430648C70
ref: 12-7
MODEL L E24,MODEL L/
MUFFLER,LH
€ 488.00
12-8
1430648C71
ref: 12-8
MODEL P/R E18
MUFFLER,LH
€ 488.00
12-9
1430648C71
ref: 12-9
MODEL R E17
MUFFLER,LH
€ 488.00
13-1
0911808072
ref: 13-1
MODEL J/K/L/M/N/P
BOLT 8X35
€ 3.50
13-2
0911808154
ref: 13-2
MODEL R
BOLT
€ 3.50
14
0918008151
ref: 14
SPACER(8.6X12X17.5)
0918008151
€ 6.00
15
0932012043
ref: 15
CUSHION
0932012043
€ 8.00
16-1
0910310207
ref: 16-1
MODEL J/K/L/M/N/P
BOLT
€ 6.50
16-2
0910310279
ref: 16-2
MODEL R
BOLT
€ 6.50
17
0832121107
ref: 17
WASHER,LOCK,10
0832121107
€ 2.00
18-1
0916010001
ref: 18-1
MODEL J/K/L/M/N/P
WASHER
0916010001
€ 2.00
18-2
0916010095
ref: 18-2
MODEL R
WASHER
0916010095
€ 2.00
19
0831610107
ref: 19
NUT
0831610107
€ 2.00
20
1479148C40
ref: 20
MODEL L/M/N/P/R
COVER,MUFFLER TAIL
€ 48.50
21-1
0910606069
ref: 21-1
MODEL L/M
BOLT,COVER MUFFLER TAIL
€ 3.00
21-2
0910606078
ref: 21-2
MODEL N/P/R
BOLT(6X15)
0910606078
€ 3.00
22
0916006055
ref: 22
MODEL L/M/N/P/R
WASHER(7X12X1)
0916006055
€ 2.00
23
0916406013
ref: 23
MODEL L/M/N/P/R
WASHER
0916406013
€ 2.50
