STAND
GSX1100F 1993 (P) ZWITZERLAND (E18)

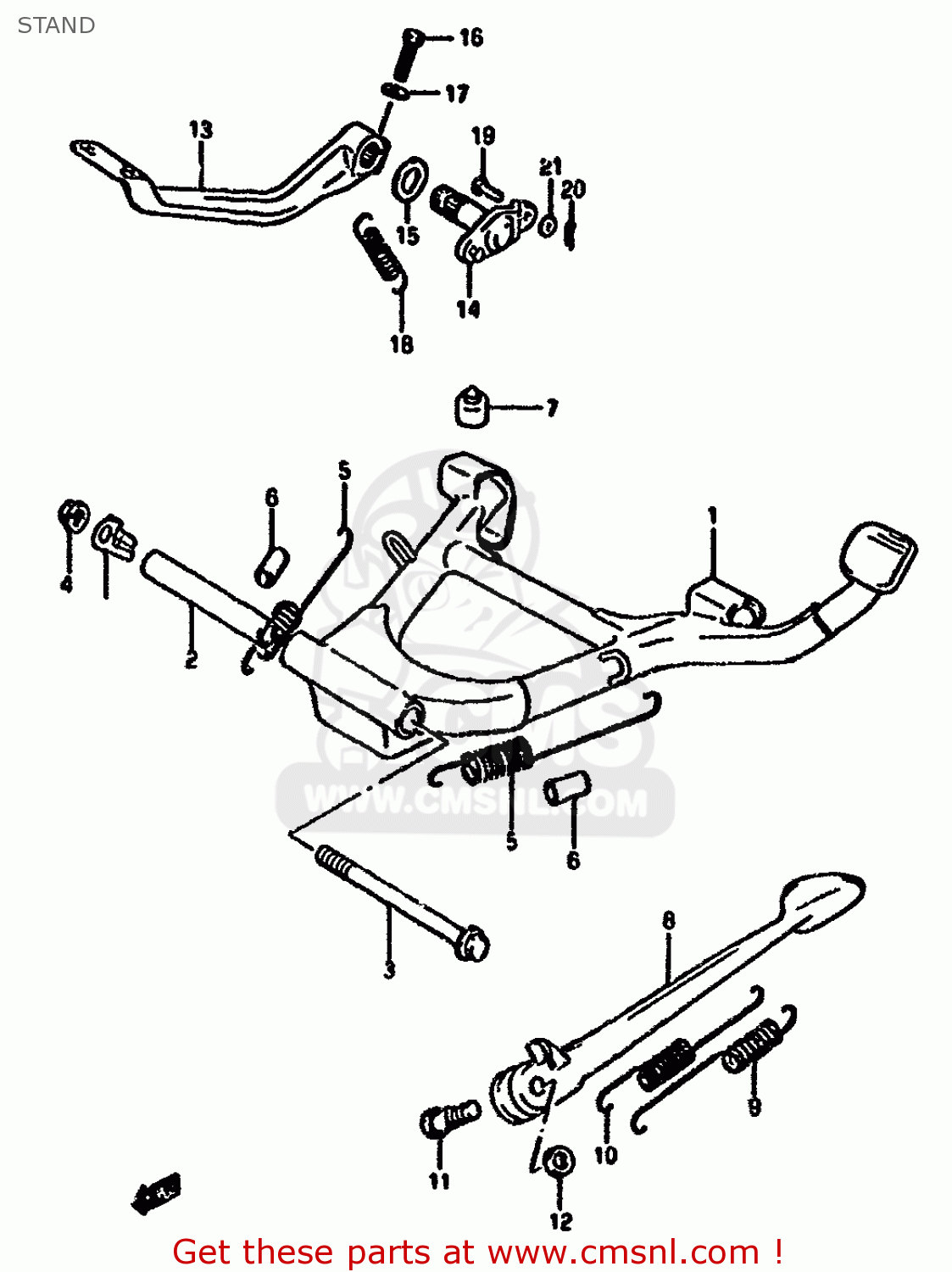

Stand diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
STAND GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210048B12
ref: 1-1
MODEL J
STAND,CENTER
€ 130.00
1-2
4210048C00
ref: 1-2
MODEL K/L
STAND,CENTER
€ 130.00
1-3
4210048C10
ref: 1-3
MODEL M/N/P/R
STAND,CENTER
€ 130.00
2
0918010119
ref: 2
SPACER (10.5X16X102)
€ 16.50
3
0910310198
ref: 3
BOLT(10X132)
€ 6.00
4
0915910060
ref: 4
NUT
€ 2.00
5
0944317021
ref: 5
SPRING
€ 8.50
6
0935270113300
ref: 6
HOSE
€ 17.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231048B41
ref: 8-1
MODEL J/K/L
STAND,SIDE
€ 76.50
8-2
4231048B42
ref: 8-2
MODEL M/N/P/R
STAND,PROP
€ 76.50
9
0944315040
ref: 9
SPRING
€ 6.00
10
0944314051
ref: 10
SPRING
€ 5.50
11
0911110036
ref: 11
BOLT(10X38)
€ 5.50
12-1
0831022105
ref: 12-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
12-2
0914010043
ref: 12-2
MODEL R
NUT
€ 2.00
13
4311131300
ref: 13
PEDAL,BRAKE
€ 72.50
14
4312048B11
ref: 14
ARM,BRAKE PEDAL
€ 23.00
15
4321248B00
ref: 15
WASHER,BRAKE BOSS
€ 2.50
16-1
0110708258
ref: 16-1
MODEL J
BOLT
€ 2.50
16-2
0112708257
ref: 16-2
MODEL K/L/M/N/P/R
BOLT
€ 2.50
17
0832211088
ref: 17
MODEL J
WASHER
€ 2.00
18
0944314026
ref: 18
SPRING
€ 5.00
19
0920006037
ref: 19
PIN
€ 5.00
20
0411120158
ref: 20
PIN
€ 1.50
21
0832221067
ref: 21
WASHER
€ 2.00
