GEAR SHIFTING
GSX1100F 1993 (P) ZWITZERLAND (E18)

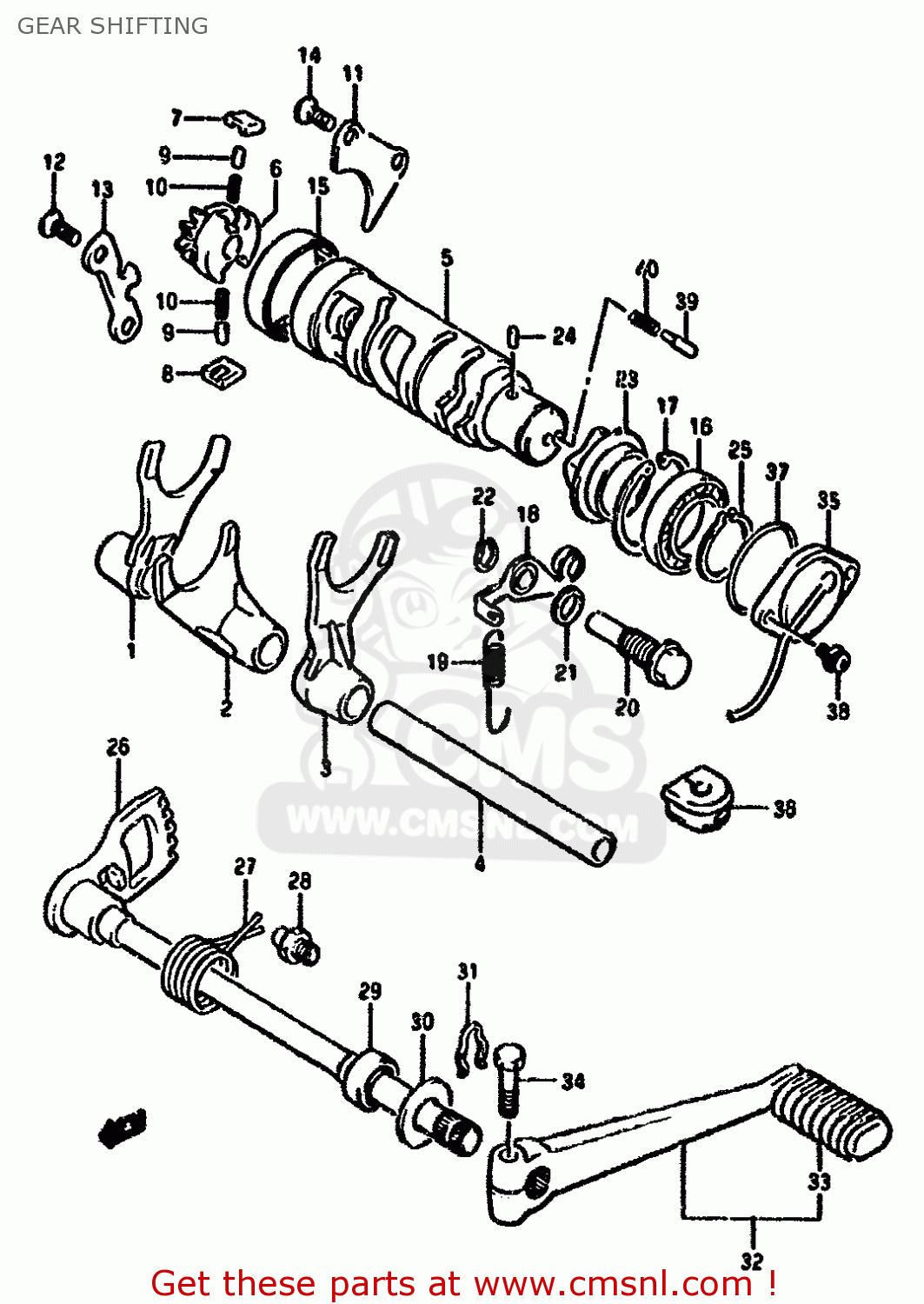

Gear shifting diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
GEAR SHIFTING GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1
2521106B01
ref: 1
FORK,GEAR SHIFT NO.1
€ 83.50
2
2522106B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523106B00
ref: 3
FORK,GEAR SHIFT NO.3
€ 83.50
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531006B02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 7.00
12
0212206128
ref: 12
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206128
ref: 14
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811069050
ref: 16
BALL BEARING
€ 36.00
17
0833141426
ref: 17
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309031
ref: 19
SPRING
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24
0621104063
ref: 24
PIN 4X6
€ 2.00
25
0833131256
ref: 25
CIRCLIP
€ 2.00
26
2551019C00
ref: 26
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
€ 2.00
31-1
0938412001
ref: 31-1
MODEL J/K/L/M/N
SPRING,RETAINER
€ 2.00
31-2
0833131126
ref: 31-2
MODEL P/R
CIRCLIP,12 MM
€ 2.00
32
2560048B10
ref: 32
25600-48B01
LEVER ASSY,GEAR SHIFT
€ 48.00
33
2565249300
ref: 33
RUBBER,PEDAL
€ 5.50
34-1
0110706257
ref: 34-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
34-2
0150006253
ref: 34-2
MODEL R
BOLT
€ 2.50
35
3772048B00
ref: 35
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
36
3388527A01
ref: 36
GROMMET,LEADWIRE
€ 20.50
37
0928036001
ref: 37
O RING(D:2.4,ID:36.5)
€ 4.50
38-1
0913805003
ref: 38-1
MODEL J/K/L/M/N
SCREW
€ 1.50
38-2
0211275166
ref: 38-2
MODEL P/R
SCREW
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
