WIRING HARNESS (MODEL R)

GSX1100F 1993 (P) ZWITZERLAND (E18)

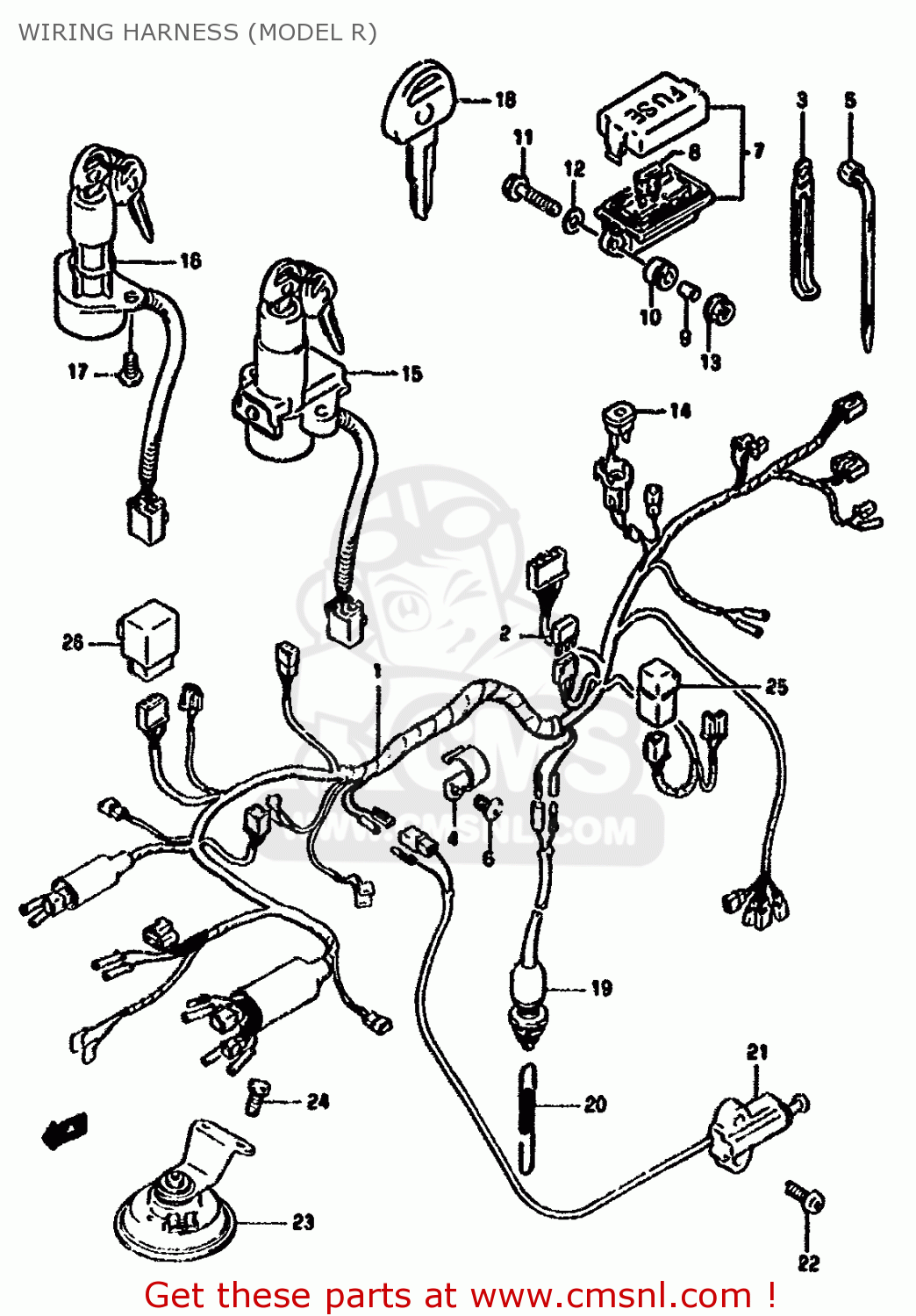

Wiring harness (model r) diagram GSX1100F 1993 (P) ZWITZERLAND (E18)

WIRING HARNESS (MODEL R) GSX1100F 1993 (P) ZWITZERLAND (E18)
WIRING HARNESS (MODEL R) GSX1100F 1993 (P) ZWITZERLAND (E18)
WIRING HARNESS (MODEL R) GSX1100F 1993 (P) ZWITZERLAND (E18)
prices are in EUR
ref
part #
description
quantity
1
3661048B70
ref: 1
HARNESS,WIRING
€ 344.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940406415
ref: 3
CLAMP
€ 3.00
4
0940320301
ref: 4
CLAMP
€ 2.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
6
0314106103
ref: 6
SCREW
€ 1.50
7
3674020C01
ref: 7
BOX ASSY,FUSE
3674020C01
€ 48.00
8
0948110101
ref: 8
FUSE(10A)
0948110101
€ 2.50
9
0918006158
ref: 9
SPACER
0918006158
€ 4.50
10
0932008050
ref: 10
CUSHION 8X18X17.5
€ 0.00
11
0155006353
ref: 11
BOLT
0155006353
€ 2.50
12
0916006056
ref: 12
WASHER(6.5X18X1)
0916006056
€ 2.00
13
0915906024
ref: 13
NUT
0915906024
€ 2.00
14
3675005A00
ref: 14
BREAKER ASSY,CIRCUT
3675005A00
€ 36.50
15
3710048B10
ref: 15
LOCK ASSY,STEERING
3710048B10
€ 146.50
16
3711048B00
ref: 16
E15,E17,E22
SWITCH ASSY,IGNITION
3711048B00
€ 89.50
17
0214206123
ref: 17
E15,E17,E22
SCREW 6X12
0214206123
€ 2.00
18
3714647010
ref: 18
OPT
KEY,BLANK
3714647010
€ 15.00
19
3774045D00
ref: 19
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
20
0944306073
ref: 20
SPRING
0944306073
€ 3.00
21
3784012D00
ref: 21
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
22
0155006203
ref: 22
BOLT
0155006203
€ 2.50
23
3850048B00
ref: 23
HORN ASSEMBLY
€ 71.50
24
0157006163
ref: 24
BOLT
0157006163
€ 2.50
25
3874024B10
ref: 25
RELAY ASSEMBLY
3874024B10
€ 37.50
26
3875048B00
ref: 26
RELAY ASSY,MOTOR CONTROL
3875048B00
€ 90.00
16B
0711006165
ref: 16B
BOLT
0711006165
€ 3.00
16C
0832121067
ref: 16C
WASHER,LOCK
0832121067
€ 2.50
17
3711048B00
ref: 17
E15,E17,E22,E76,E78
SWITCH ASSY,IGNITION
3711048B00
€ 89.50
18
0214206125
ref: 18
E15,E17,E22,E76,E78
SCREW 6X12
0214206125
€ 2.00
19
3714647010
ref: 19
OPT
KEY,BLANK
3714647010
€ 15.00
20
3774004A10
ref: 20
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
21
0944306073
ref: 21
SPRING
0944306073
€ 3.00
22-1
3784048B20
ref: 22-1
MODEL J
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
22-2
3784048B21
ref: 22-2
MODEL K/L/M/N/P
SWITCH ASSEMBLY,SIDE STAND
3784048B21
€ 76.00
23-1
0211206205
ref: 23-1
MODEL J/K/L
SCREW
€ 2.00
23-2
0211216205
ref: 23-2
MODEL M/N/P
SCREW
€ 2.50
24
0832221064
ref: 24
WASHER
0832221064
€ 2.00
25
3850048B00
ref: 25
HORN ASSEMBLY
€ 71.50
26-1
0110706165
ref: 26-1
MODEL J/K/L
BOLT 6X16
0110706165
€ 2.00
26-2
0113706165
ref: 26-2
MODEL M/N/P
BOLT
€ 2.50
27
0832121064
ref: 27
WASHER,LOCK
0832121064
€ 2.00
28
3874024B10
ref: 28
RELAY ASSEMBLY
3874024B10
€ 37.50
29
3875048B00
ref: 29
RELAY ASSY,MOTOR CONTROL
3875048B00
€ 90.00
