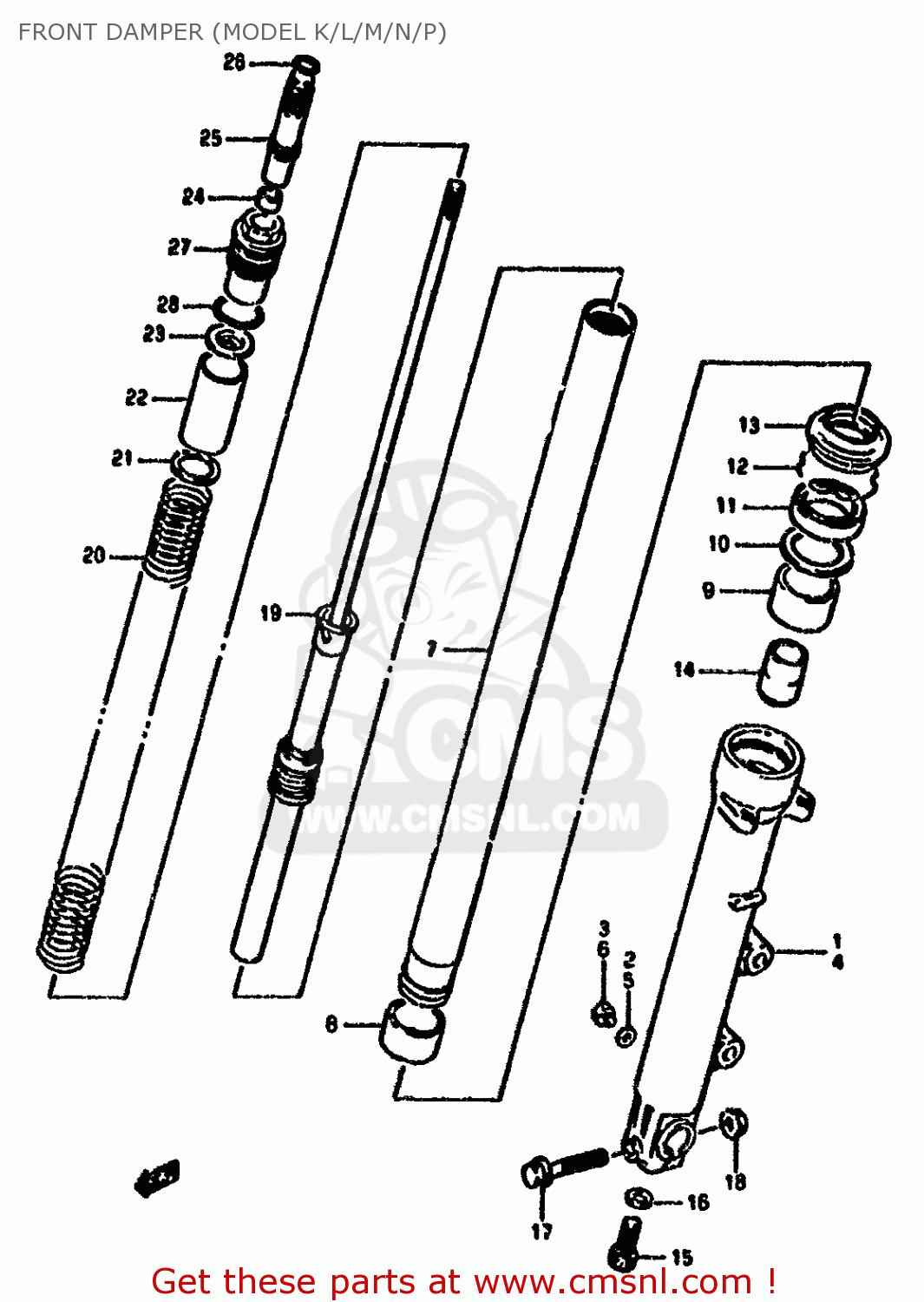

FRONT DAMPER (MODEL K/L/M/N/P)

ref

part #

description

quantity

0

5110348B70
ref: 0
MODEL K/L

DAMPER ASSEMBLY,RIGHT

€ 840.00

0

5110348C00
ref: 0
MODEL M/N/P/R

DAMPER ASSEMBLY,RIGHT

€ 840.00

0

5110448B70
ref: 0
MODEL K/L

DAMPER ASSEMBLY,LEFT

€ 527.50

0

5110448C00
ref: 0
MODEL M/N/P/R

DAMPER ASSEMBLY,LEFT

€ 527.50

1-1

5113048B31
ref: 1-1
MODEL K/L

TUBE,OUTER,RIGHT

€ 469.50

1-2

5113048C00
ref: 1-2
MODEL M/N/P/R

TUBE,OUTER,RIGHT

€ 469.50

2

5118331030
ref: 2
MODEL K/L

GASKET,DRAIN,PLUG (NAS)

€ 4.00

3

0110706088
ref: 3
MODEL K/L

BOLT

€ 2.50

4-1

5114048B31
ref: 4-1
MODEL K/L

TUBE,FORK,LEFT,OUTER

€ 508.50

4-2

5114048C00
ref: 4-2
MODEL M/N/P/R

TUBE,OUTER,LEFT

€ 508.50

5

5118331030
ref: 5
MODEL K/L

GASKET,DRAIN,PLUG (NAS)

€ 4.00

6

0110706088
ref: 6
MODEL K/L

BOLT

€ 2.50

7

5111048B70
ref: 7

TUBE,INNER

€ 346.00

8

5112148B31
ref: 8

BUSH,SLIDE

€ 15.50

9

5115248B31
ref: 9

BUSH,GUIDE

€ 20.00

10

5116838B00
ref: 10

SPACER,SEAL

€ 5.00

11-1

5115312C00
ref: 11-1
MODEL K/L

OIL SEAL,FRONT FORK

€ 15.50

11-2

5115308D00
ref: 11-2
MODEL M/N/P/R

SEAL,OIL

€ 15.50

12

5155638B00
ref: 12

CIRCLIP,FORK OIL SEAL

€ 4.50

13-1

5157138B00
ref: 13-1
MODEL K/L

BOOT

€ 19.50

13-2

5117308D00
ref: 13-2
MODEL M/N/P/R

DUST SEAL,FRONT FORK

€ 19.50

14

5119532C00
ref: 14

PIECE,OIL LOCK

€ 18.50

15

5114748130
ref: 15

BOLT(8X27)

€ 3.50

16

5114836011
ref: 16

GASKET (NAS)

€ 4.00

17

0151708558
ref: 17

BOLT 8X55

€ 3.00

18

0831616088
ref: 18

NUT

€ 2.50

19

5211048B70
ref: 19

DAMPER

€ 228.00

20

5117148B70
ref: 20

SPRING,FR FORK

€ 68.00

21

5119248B31
ref: 21

JOINT,SPRING

€ 3.50

22

5117612C10
ref: 22

COLLAR,SPRING(32.9X34X50)

€ 11.50

23

5117212C10
ref: 23

SEAT,SPRING,UPPER

€ 4.00

24

5182732C00
ref: 24

NUT,ROD

€ 1.50

25

5182848B70
ref: 25

ADJUSTER,SPRING

€ 48.50

26

5183417C00
ref: 26

O RING

€ 3.50

27

5118912C10
ref: 27

BOLT,FORK

€ 31.00

28

5111712C00
ref: 28

O RING

€ 3.00

all assemblies
