TURN SIGNAL LAMP
GSX1100F 1993 (P) ZWITZERLAND (E18)

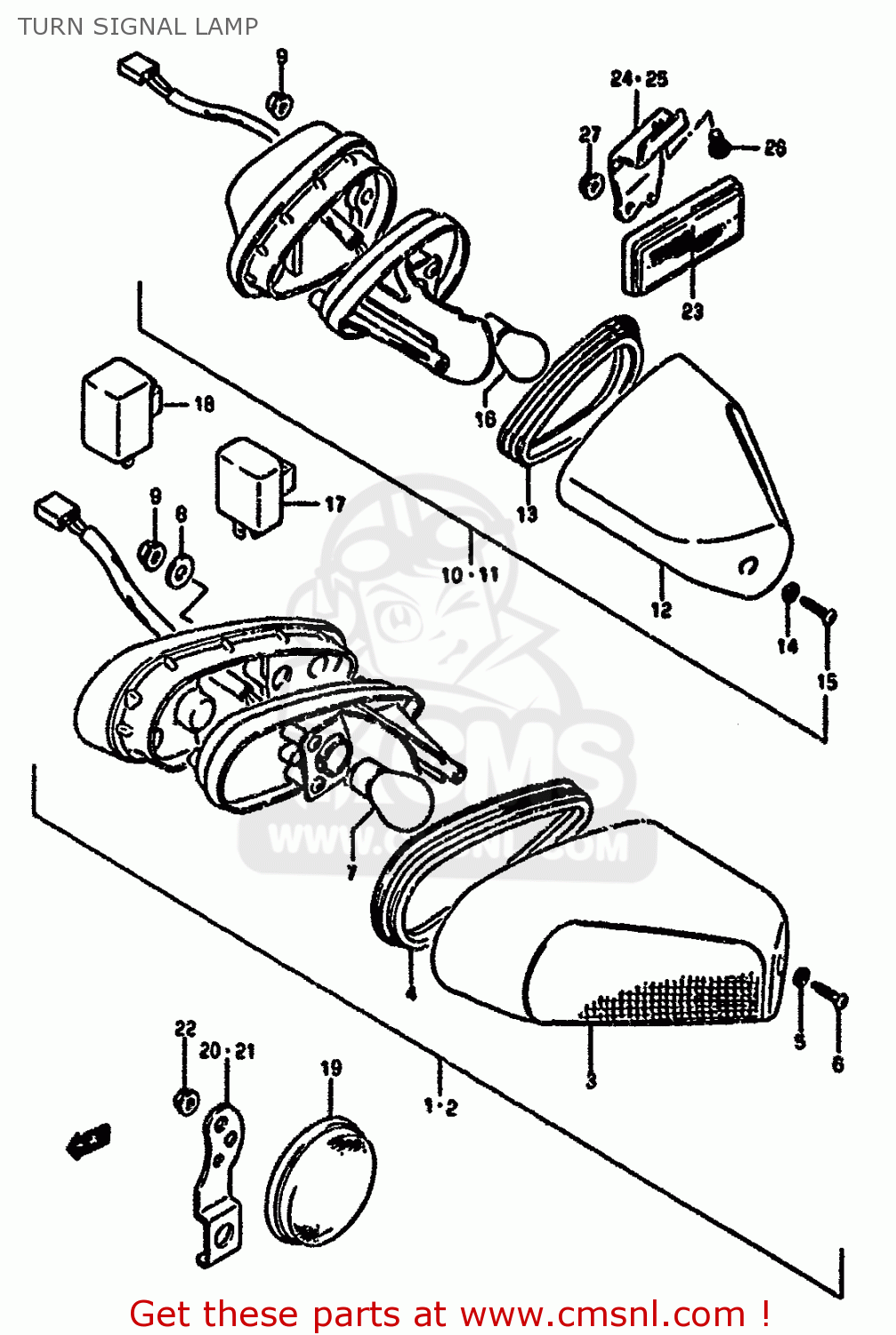

Turn signal lamp diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
TURN SIGNAL LAMP GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1
3560148B21291
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 151.50
2
3560248B21291
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 150.50
3
3561248B20291
ref: 3
LENS
€ 44.50
4
3564348B20
ref: 4
GASKET (NAS)
€ 12.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0321104165
ref: 6
SCREW 4X16
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
0916006039
ref: 8
WASHER (6.5X18X1.6)
€ 2.00
9-1
0831616064
ref: 9-1
MODEL J/K/L/M/N/P
NUT 6MM
€ 2.50
9-2
0831610063
ref: 9-2
MODEL R
NUT
€ 2.50
10-1
3560348B20291
ref: 10-1
LAMP ASSY,REAR TURN RH
€ 117.00
10-2
3560348B40291
ref: 10-2
E16,E78
LAMP ASSY,REAR TURN RH
€ 130.50
11-1
3560448B20291
ref: 11-1
LAMP ASSY,RR T
€ 138.00
11-2
3560448B40291
ref: 11-2
E16,E78
LAMP ASSY,REAR TURN LH
€ 130.50
12
3565248B20291
ref: 12
LENS
€ 65.00
13
3564348B20
ref: 13
GASKET (NAS)
€ 12.50
14
3562743010
ref: 14
GASKET (NAS)
€ 2.00
15
0321104165
ref: 15
SCREW 4X16
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17-1
3861031310
ref: 17-1
MODEL J/K/L/M/N/P
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
17-2
3861045D01
ref: 17-2
MODEL R
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
18
3861045091
ref: 18
E76,MODEL J/K/L/M/N/
RELAY ASSY,TUR
€ 67.50
19
3595014A00
ref: 19
E39,E76,MODEL P/R E1
REFLECTOR,REFLEX FR
€ 15.00
20
3595648B10
ref: 20
E39,E76,MODEL P/R E1
BRACKET,FRONT SIDE,REAR
€ 0.00
21
3595748B10
ref: 21
E39,E76,MODEL P/R E1
BRACKET,FR SIDE RR,L
€ 0.00
22-1
0831616055
ref: 22-1
E39,E76,MODEL P E18
NUT ,5MM
€ 2.00
22-2
0831000053
ref: 22-2
MODEL R E18
NUT
€ 2.50
23
3595043431
ref: 23
E39,E76,MODEL P/R E1
REFLEX REFLECTOR,FR SIDE
€ 12.00
24
3597548B10
ref: 24
E39,E76,MODEL P/R E1
BRACKET,RR SIDE RR,R
€ 3.00
25
3597648B10
ref: 25
E39,E76,MODEL P/R E1
BRACKET,RR SIDE RR,L
€ 3.00
26-1
0214206125
ref: 26-1
E39,E76,MODEL P E18
SCREW 6X12
€ 2.00
26-2
0214206123
ref: 26-2
MODEL R E18
SCREW 6X12
€ 2.00
27-1
0831616055
ref: 27-1
E39,E76,MODEL P E18
NUT ,5MM
€ 2.00
27-2
0831000053
ref: 27-2
MODEL R E18
NUT
€ 2.50
