CRANKCASE COVER
GSX1100F 1993 (P) ZWITZERLAND (E18)

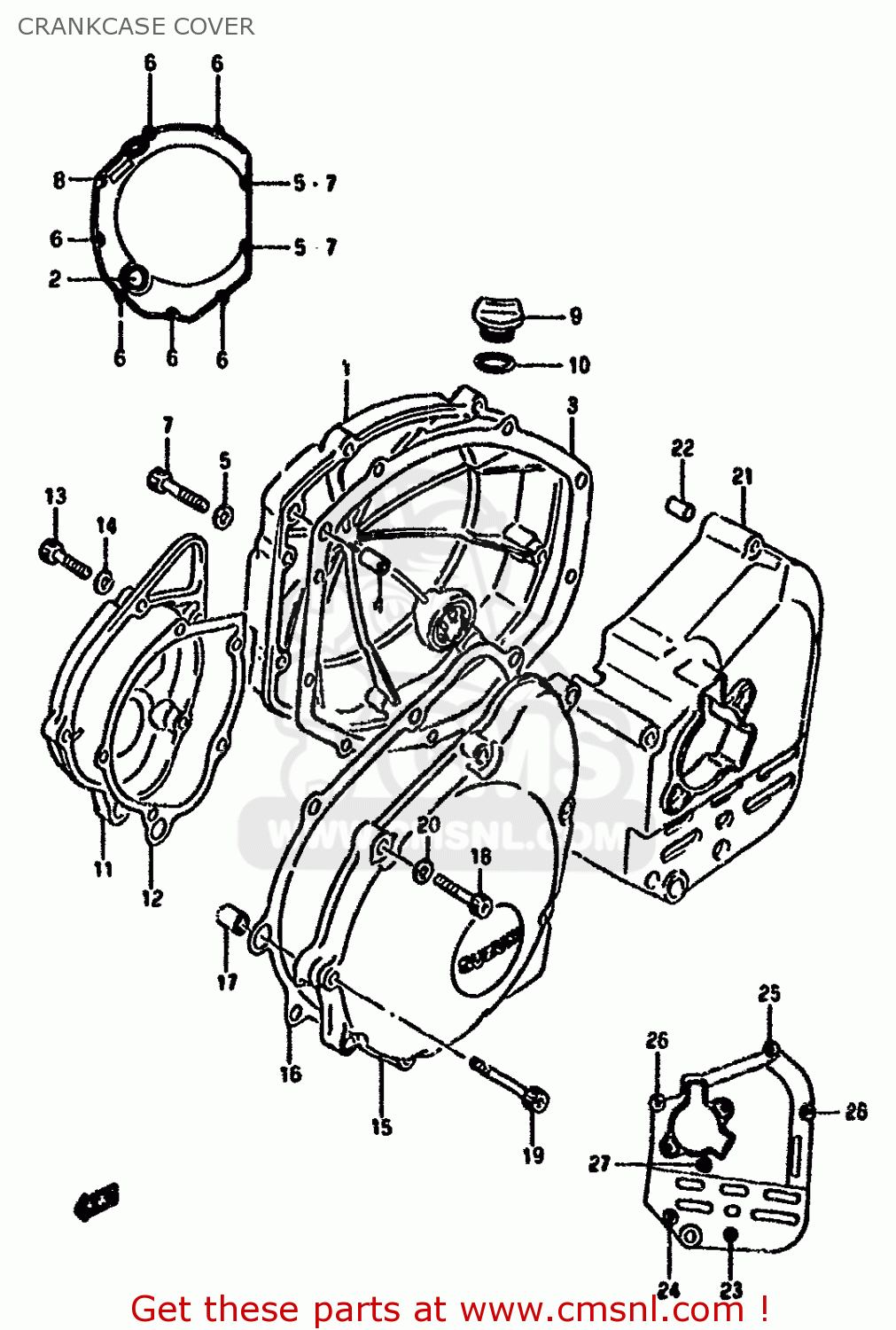

Crankcase cover diagram GSX1100F 1993 (P) ZWITZERLAND (E18)
CRANKCASE COVER GSX1100F 1993 (P) ZWITZERLAND (E18)
×
prices are in EUR
ref
part #
description
quantity
1
1134048B00
ref: 1
COVER,CLUTCH
€ 136.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3-1
1148227A10
ref: 3-1
MODEL J/K/L/M/N
GASKET,CLUTCH COVER (NAS)
€ 18.00
3-2
1148227A20
ref: 3-2
MODEL P/R
GASKET,CL COVER (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6-1
0711006255
ref: 6-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
6-2
0713006253
ref: 6-2
MODEL R
BOLT,CL.COVER
€ 3.00
7-1
0711006305
ref: 7-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
7-2
0713006303
ref: 7-2
MODEL R
BOLT
€ 3.00
8-1
0711006355
ref: 8-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
8-2
0713006353
ref: 8-2
MODEL R
BOLT
€ 3.50
9
0925920015
ref: 9
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
1138148B01
ref: 11
COVER,SIGNAL GENERATOR
€ 72.00
12-1
1149127A10
ref: 12-1
MODEL J/K/L/M/N
GASKET,SIGNAL GENERATOR COVER (NAS)
€ 8.00
12-2
1149127A20
ref: 12-2
MODEL P/R
GASKET,SIGNAL GENERATOR COVER (NAS)
€ 8.00
13-1
0910606059
ref: 13-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
13-2
0910606082
ref: 13-2
MODEL R
BOLT(6X22)
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
€ 2.00
15
1135148B00
ref: 15
COVER,STARTER GEAR
€ 155.50
16-1
1148348B10
ref: 16-1
MODEL J/K/L/M/N
GASKET,STARTER GEAR COVER (NAS)
€ 13.00
16-2
1148348B20
ref: 16-2
MODEL P/R
GASKET,STARTER GEAR COVER (NAS)
€ 13.00
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18-1
0711006255
ref: 18-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
18-2
0713006253
ref: 18-2
MODEL R
BOLT,CL.COVER
€ 3.00
19-1
0711006405
ref: 19-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
19-2
0713006403
ref: 19-2
MODEL R
BOLT
€ 3.50
20
0916806024
ref: 20
GASKET(5.8X11X1.2) (NAS)
€ 2.00
21
1136148B01
ref: 21
COVER,SPROCKET
€ 167.00
22
0421109129
ref: 22
PIN
€ 2.00
23-1
0711006405
ref: 23-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
23-2
0713006403
ref: 23-2
MODEL R
BOLT
€ 3.50
24-1
0711006305
ref: 24-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
24-2
0713006303
ref: 24-2
MODEL R
BOLT
€ 3.00
25-1
0711006505
ref: 25-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
25-2
0713006503
ref: 25-2
MODEL R
BOLT,CL.COVER
€ 3.00
26-1
0711006655
ref: 26-1
MODEL J/K/L/M/N/P
BOLT
€ 4.00
26-2
0713006653
ref: 26-2
MODEL R
BOLT
€ 4.00
27-1
0711006705
ref: 27-1
MODEL J/K/L/M/N/P
BOLT
€ 4.00
27-2
0713006703
ref: 27-2
MODEL R
BOLT
€ 4.00
