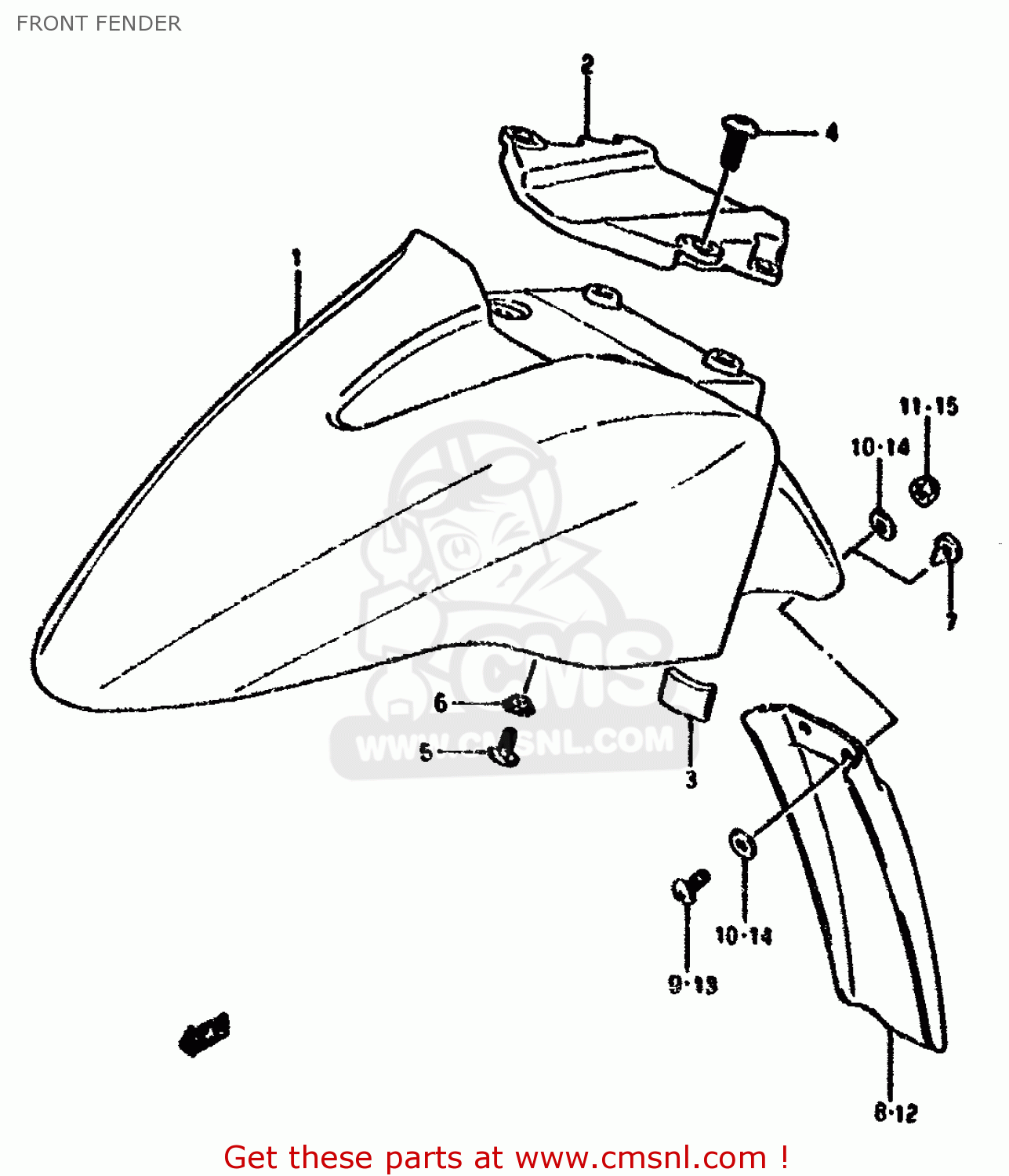

FRONT FENDER

ref

part #

description

quantity

1-1

5311148B0024V
ref: 1-1
MODEL J E4,E78,FOR 2

FENDER,FRONT

€ 188.00

1-2

5311148B0124V
ref: 1-2
MODEL L FOR 24V

FENDER,FRONT

€ 188.00

1-3

5311148B0024D
ref: 1-3
MODEL J E4,E78,FOR 2

FENDER,FRONT

€ 188.00

1-4

5311148B0124D
ref: 1-4
MODEL K FOR 24D

FENDER,FRONT

€ 188.00

1-5

5311148B0023S
ref: 1-5
MODEL J E4,E78,FOR 9

FENDER,FRONT (SILVER)

€ 188.00

1-6

5311148B0033J
ref: 1-6
MODEL K FOR 33J CLEA

FENDER,FRONT

€ 188.00

1-7

5311148B0133J
ref: 1-7
MODEL K FOR 33J MODE

FENDER,FRONT

€ 188.00

1-8

5311148B0013L
ref: 1-8
MODEL K FOR 2VV CLEA

FENDER,FR

€ 188.00

1-9

5311148B0113L
ref: 1-9
MODEL K FOR 2VV

FENDER,FRONT (SILVER)

€ 188.00

1-10

5311148B2024V
ref: 1-10
MODEL J E18,E75,FOR

FENDER,FRONT (BLUE)

€ 213.50

1-11

5311148B2124V
ref: 1-11
MODEL L E15,E18,E24

FENDER,FRONT (BLUE)

€ 213.50

1-12

5311148B2024D
ref: 1-12
MODEL J E18,E75,FOR

FENDER,FRONT (MAROON)

€ 213.50

1-13

5311148B2124D
ref: 1-13
MODEL K E15,E18,E24

FENDER,FRONT (MAROON)

€ 213.50

1-14

5311148B2023S
ref: 1-14
MODEL J E18,E75,FOR

FENDER,FRONT (SILVER)

€ 213.50

1-15

5311148B2033J
ref: 1-15
MODEL K E15,E18,E24

FENDER,FRONT (BLACK)

€ 213.50

1-16

5311148B2133J
ref: 1-16
MODEL K E15,E18,E24

FENDER,FRONT (BLACK)

€ 213.50

1-17

5311148B2013L
ref: 1-17
MODEL K E15,E18,E24

FENDER,FRONT (SILVER)

€ 213.50

1-18

5311148B2113L
ref: 1-18
MODEL K E15,E18,E24

FENDER,FRONT (SILVER)

€ 213.50

1-19

5311148B1024V
ref: 1-19
MODEL J E76 FOR 24V,

FENDER,FRONT

€ 188.00

1-20

5311148B1124V
ref: 1-20
MODEL L E22 FOR 24V

FENDER,FRONT

€ 188.00

1-21

5311148B1024D
ref: 1-21
MODEL J E76 FOR 24D

FENDER,FRONT

€ 188.00

1-22

5311148B1124D
ref: 1-22
MODEL K E22 FOR 24D

FENDER,FRONT

€ 188.00

1-23

5311148B1023S
ref: 1-23
MODEL J E76 FOR 9WV

FENDER,FRONT (SILVER)

€ 188.00

1-24

5311148B1033J
ref: 1-24
MODEL K E22 FOR 33J

FENDER,FRONT

€ 188.00

1-25

5311148B1133J
ref: 1-25
MODEL K E22 FOR 33J

FENDER,FRONT

€ 188.00

1-26

5311148B1013L
ref: 1-26
MODEL K E22 FOR 2VV

FENDER,FR

€ 188.00

1-27

5311148B1113L
ref: 1-27
MODEL K E22 FOR 2VV

FENDER,FRONT (SILVER)

€ 188.00

1-28

5311148B1116B
ref: 1-28
MODEL M FOR E97

FENDER,FRONT

€ 188.00

1-29

5311148B1119A
ref: 1-29
MODEL M FOR 19A MODE

FENDER,FR

€ 206.50

1-30

5311148B2116B
ref: 1-30
MODEL M E15,E18,E24

FENDER,FRONT (SILVER)

€ 213.50

1-31

5311148B2119A
ref: 1-31
MODEL M E15,E18,E24

FENDER,FRONT (RED)

€ 0.00

1-32

5311148B111HU
ref: 1-32
MODEL N,FOR K31

FENDER,FRONT

€ 193.00

1-33

5311148B1120F
ref: 1-33
MODEL N,FOR K32

FENDER,FR

€ 188.00

1-34

5311148B211HU
ref: 1-34
MODEL N/P E15,E18,E2

FENDER,FRONT (PURPLE)

€ 213.50

1-35

5311148B2120F
ref: 1-35
MODEL N/P E15,E18,E2

FENDER,FRONT (MAROON)

€ 213.50

1-36

5311148B1117U
ref: 1-36
MODEL R FOR 3CG

FENDER,FRONT (GRAY)

€ 193.00

1-37

5311148B2117U
ref: 1-37
MODEL R E15,E18 FOR

FENDER,FRONT (GRAY)

€ 213.50

2

5311448B1013L
ref: 2

BRACE,FR FENDER

€ 61.00

3

5314548B00
ref: 3

CUSHION,FR FENDER

€ 1.50

4

0913908007
ref: 4

SCREW(8X16)

€ 4.50

5-1

0214205124
ref: 5-1
MODEL J/K/L/M/N/P

SCREW, FRONT & REAR

€ 1.50

5-2

0214205127
ref: 5-2
MODEL R

SCREW

€ 1.50

6

0916905009
ref: 6

WASHER

€ 3.50

7

0925006012
ref: 7
E24,E75

PLUG(OD:10)

€ 5.00

8

5331148B00
ref: 8
E15,E18,E24,E75

GUARD,FR FENDER MUD

€ 47.50

9

0214205104
ref: 9
E15,E18,E24,E75

SCREW 5X10

€ 2.50

10

0832221055
ref: 10
E15,E18,E24,E75

WASHER,5MM

€ 2.50

11

0831311055
ref: 11
E15,E18,E24,E75

NUT

€ 2.00

12

5331148B00
ref: 12
OPT E16,E21,E25,E34,

GUARD,FR FENDER MUD

€ 47.50

13

0214205104
ref: 13
OPT E16,E21,E25,E34,

SCREW 5X10

€ 2.50

14

0832221055
ref: 14
OPT E16,E21,E25,E34,

WASHER,5MM

€ 2.50

15

0831311055
ref: 15
OPT E16,E21,E25,E34,

NUT

€ 2.00

all assemblies
