AIR CLEANER
GSX550ES 1984 (E)

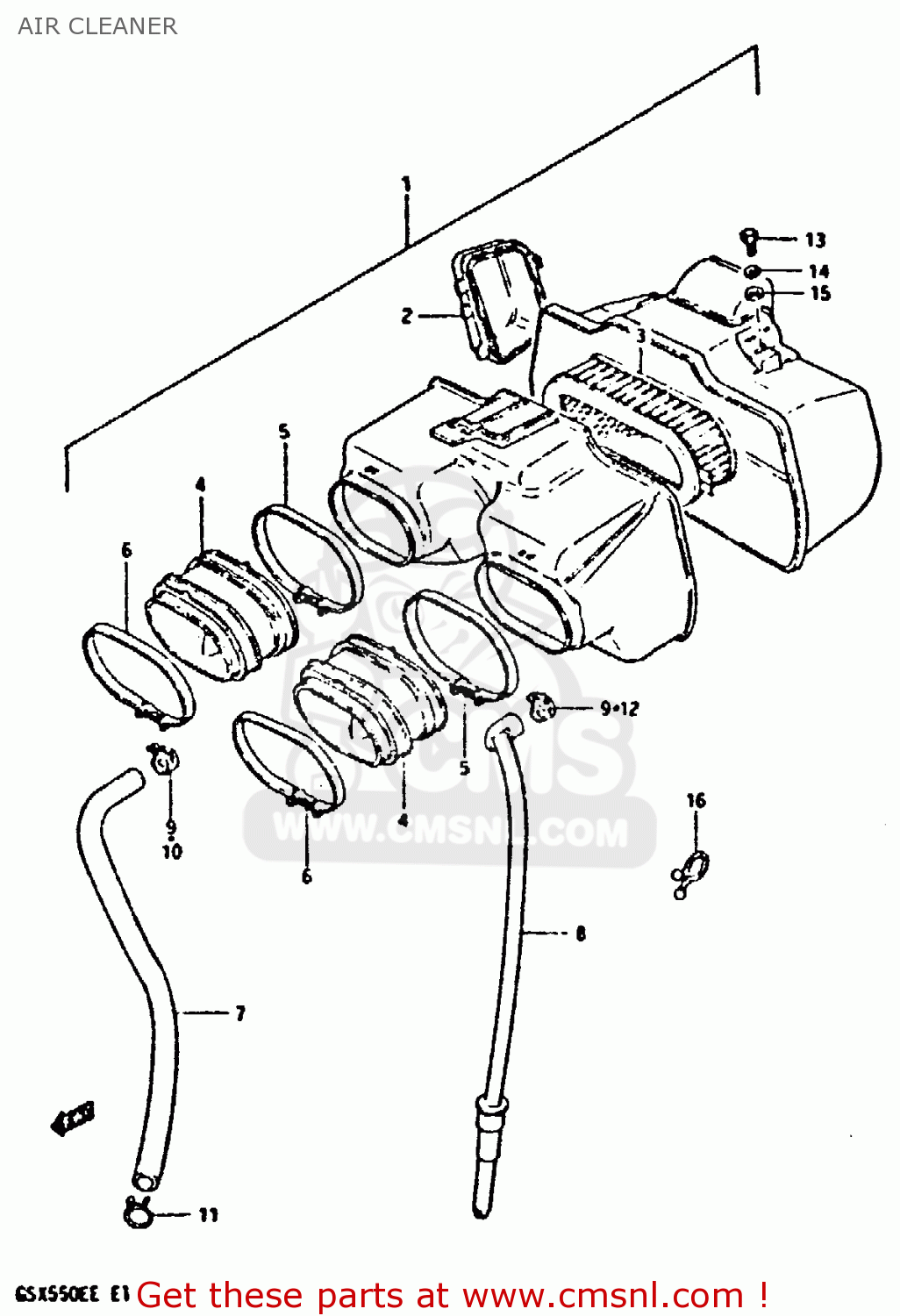

Air cleaner diagram GSX550ES 1984 (E)
AIR CLEANER GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370043411
ref: 1-1
MODEL D
CLEANER ASSEMBLY,AIR
€ 195.00
1-2
1370043412
ref: 1-2
MODEL E
CLEANER ASSEMBLY,AIR
€ 195.00
2
1374043400
ref: 2
CAP,AIR CLEANER
€ 14.50
3
1378043400
ref: 3
FILTER,AIR CLEANER
€ 34.00
4-1
1388143401
ref: 4-1
MODEL D
TUBE,AIR CLEANER OUTLET
€ 27.00
4-2
1388143402
ref: 4-2
MODEL E
TUBE,AIR CLEANER OUTLET
€ 27.00
5-1
1382743400
ref: 5-1
MODEL D
CLAMP
€ 10.00
5-2
1382743401
ref: 5-2
MODEL E
CLAMP,AIR CLEANER
€ 10.00
6-1
1382643400
ref: 6-1
MODEL D
CLAMP
€ 10.00
6-2
1382643401
ref: 6-2
MODEL E
CLAMP,CARBURETOR SIDE
€ 10.00
7
1385343400
ref: 7
TUBE,BREATHER
€ 13.50
8-1
1387043500
ref: 8-1
MODEL D
DRAIN TUBE
€ 23.50
8-2
1387021351
ref: 8-2
MODEL E
DRAIN TUBE
€ 23.50
9
1382443400
ref: 9
MODEL D
CLIP
€ 2.00
10
1382443400
ref: 10
MODEL E
CLIP
€ 2.00
11
1382800020
ref: 11
CLIP,BREATHER TUBE
€ 2.00
12
1382543400
ref: 12
MODEL E
CLIP
€ 2.50
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0832121068
ref: 14
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
WASHER
€ 2.00
16
0940800021
ref: 16
CLIP(ID:16)
€ 1.50
