SEAT (MODEL E)
GSX550ES 1984 (E)

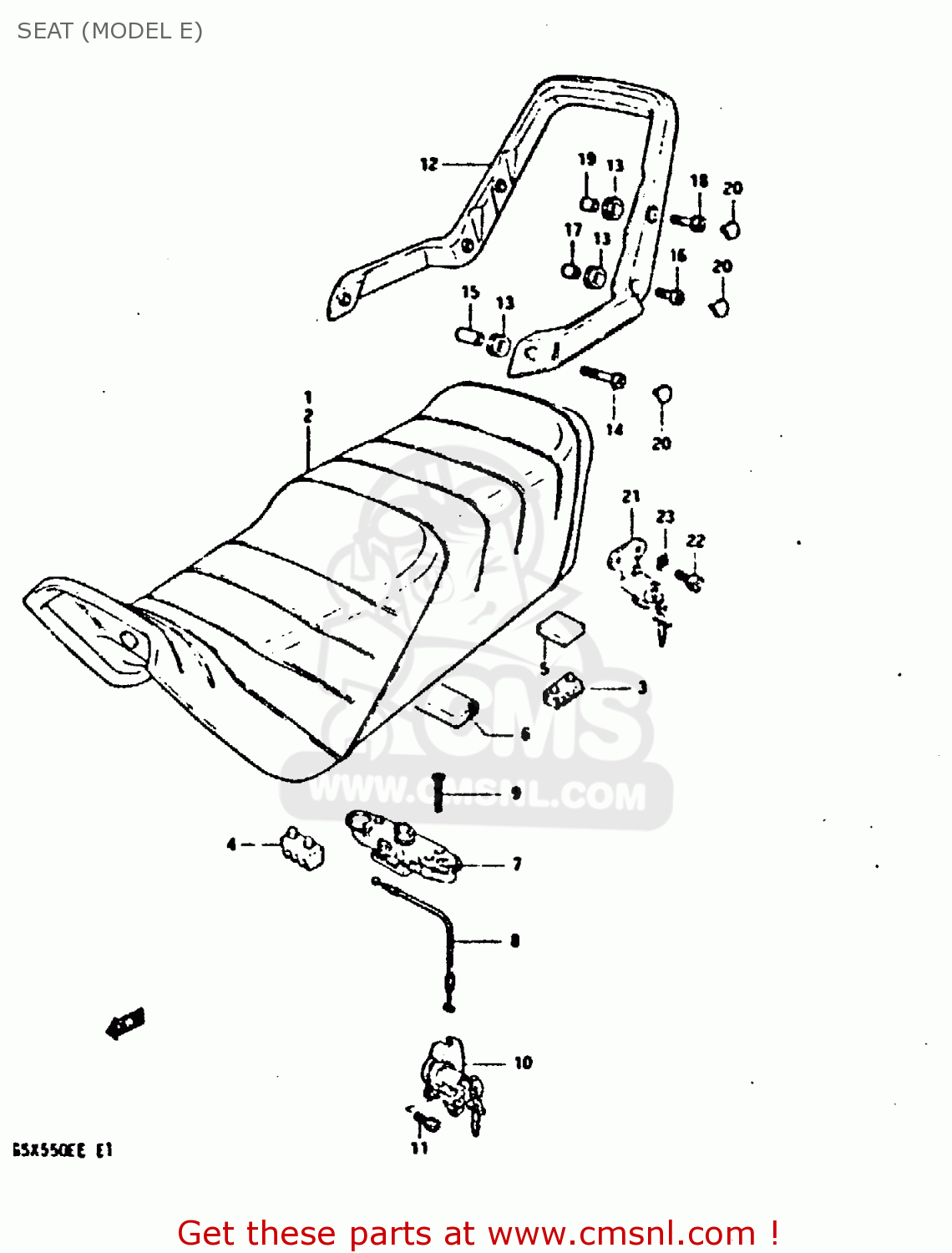

Seat (model e) diagram GSX550ES 1984 (E)
SEAT (MODEL E) GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004340148H
ref: 1-1
FOR 07P, 13Z, 86S, 9
SEAT ASSEMBLY
€ 245.50
1-2
451004340153L
ref: 1-2
FOR 91J
SEAT ASSEMBLY
€ 245.50
2-1
NOTUSED
ref: 2-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4514945330
ref: 4
CUSHION,SUPPORT(50X25X32)
€ 2.00
5
4521343400
ref: 5
CUSHION,STRIKER
€ 3.50
6
9498229400
ref: 6
CUSHION(30X60X10)
€ 1.50
7
4522013600
ref: 7
LOCK ASSEMBLY,SEAT STRIKER
€ 47.00
8
4528043400
ref: 8
CABLE,SEAT LOCK
€ 13.00
9
0212206306
ref: 9
SCREW
€ 2.00
10
9570043400KEY
ref: 10
LOCK ASSEMBLY,SEAT & HELMET
€ 57.00
11
0910606036
ref: 11
BOLT
€ 2.50
12
4621043400
ref: 12
HANDLE,PILLION RIDER
€ 91.50
13
4552243401
ref: 13
GROMMET,PILION RIDER HANDLE
€ 4.00
14
0910608037
ref: 14
BOLT
€ 3.50
15
4621943400
ref: 15
SPACER,PILLION RIDER HOLDER
€ 2.50
16
0910608042
ref: 16
BOLT
€ 3.00
17
4621943420
ref: 17
SPACER,PILLION RIDER HOLDER
€ 3.00
18
0910608039
ref: 18
BOLT
€ 3.50
19
4621943411
ref: 19
SPACER,PILLION RIDER HOLDER
€ 3.50
20
0925006008
ref: 20
CAP(OD:10)
€ 3.00
21
9570043410KEY
ref: 21
LOCK ASSEMBLY,HELMET
€ 35.00
22
0910606036
ref: 22
BOLT
€ 2.50
23
0832121065
ref: 23
LOCK WASHER
€ 2.00
