STEERING STEM (GSX550ED/EE)
GSX550ES 1984 (E)

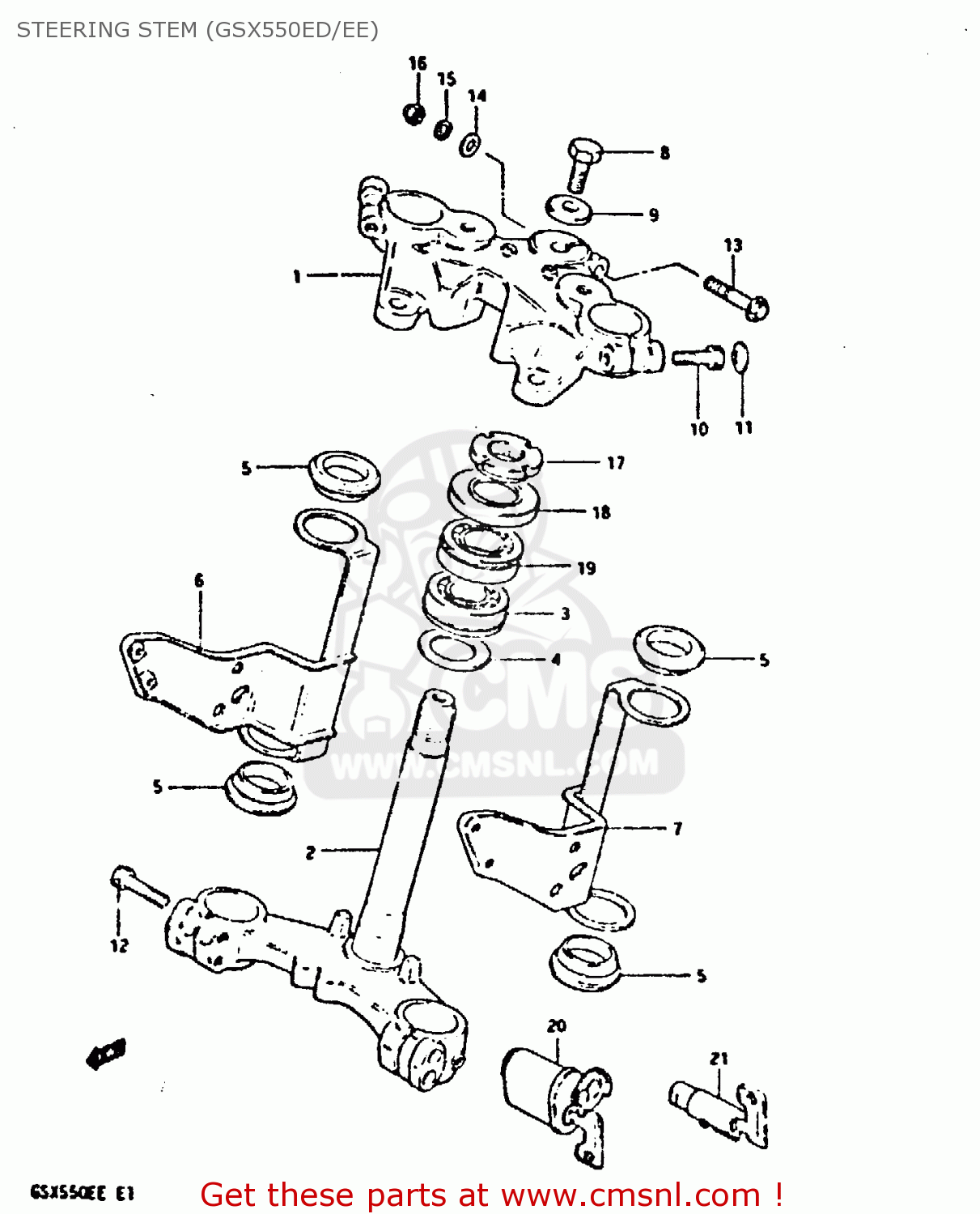

Steering stem (gsx550ed/ee) diagram GSX550ES 1984 (E)
STEERING STEM (GSX550ED/EE) GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
513114340015T
ref: 1
HEAD,STEERING STEM
€ 134.00
2-1
514104340015T
ref: 2-1
STEM,STEERING
€ 217.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5155349000
ref: 5
CUSHION,HEADLAMP BRACKET
€ 4.50
6
515304340115T
ref: 6
BRACKET,HEADLAMP,RIGHT
€ 37.00
7
515404340115T
ref: 7
BRACKET,HEADLAMP,LEFT
€ 39.00
8
5135349300A
ref: 8
NUT,STEM HEAD
€ 11.50
9
5135649300A
ref: 9
WASHER,STEERING STEM B
€ 4.00
10
0711210355
ref: 10
BOLT
€ 3.50
11
0925008010
ref: 11
CAP(OD:20)
€ 2.50
12
0711008305
ref: 12
BOLT, REAR (8X30)
€ 3.00
13
0151708504
ref: 13
BOLT, UPPER
€ 2.50
14
0832211085
ref: 14
WASHER,8.5X16X
€ 1.50
15
0832121085
ref: 15
LOCK WASHER
€ 2.50
16
0831311085
ref: 16
NUT,M8X1.25X12
€ 2.00
17
5163134200
ref: 17
NUT,STEERING STEM
€ 23.00
18
5164340502
ref: 18
DUST SEAL,STEERING UPR
€ 8.00
19
0926525008
ref: 19
TAPER,ROLLER BEARING
€ 48.50
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
NOTUSED
ref: 21
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
