FRAME COVER (GSX550ESD)
GSX550ES 1984 (E)

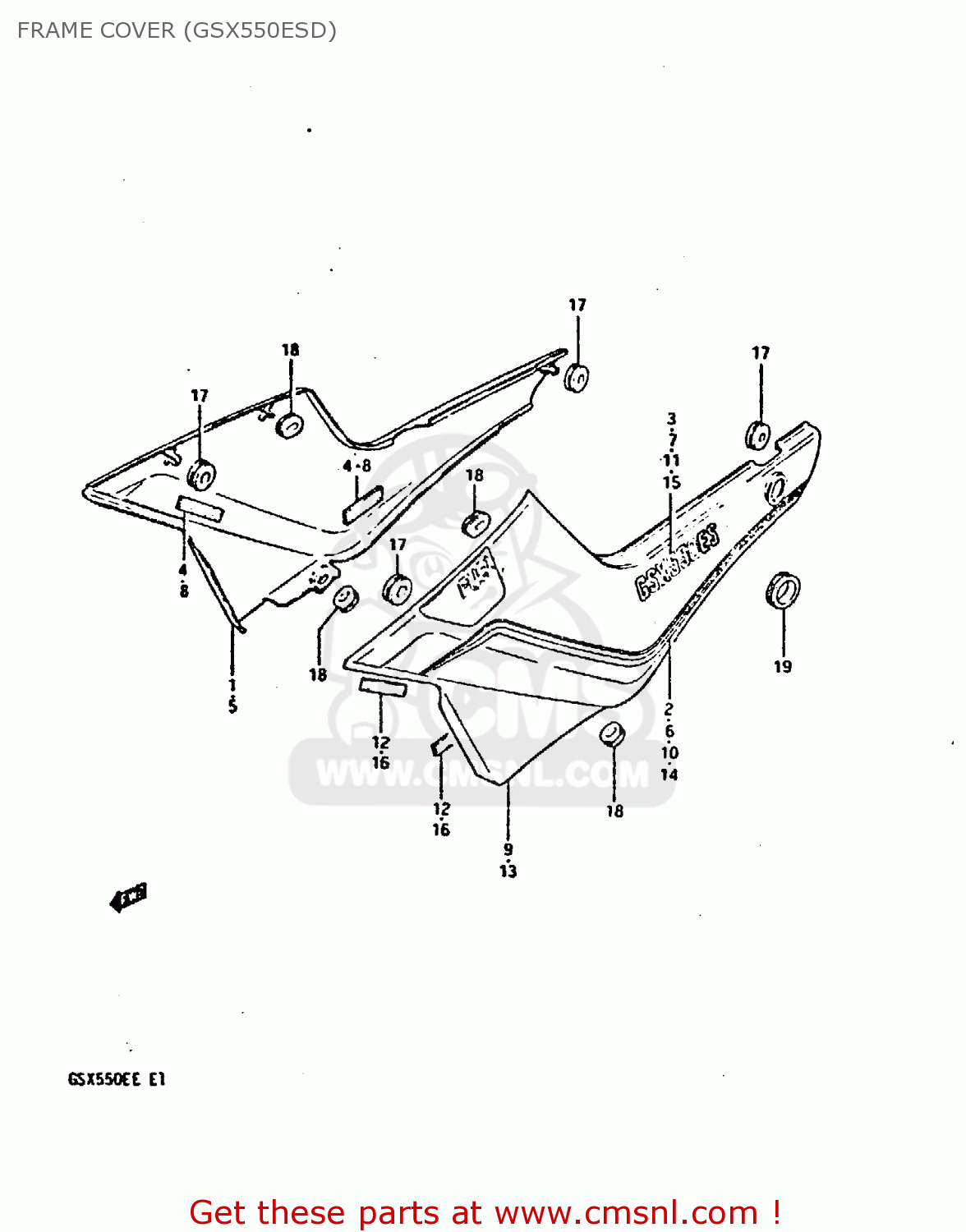

Frame cover (gsx550esd) diagram GSX550ES 1984 (E)
FRAME COVER (GSX550ESD) GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
471004382088D
ref: 1
COVER SET, FRAME RH
€ 64.50
2
681304340093L
ref: 2
TAPE SET,FRAME COVER
€ 15.50
3
681314341073F
ref: 3
EMBLEM
€ 3.50
4
4711349200
ref: 4
RUBBER,FRAME COVER
€ 2.50
5
471004382088M
ref: 5
COVER SET, FRAME RH
€ 64.50
6
681304340093M
ref: 6
TAPE SET,FRAME COVER
€ 0.00
7
681314341080U
ref: 7
EMBLEM
€ 3.00
8
4711349200
ref: 8
RUBBER,FRAME COVER
€ 2.50
9
472004382088D
ref: 9
COVER SET, FRAME LH
€ 64.50
10
681404340093L
ref: 10
TAPE SET,FRAME COVER
€ 0.00
11
681314341073F
ref: 11
EMBLEM
€ 3.50
12
4711349200
ref: 12
RUBBER,FRAME COVER
€ 2.50
13
472004382088M
ref: 13
COVER SET, FRAME LH
€ 64.50
14
681404340093M
ref: 14
TAPE SET,FRAME COVER
€ 0.00
15
681314341080U
ref: 15
EMBLEM
€ 3.00
16
4711349200
ref: 16
RUBBER,FRAME COVER
€ 2.50
17
0932008018
ref: 17
CUSHION
€ 4.00
18
0932005006
ref: 18
CUSHION
€ 4.00
19
4552204700
ref: 19
GROMMET,SEAT LOCK HOLE
€ 4.00
