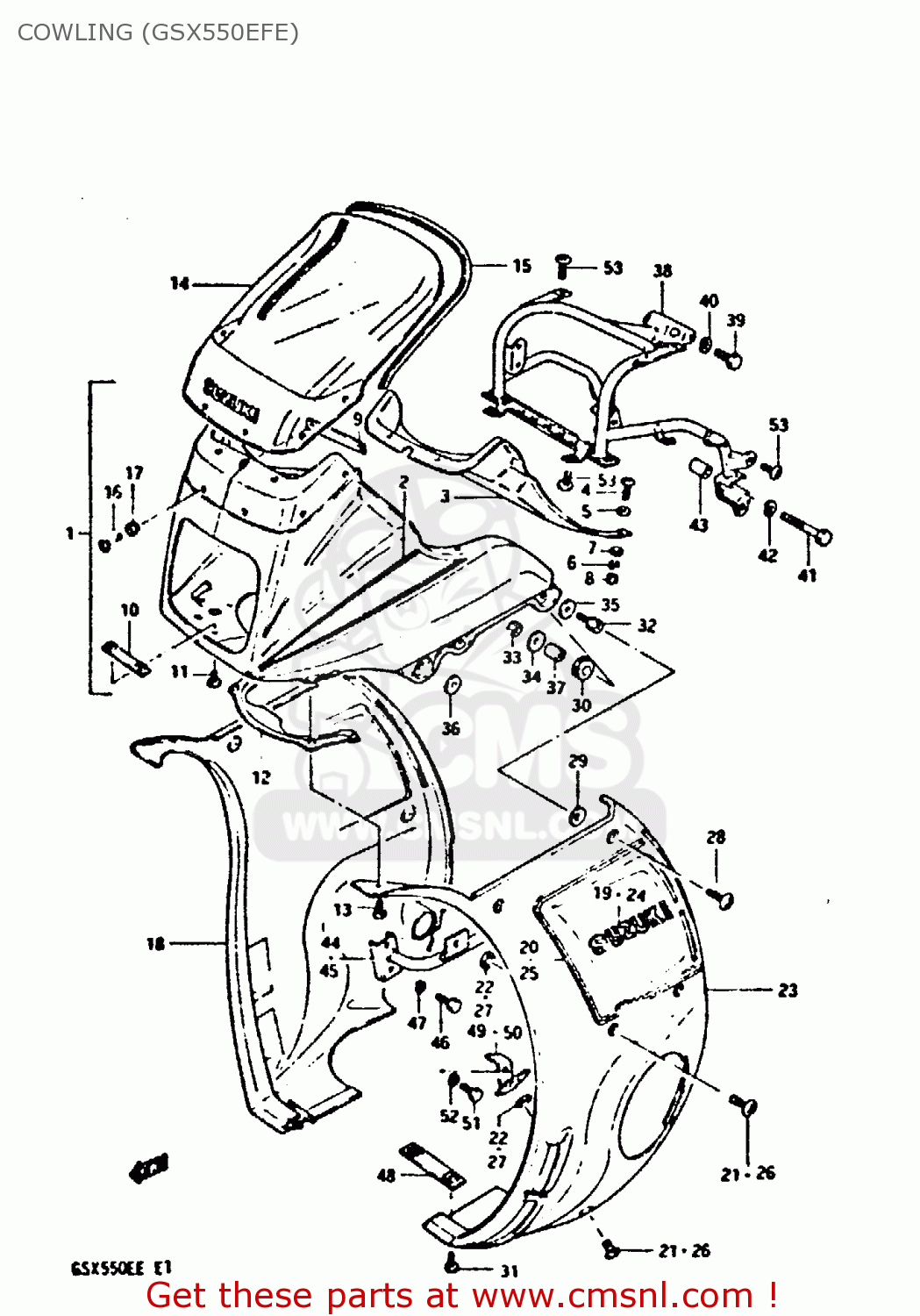

COWLING (GSX550EFE)

ref

part #

description

quantity

1-1

944004345004Y
ref: 1-1

COWLING ASSY (BLUE)

€ 960.50

1-2

944004345013Z
ref: 1-2

COWLING ASSY (BLACK)

€ 960.50

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

NOTUSED
ref: 1-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-6

NOTUSED
ref: 1-6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

68190434107AL
ref: 2-1
FOR 04Y

TAPE SET,COWLING

€ 30.50

2-2

68190434107AN
ref: 2-2
FOR 13Z

TAPE SET

€ 26.50

3

9442243400
ref: 3

PANEL,COWLING,UPPER

€ 16.50

4

0214205165
ref: 4

SCREW

€ 2.50

5

0832221055
ref: 5

WASHER,5MM

€ 2.50

6

0832121055
ref: 6

WASHER,LOCK

€ 3.00

7

0832221055
ref: 7

WASHER,5MM

€ 2.50

8

0831012055
ref: 8

NUT ,5MM

€ 2.50

9

9441643400
ref: 9

BRACKET,COWLING,UPPER

€ 3.50

10

9442043400
ref: 10

BRACKET,COWLING,LOWER

€ 2.50

11

0214205127
ref: 11

SCREW

€ 1.50

12

9448043410
ref: 12

COVER,COWLING,LOWER

€ 19.00

13

0214205127
ref: 13

SCREW

€ 1.50

14-1

9461143420
ref: 14-1

WINDOW

€ 281.50

14-2

NOTUSED
ref: 14-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15-1

9463143400
ref: 15-1

MOLDING,LOWER

€ 18.00

15-2

NOTUSED
ref: 15-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0214205165
ref: 16

SCREW

€ 2.50

17

0932005008
ref: 17

CUSHION

€ 5.00

18-1

944304341091J
ref: 18-1
FOR 04Y

COVER,COWLING,RIGHT

€ 148.00

18-2

944304341086S
ref: 18-2
FOR 13Z

COVER, RH (BLACK/RED)

€ 148.00

19-1

681113240169L
ref: 19-1
FOR 04Y

EMBLEM,FUEL TANK

€ 10.50

19-2

681113240178G
ref: 19-2
FOR 13Z

EMBLEM

€ 0.00

20-1

68680434107AL
ref: 20-1
FOR 04Y

TAPE SET

€ 36.00

20-2

68680434107AN
ref: 20-2
FOR 13Z

TAPE SET

€ 0.00

21

9449143400
ref: 21

FASTENER,COWL SIDE COVER

€ 8.00

22

0833211075
ref: 22

E-RING

€ 2.00

23-1

944404341091J
ref: 23-1
FOR 04Y

COVER,COWLING,LEFT

€ 175.50

23-2

944404341086S
ref: 23-2
FOR 13Z

COVER, LH (BLACK/RED)

€ 175.50

24-1

681113240169L
ref: 24-1
FOR 04Y

EMBLEM,FUEL TANK

€ 10.50

24-2

68111324017BG
ref: 24-2
FOR 13Z

EMBLEM

€ 12.50

25-1

68690434107AL
ref: 25-1
FOR 04Y

TAPE SET

€ 36.00

25-2

68690434107AN
ref: 25-2
FOR 13Z

TAPE SET

€ 0.00

26

9449143400
ref: 26

FASTENER,COWL SIDE COVER

€ 8.00

27

0833211075
ref: 27

E-RING

€ 2.00

28

9443943400
ref: 28

SCREW,COWLING SIDE COVER

€ 3.50

29

0915206001
ref: 29

NUT

€ 1.50

30

0932008018
ref: 30

CUSHION

€ 4.00

31

0214206127
ref: 31

SCREW 6X12

€ 1.50

32

9447543400
ref: 32

BOSS,COWLING BODY,SIDE

€ 8.50

33

0831011065
ref: 33

NUT

€ 2.00

34

0916006004
ref: 34

WASHER (6.5X24X1.6)

€ 1.50

35

0916006081
ref: 35

WASHER, QUTER, REAR

€ 2.00

36

0916006028
ref: 36

WASHER(6.5X18X1)

€ 1.50

37

0918006027
ref: 37

SPACER (6.3X9.1X6.7)

€ 3.00

38

9451043400
ref: 38

BRACE,COWLING

€ 112.50

39

0110708165
ref: 39

BOLT

€ 2.00

40

0832121085
ref: 40

LOCK WASHER

€ 2.50

41

0110708455
ref: 41

BOLT

€ 2.50

42

0832121085
ref: 42

LOCK WASHER

€ 2.50

43

0918008057
ref: 43

SPACER (8.2X12.5X23.5)

€ 2.00

44

9452043400
ref: 44

BRACE,COWLING SIDE,RIGHT

€ 33.50

45

9456043400
ref: 45

BRACE,COWLING SIDE,LEFT

€ 33.50

46

0110706125
ref: 46

BOLT

€ 2.00

47

0832121065
ref: 47

LOCK WASHER

€ 2.00

48

9457043400
ref: 48

BRACE,COWLING,LOWER,FRONT

€ 3.50

49

9458043400
ref: 49

BRACKET,COWLING SIDE,RIGHT

€ 7.00

50

9459043400
ref: 50

BRACKET,COWLING SIDE,LEFT

€ 7.50

51

0110706125
ref: 51

BOLT

€ 2.00

52

0832121065
ref: 52

LOCK WASHER

€ 2.00

53

0214206125
ref: 53

SCREW 6X12

€ 2.00
