CYLINDER
GSX550ES 1984 (E)

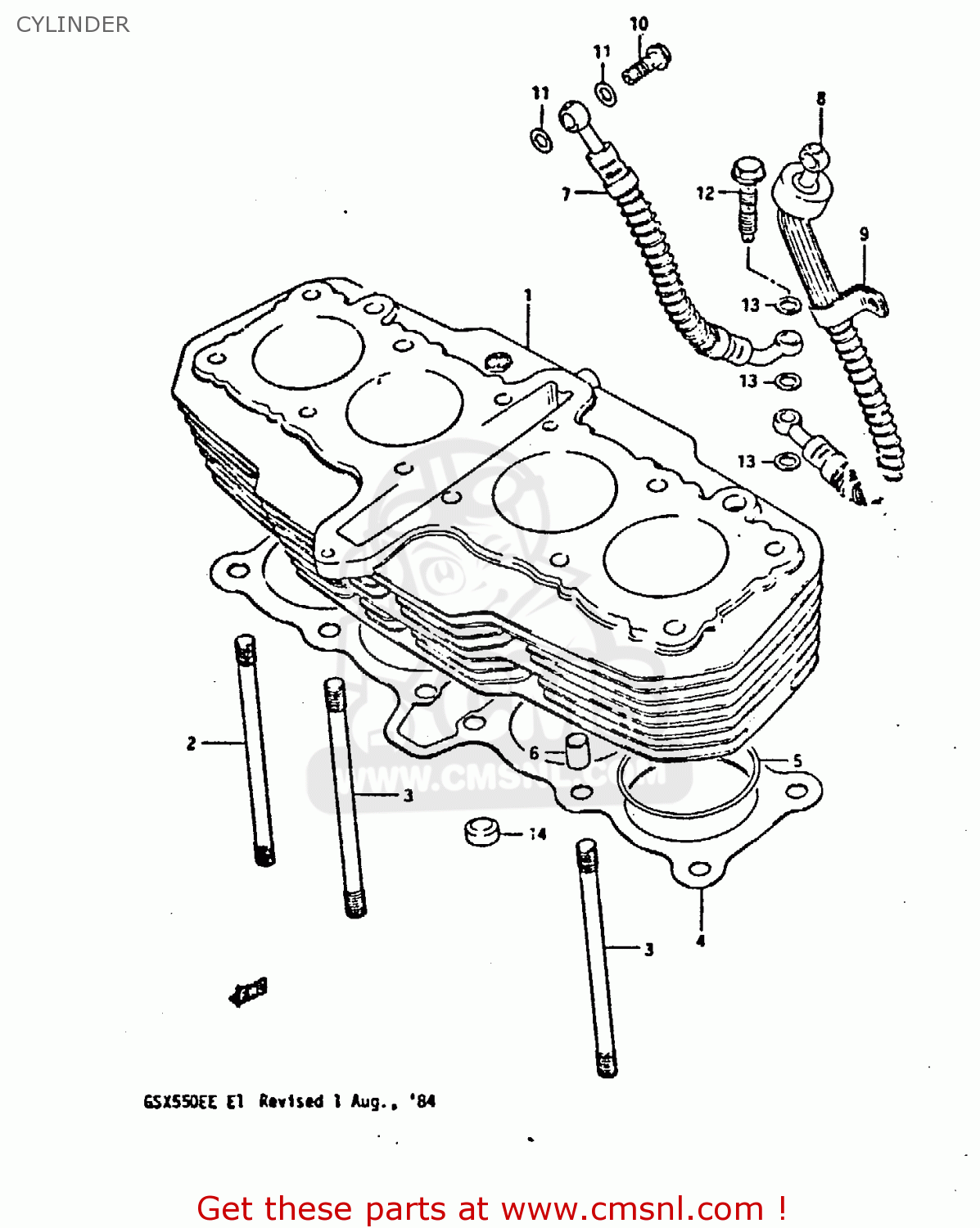

Cylinder diagram GSX550ES 1984 (E)
CYLINDER GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
1121043403
ref: 1
CYLINDER
€ 818.00
2
0910808058
ref: 2
STUD
€ 6.00
3
0910808129
ref: 3
STUD
€ 13.00
4
1124143402
ref: 4
FROM 11241-43401
GASKET,CYLINDER (MCA)
€ 20.00
5
0928061001
ref: 5
O RING(D:2,ID:61)
€ 4.00
6
0920611003
ref: 6
PIN
€ 2.00
7
1128143404
ref: 7
HOSE,OIL CRANKCASE,R
€ 87.00
8
1128343404
ref: 8
FROM 11282-43404
HOSE,OIL CRANKCASE,L
€ 77.50
9
1128443400
ref: 9
CLAMP,OIL HOSE CRANKCASE
€ 4.00
10
0936008008
ref: 10
BOLT UNION
€ 4.00
11
0916808008
ref: 11
GASKET 8.2X14X1 (NAS)
€ 1.00
12
1128531301
ref: 12
BOLT,OIL PIPE
€ 12.50
13
0916110009
ref: 13
FROM 09161-10005
WASHER(10X15X1.5)
€ 2.00
14
1125202300
ref: 14
PAD,CYLINDER HEAD
€ 6.50
