FRONT DAMPER
GSX550ES 1984 (E)

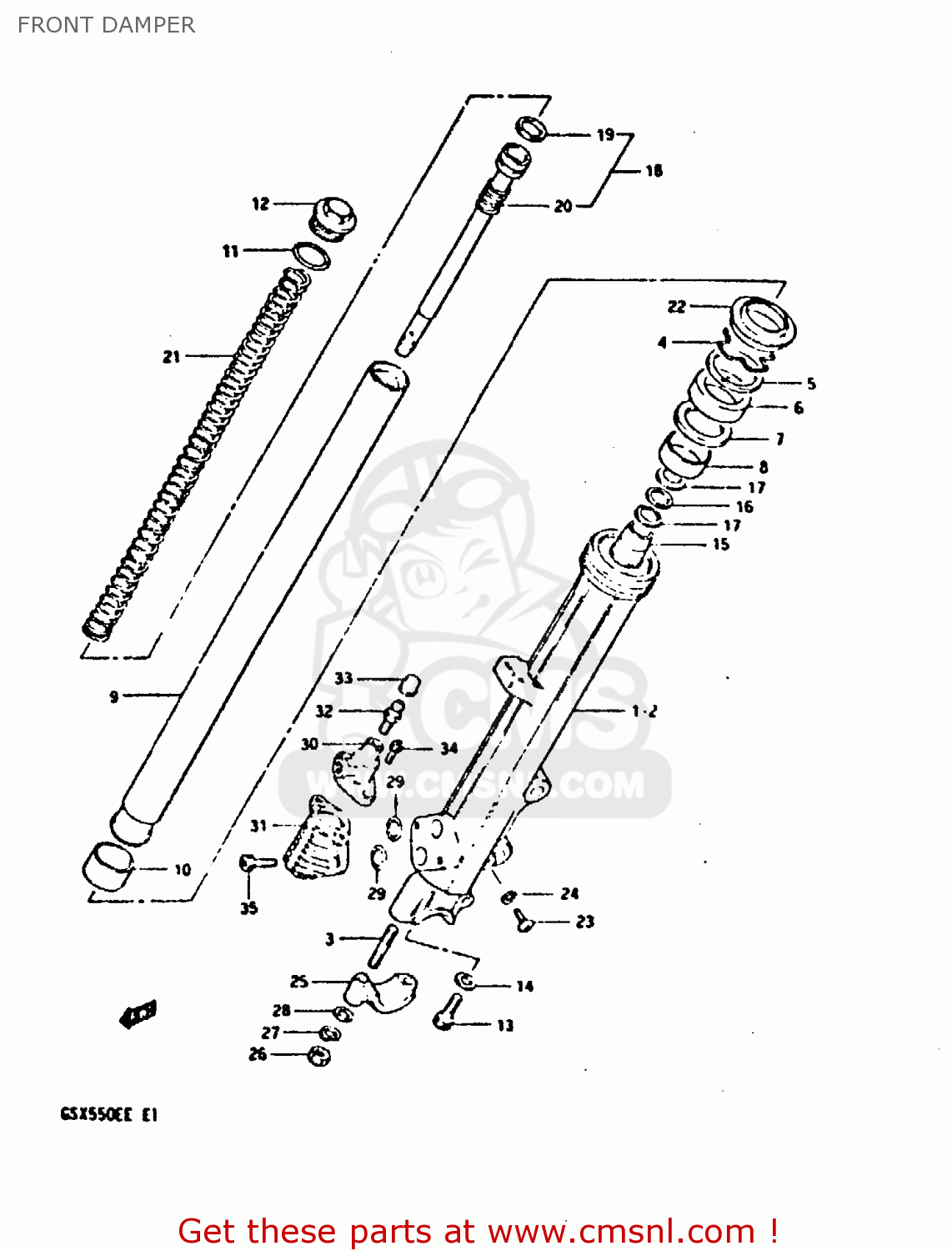

Front damper diagram GSX550ES 1984 (E)
FRONT DAMPER GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
0
5110343410
ref: 0
GSX550ED/EE/ESD
DAMPER ASSY, RH
€ 0.00
0
5110343445
ref: 0
GSX550ESE/EFE
DAMPER ASSY, RH
€ 0.00
0
5110443410
ref: 0
GSX550ED/EE/ESD
DAMPER ASSY, LH
€ 0.00
0
5110443445
ref: 0
GSX550ESE/EFE
DAMPER ASSY, LH
€ 0.00
1
511304340015T
ref: 1
TUBE,OUTER,RIGHT
€ 296.50
2
511404340015T
ref: 2
TUBE,OUTER,LEFT
€ 234.50
3
0141108308
ref: 3
STUD 8X30
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
€ 7.00
6
5115349001
ref: 6
OIL SEAL,FRONT FORK
€ 16.50
7
5115849500
ref: 7
WASHER
€ 4.00
8
5116749510
ref: 8
METAL,SLIDE
€ 10.50
9-1
5111043410
ref: 9-1
GSX550ED/EE/ESD
INNER TUBE
€ 217.50
9-2
5111043430
ref: 9-2
GSX550ESE/EFE
TUBE,FORK INNER
€ 264.00
10
5112149510
ref: 10
METAL,FR FORK PISTON
€ 17.50
11
5111738260
ref: 11
O RING
€ 2.50
12
5135143410
ref: 12
CAP
€ 26.50
13
5114716510
ref: 13
BOLT,FORK CYLINDER(10X25)
€ 3.50
14
5114841310
ref: 14
GASKET (NAS)
€ 2.50
15
5119545420
ref: 15
PIECE,OIL LOCK
€ 15.50
16
5112345420
ref: 16
WASHER
€ 3.50
17
5112545420
ref: 17
SPRING,LEAF
€ 3.50
18
5114643410
ref: 18
CYLINDER,FRONT FORK
€ 39.00
19
5119643400
ref: 19
RING,PISTON
€ 7.00
20
5117743400
ref: 20
SPRING,REBOUND
€ 0.00
21
5117143410
ref: 21
SPRING
€ 41.00
22
5117343400
ref: 22
SEAL,DUST
€ 14.00
23
0211204085
ref: 23
SCREW
€ 2.00
24
5118303010
ref: 24
GASKET,DRAIN,PLUG (NAS)
€ 3.00
25
511324340015T
ref: 25
HOLDER,AXLE
€ 24.00
26
0831011085
ref: 26
NUT
€ 1.50
27
0832121084
ref: 27
WASHER,LOCK,8.
€ 2.50
28
0832211084
ref: 28
WASHER
€ 1.50
29
5179944130
ref: 29
O RING
€ 5.00
30
5179043400
ref: 30
PLUNGER SET
€ 122.00
31
5177043400
ref: 31
PDF ASSEMBLY
€ 134.50
32
5177844130
ref: 32
BREATHER,AIR
€ 12.50
33
5177944130
ref: 33
CAP,BREADER
€ 6.00
34
0711205125
ref: 34
BOLT
€ 2.00
35
0711006165
ref: 35
BOLT
€ 3.00
