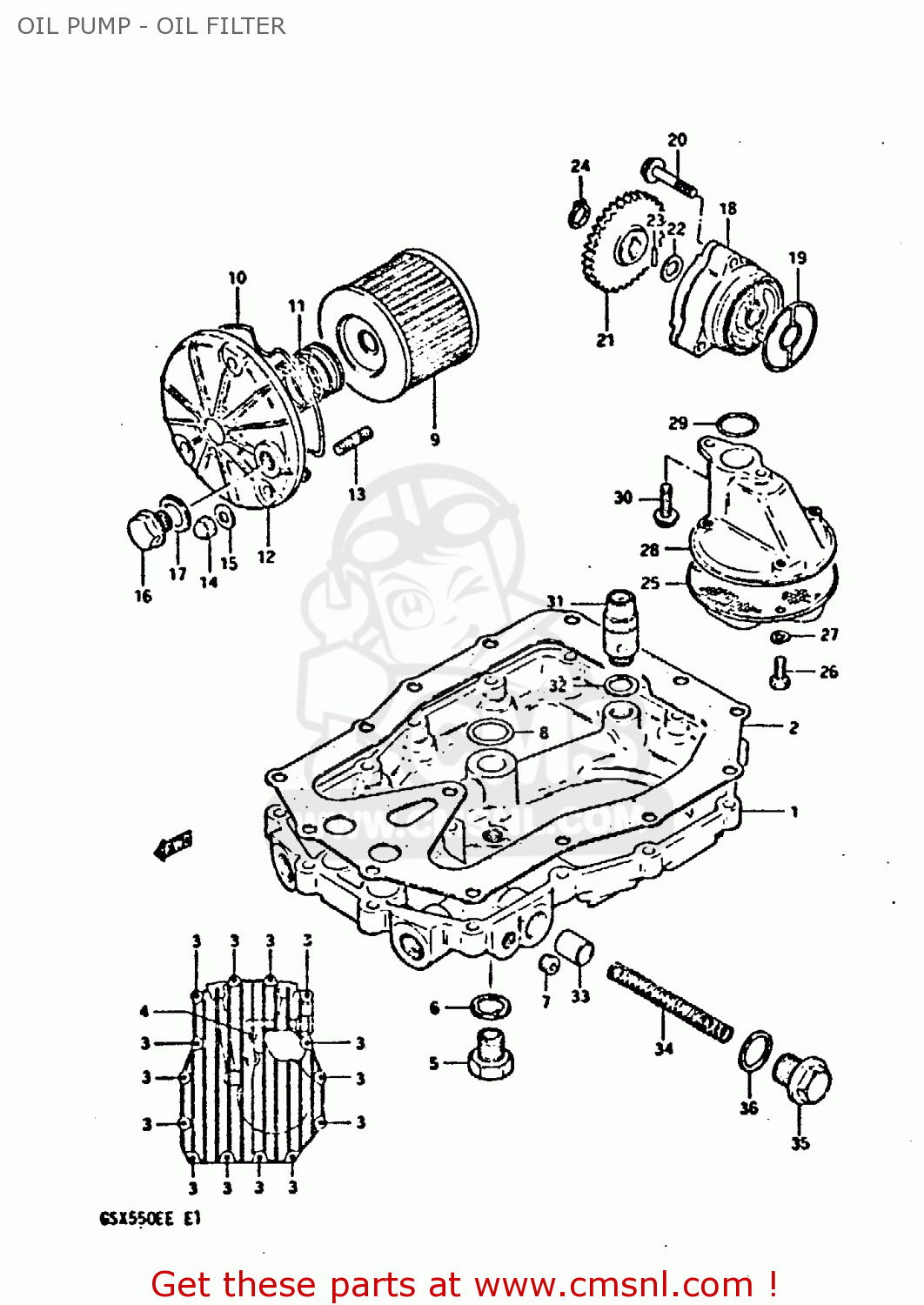

OIL PUMP - OIL FILTER - GSX550ES 1984 (E)

ref

part #

description

quantity

1

1151143401
ref: 1

PAN,OIL

€ 62.50

2

1148943401
ref: 2

GASKET,OIL PAN (MCA)

€ 17.00

3

0151706254
ref: 3

BOLT

€ 2.50

4

0151706354
ref: 4

BOLT 6X35

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

0924605001
ref: 7

PLUG

€ 3.50

8

0928018008
ref: 8

O RING(D:3.2,ID:17.8)

€ 8.00

9

1651045040
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

10

1651845000
ref: 10

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

0944032004
ref: 11

SPRING

€ 13.50

12

1651233300
ref: 12

CAP,OIL FILTER

€ 47.00

13

0142106208
ref: 13

STUD 6X20

€ 2.50

14

0831311065
ref: 14

NUT 6MM

€ 2.00

15

0832221065
ref: 15

WASHER

€ 2.00

16

0924714015
ref: 16

PLUG(14X12)

€ 2.50

17

0916814004
ref: 17

GASKET(14X19.2X2) (NAS)

€ 2.50

18

1640043400
ref: 18

PUMP ASSEMBLY,ENGINE OIL

€ 103.00

19

1649131300
ref: 19

O RING,OIL PUMP

€ 12.50

20

0910306045
ref: 20

BOLT(6X32)

€ 3.00

21

1633143400
ref: 21

GEAR,OIL PUMP DRIVEN

€ 39.00

22

0822110185
ref: 22

SHIM

€ 2.00

23

0926104009
ref: 23

PIN(4X15.8)

€ 1.50

24

0833131109
ref: 24

CIRCLIP

€ 2.00

25

1652009300
ref: 25

STRAINER,ENGINE OIL

€ 14.00

26

0110706128
ref: 26

BOLT

€ 2.00

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

1652509301
ref: 28

PROTECTOR,OIL STRAINER

€ 16.00

29

0928018008
ref: 29

O RING(D:3.2,ID:17.8)

€ 8.00

30

0151706208
ref: 30

BOLT,REAR

€ 2.50

31

1644015500
ref: 31

REGULATOR ASSEMBLY,ENGINE

€ 37.00

32

0821214181
ref: 32

WASHER

€ 2.00

33

1644234300
ref: 33

PLUNGER,CONTROL

€ 16.00

34

0944010011
ref: 34

SPRING

€ 3.50

35

0924716004
ref: 35

PLUG

€ 5.50

36

0928017002
ref: 36

O RING(D:2.4,ID:16.8)

€ 3.50

OIL PUMP - OIL FILTER

all assemblies
