TURN SIGNAL LAMP (E2, E17)
GSX550ES 1984 (E)

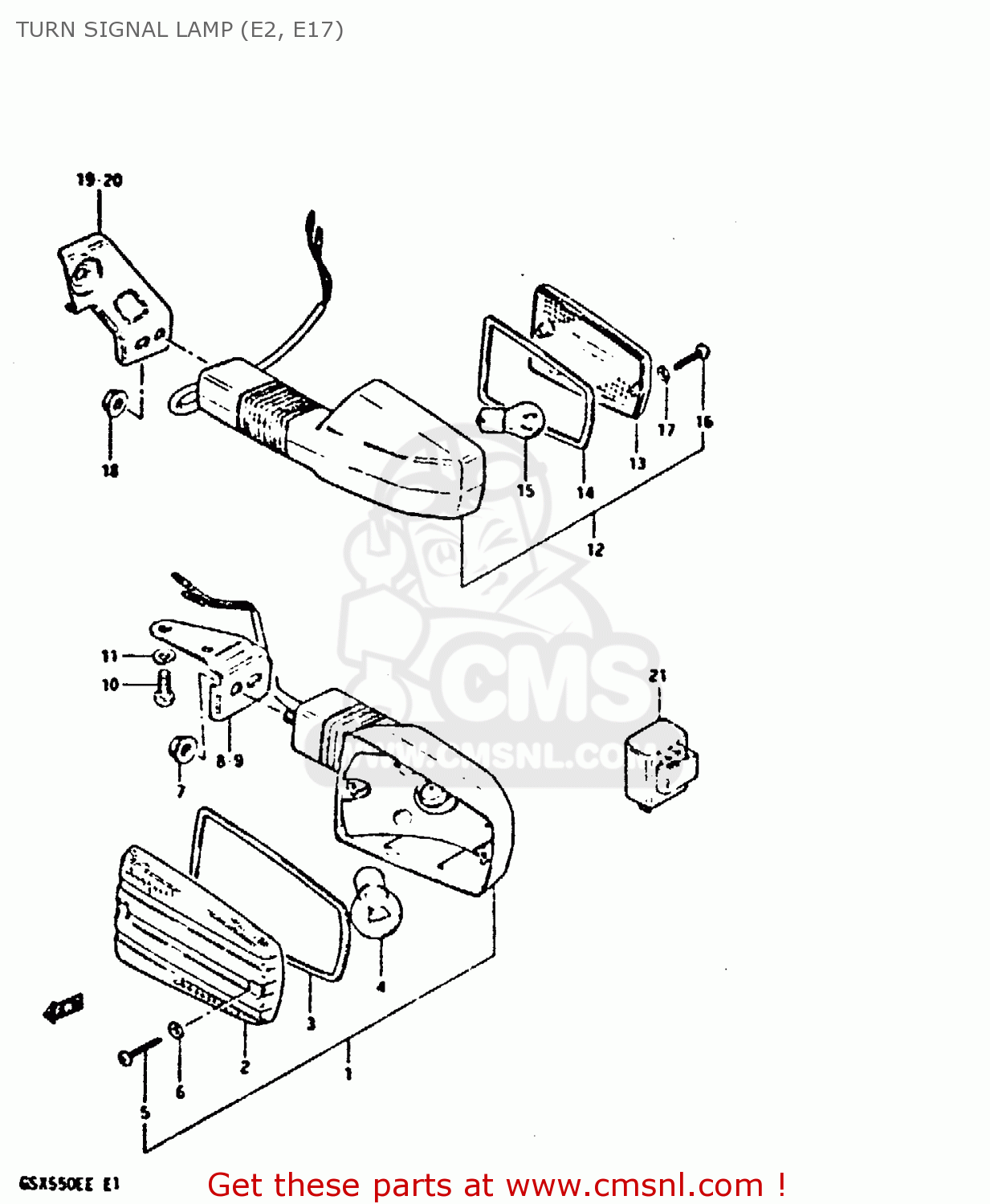

Turn signal lamp (e2, e17) diagram GSX550ES 1984 (E)
TURN SIGNAL LAMP (E2, E17) GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560143421
ref: 1-1
GSX550ED/ESD/ESE/EFE
LAMP ASSY, FRONT TURN SIGNAL
€ 98.50
1-2
3560143481
ref: 1-2
GSX550EE
LAMP ASSY, FRONT TURN SIGNAL
€ 54.00
2
3561243410
ref: 2
LENS
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
€ 3.50
4
0947112045
ref: 4
EXECUTED LOCALLY
BULB(12V21W)
€ 5.00
5
0321104208
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0831626085
ref: 7
NUT M8
€ 1.50
8
3567143400
ref: 8
GSX550ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
€ 5.00
9
3568143400
ref: 9
GSX550ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
€ 5.50
10
0211206168
ref: 10
SCREW
€ 2.50
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
3560343421
ref: 12
LAMP ASSY, REAR TURN SIGNAL
€ 75.00
13
3565243420
ref: 13
LENS,TURN SIGN
€ 11.50
14
3561343410
ref: 14
GASKET (NAS)
€ 3.50
15
0947112045
ref: 15
EXECUTED LOCALLY
BULB(12V21W)
€ 5.00
16
0321104208
ref: 16
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
0831626086
ref: 18
NUT
€ 1.50
19
3562143400
ref: 19
BRACKET,REAR TURN SIGNAL
€ 7.50
20
3564143400
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.50
21
3861031310
ref: 21
FROM 38610-45031
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
