SIGNAL GENERATOR

GSX550ES 1984 (E)

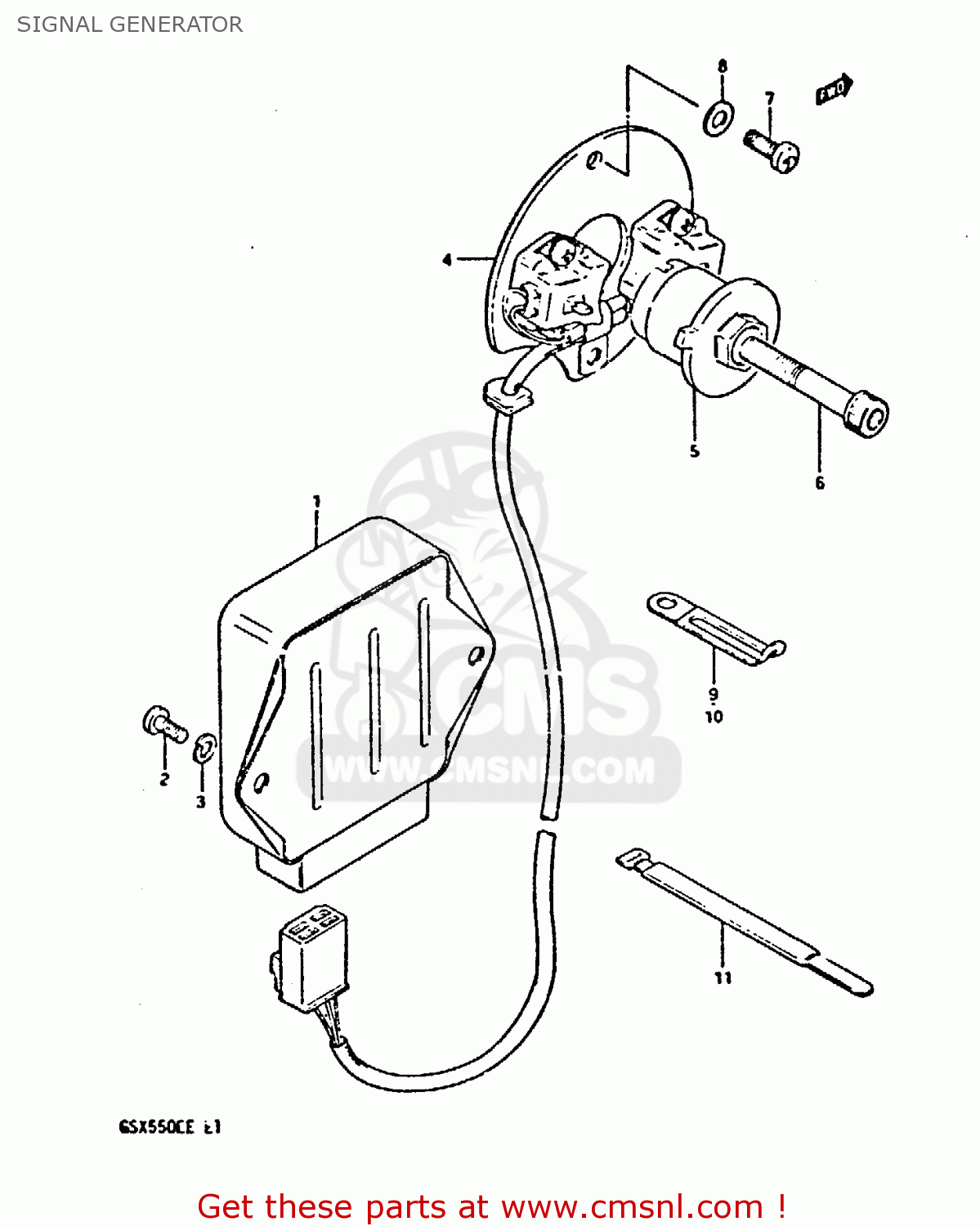

Signal generator diagram GSX550ES 1984 (E)

SIGNAL GENERATOR GSX550ES 1984 (E)

SIGNAL GENERATOR GSX550ES 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

3290043400
ref: 1

IGNITER UNIT ASSEMBLY

€ 531.00

2

0211206128
ref: 2

SCREW 6X12

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

3311043400
ref: 4

GENERATOR ASSY,SIGNAL

€ 263.50

5

3312043420
ref: 5

ROTOR,SIGNAL

€ 67.00

6

0910608018
ref: 6

BOLT

€ 3.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005027
ref: 8

WASHER

€ 2.50

9

0940406401
ref: 9

CLAMP L:35

€ 2.50

10

0940408401
ref: 10

CLAMP

€ 3.50

11

0940718301
ref: 11

CLAMP

€ 6.00
