REAR MASTER CYLINDER

GSX550ES 1984 (E)

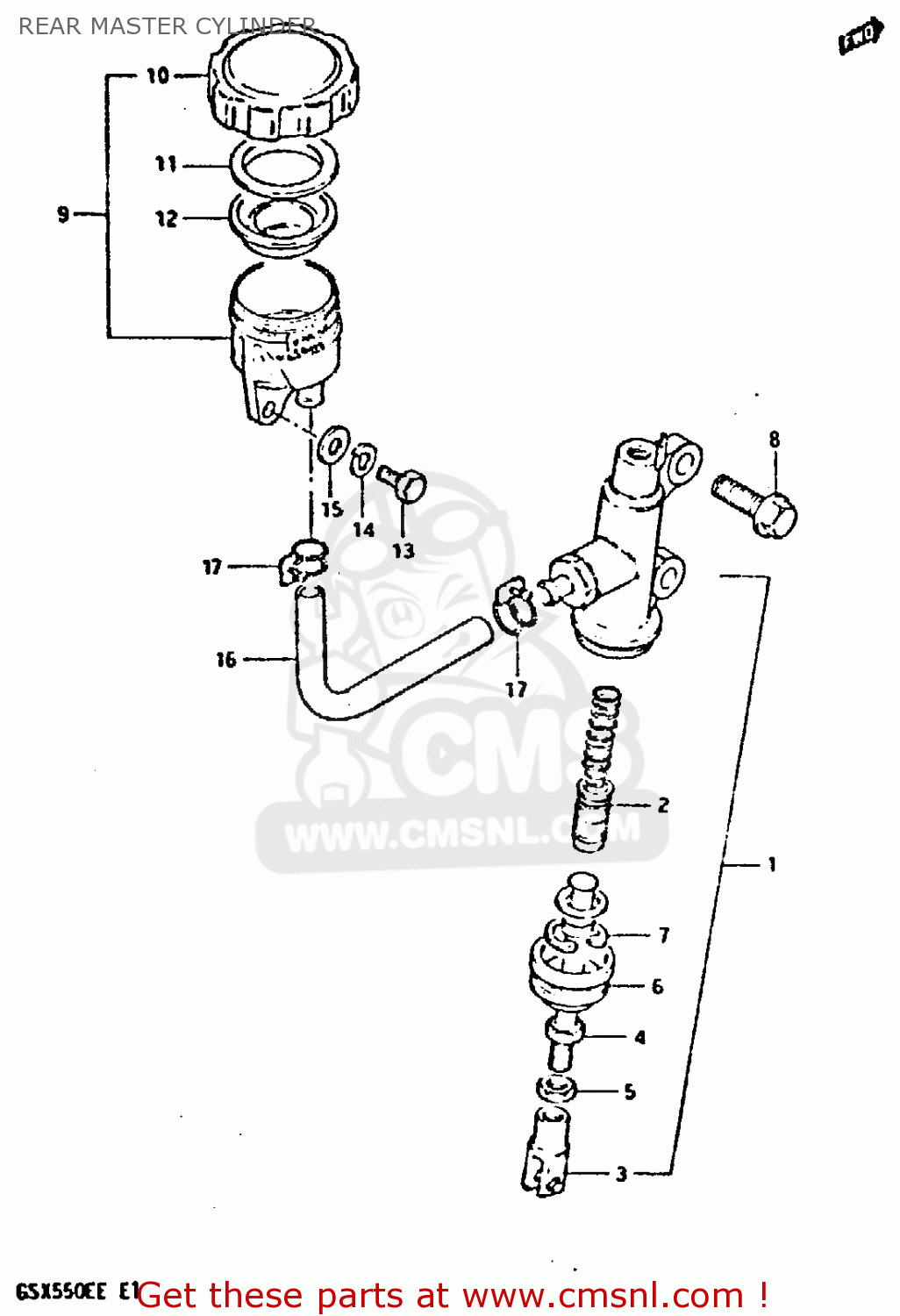

Rear master cylinder diagram GSX550ES 1984 (E)

prices are in EUR

ref

part #

description

quantity

6960043400
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 201.00

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

6969234300
ref: 3

YOKE

€ 11.00

6967031300
ref: 4

ROD,PUSH

€ 15.00

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6969145001
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

0151708255
ref: 8

BOLT

€ 2.50

6974034200
ref: 9

TANK ASSEMBLY,RESERVOIR

€ 27.50

5966918605
ref: 10

CAP

€ 16.50

5966818441
ref: 11

PLATE,DIAPHRAGM

€ 3.50

5966718441
ref: 12

DIAPHRAGM

€ 8.50

0110706168
ref: 13

BOLT, UPPER

€ 3.00

0832121068
ref: 14

LOCK WASHER

€ 2.50

0832221068
ref: 15

WASHER

€ 2.00

6973143401
ref: 16

HOSE,RESERVOIR TANK

€ 13.00

0940016302
ref: 17

CLAMP

€ 4.50
