CAM SHAFT - VALVE
GSX550ES 1984 (E)

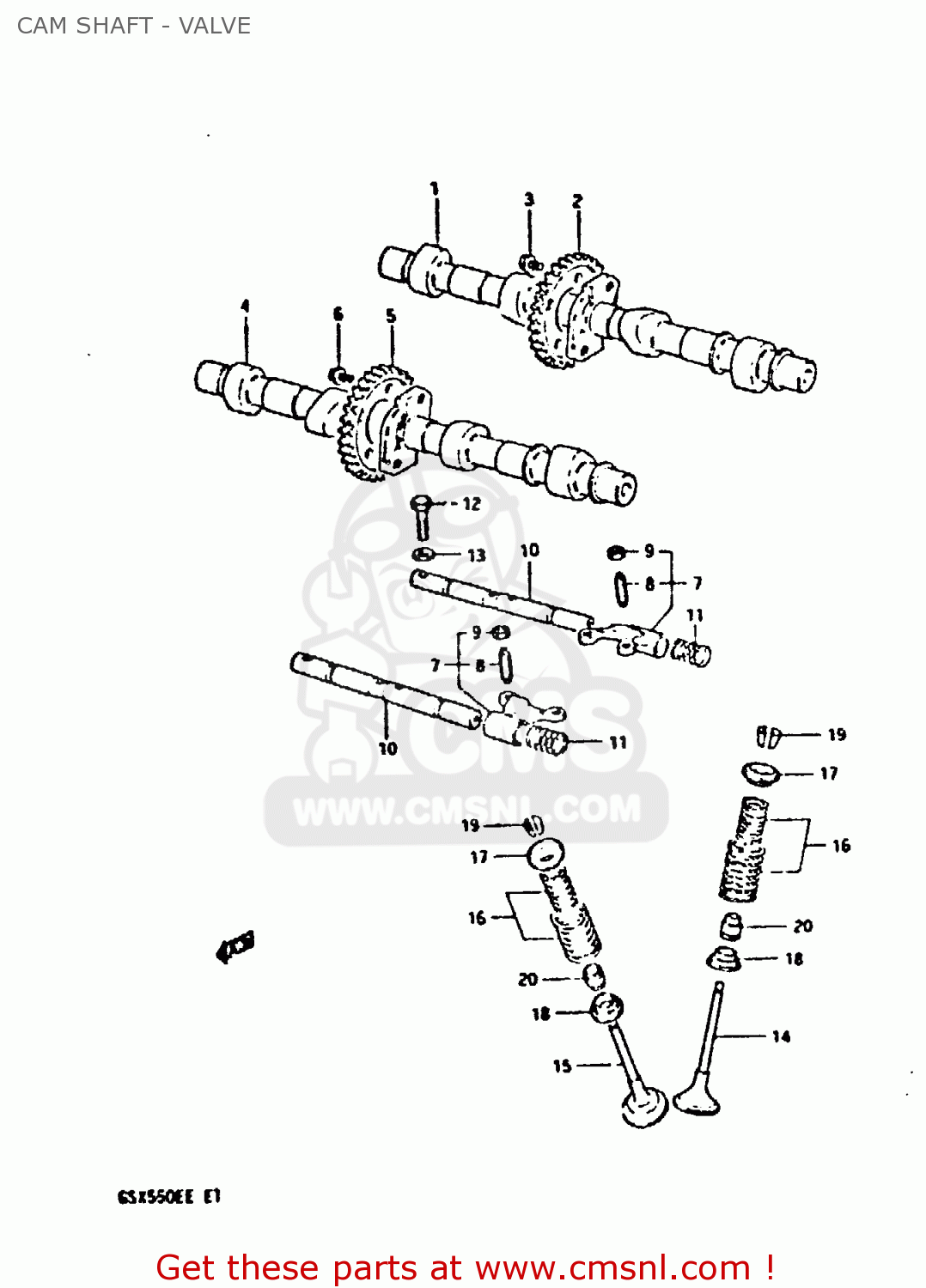

Cam shaft - valve diagram GSX550ES 1984 (E)
CAM SHAFT - VALVE GSX550ES 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
1271143403
ref: 1
CAMSHAFT,INTAKE
€ 99.50
2
1274143401
ref: 2
SPROCKET,INTAKE CAMSHAFT
€ 23.00
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4
1272143402
ref: 4
CAMSHAFT,EXHAUST
€ 193.50
5
1274143401
ref: 5
SPROCKET,INTAKE CAMSHAFT
€ 23.00
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1284011400
ref: 7
ARM,VALVE ROCKER
€ 62.00
8
1284249210
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284349210
ref: 9
NUT,ADJUSTING
€ 3.00
10
1286143401
ref: 10
SHAFT,VALVE ROCKER
€ 25.50
11
0944013024
ref: 11
SPRING
€ 3.50
12
0110706308
ref: 12
BOLT
€ 2.50
13
0832221068
ref: 13
WASHER
€ 2.00
14
1291143400
ref: 14
VALVE,INTAKE
€ 12.50
15
1291243400
ref: 15
VALVE,EXHAUST
€ 37.50
16
1292033230
ref: 16
SPRING SET,VALVE
€ 10.50
17
1293143400
ref: 17
RETAINER,VALVE SPRING
€ 5.50
18
1293333200
ref: 18
SEAT,VALVE SPRING
€ 4.50
19
1293243402
ref: 19
COTTER,VALVE
€ 1.50
20
0928905008
ref: 20
SEAL,OIL(5X10.5X8.4)
€ 6.00
