SEAT TAIL COVER (GSX550EE)

GSX550ES 1984 (E)

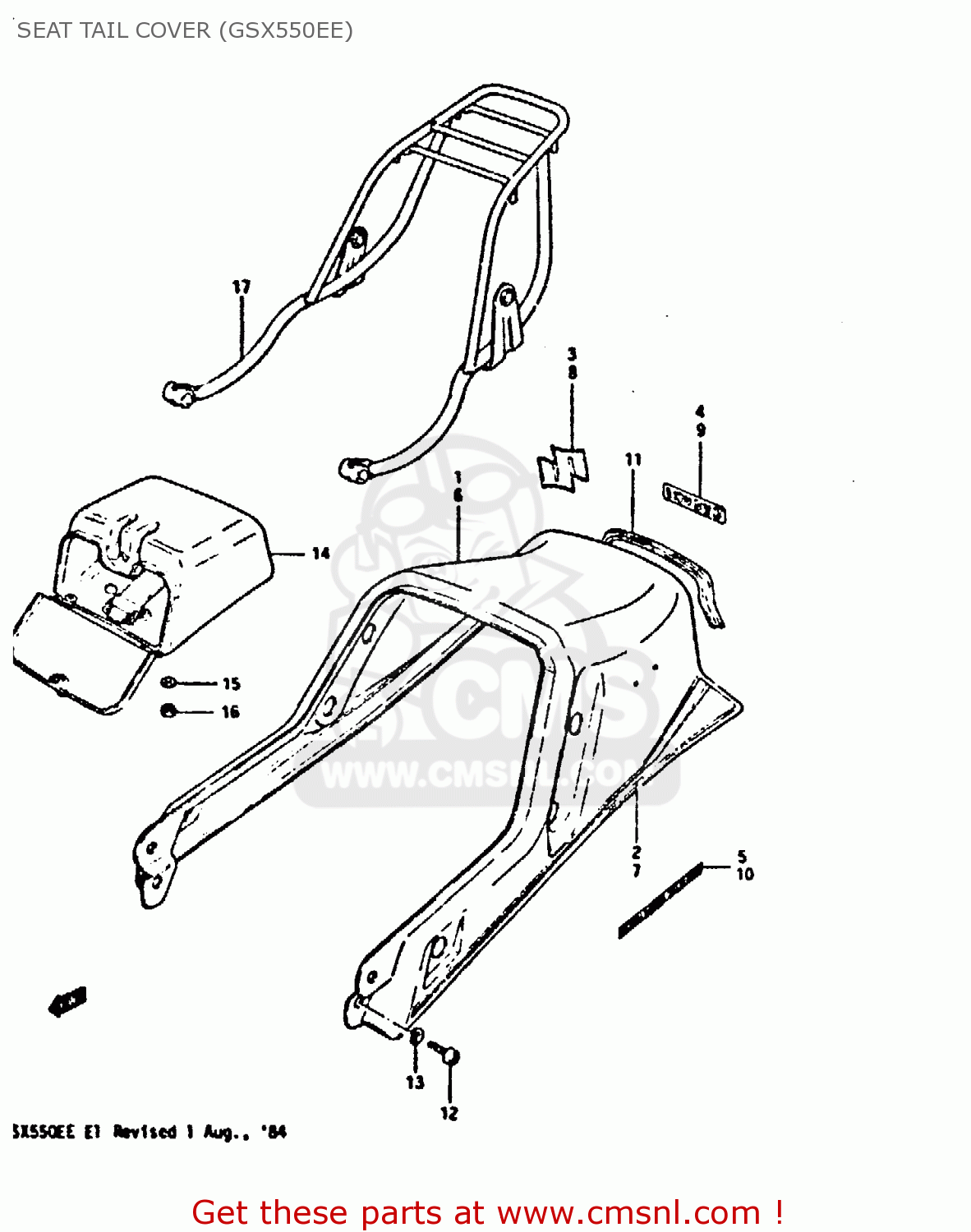

Seat tail cover (gsx550ee) diagram GSX550ES 1984 (E)

SEAT TAIL COVER (GSX550EE) GSX550ES 1984 (E)

SEAT TAIL COVER (GSX550EE) GSX550ES 1984 (E)

prices are in EUR

ref

part #

description

quantity

1-1

455104344013Z
ref: 1-1

TAIL COVER, SEAT (BLACK)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

681604342071P
ref: 2

TAPE SET, SEAT TAIL COVER

€ 0.00

3

681664341071P
ref: 3

EMBLEM, "S" MARK

€ 4.00

4

681663130076A
ref: 4

EMBLEM (GOLD)

€ 0.00

5

682353130091R
ref: 5

EMBLEM

€ 12.00

6-1

455104344007P
ref: 6-1

TAIL COVER, SEAT (RED)

€ 186.50

6-2

NOTUSED
ref: 6-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

681604342060D
ref: 7

TAPE SET, SEAT TAIL COVER

€ 0.00

8

681664341060D
ref: 8

EMBLEM,SEAT TAIL (S)

€ 4.50

9

6816631300064
ref: 9

EMBLEM(WHITE)

€ 3.50

10

682353130091R
ref: 10

EMBLEM

€ 12.00

11

4556243401
ref: 11

BLIND,SEAT TAIL COVER

€ 5.50

12

0211206168
ref: 12

SCREW

€ 2.50

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

9499043400
ref: 14

BOX,SEAT TAIL

€ 30.50

15

0916906010
ref: 15

WASHER

€ 3.00

16

0831931068
ref: 16

NUT

€ 2.50

17

4631043400
ref: 17
OPT

CARRIER, SPORTS

€ 75.50
