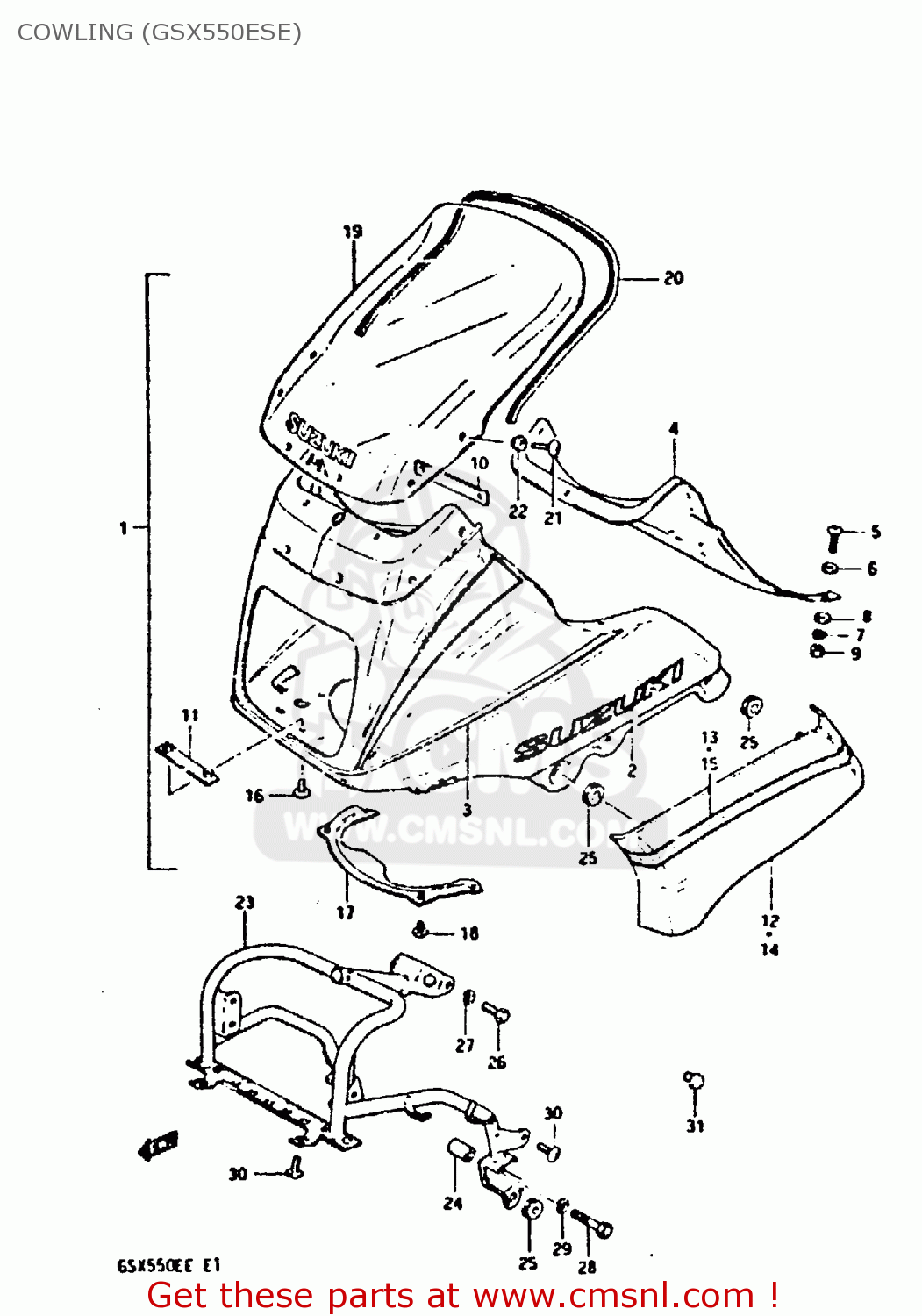

COWLING (GSX550ESE)

ref

part #

description

quantity

1-1

944004349004Y
ref: 1-1

COWLING ASSEMBLY

€ 755.50

1-2

944004349007P
ref: 1-2

COWLING ASSY (RED)

€ 960.50

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

681113240173H
ref: 2-1
FOR 04Y

EMBLEM

€ 8.50

2-2

681113240160D
ref: 2-2
FOR 07P

EMBLEM

€ 9.50

3-1

68190434107AL
ref: 3-1
FOR 04Y

TAPE SET,COWLING

€ 30.50

3-2

68190434107AM
ref: 3-2
FOR 07P

TAPE SET

€ 0.00

4

9442243400
ref: 4

PANEL,COWLING,UPPER

€ 16.50

5

0214205165
ref: 5

SCREW

€ 2.50

6

0832221055
ref: 6

WASHER,5MM

€ 2.50

7

0832121035
ref: 7

LOCK WASHER

€ 1.50

8

0832221055
ref: 8

WASHER,5MM

€ 2.50

9

0831012055
ref: 9

NUT ,5MM

€ 2.50

10

9441643400
ref: 10

BRACKET,COWLING,UPPER

€ 3.50

11

9442043400
ref: 11

BRACKET,COWLING,LOWER

€ 2.50

12-1

944304342091J
ref: 12-1
FOR 04Y

COVER,COWLING,RIGHT

€ 63.50

12-2

944304342099K
ref: 12-2
FOR 07P

COVER, RH (SILVER/RED)

€ 63.50

13-1

68680434207AL
ref: 13-1
FOR 04Y

TAPE SET,COWLING

€ 0.00

13-2

68680434207AM
ref: 13-2
FOR 07P

TAPE SET

€ 0.00

14-1

944404342091J
ref: 14-1
FOR 04Y

COVER,COWLING,LEFT

€ 37.50

14-2

944404342099K
ref: 14-2
FOR 07P

COVER, LH (SILVER/RED)

€ 0.00

15-1

68690434207AL
ref: 15-1
FOR 04Y

TAPE SET,COWLING

€ 0.00

15-2

68690434207AM
ref: 15-2
FOR 07P

TAPE SET

€ 0.00

16

0214205127
ref: 16

SCREW

€ 1.50

17

9448043400
ref: 17

COVER,COWLING,LOWER

€ 19.00

18

0214205127
ref: 18

SCREW

€ 1.50

19-1

9461143420
ref: 19-1

WINDOW

€ 281.50

19-2

NOTUSED
ref: 19-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

20-1

9463143400
ref: 20-1

MOLDING,LOWER

€ 18.00

20-2

NOTUSED
ref: 20-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21

0214205165
ref: 21

SCREW

€ 2.50

22

0932005008
ref: 22

CUSHION

€ 5.00

23

9451043400
ref: 23

BRACE,COWLING

€ 112.50

24

0918008057
ref: 24

SPACER (8.2X12.5X23.5)

€ 2.00

25

0932008018
ref: 25

CUSHION

€ 4.00

26

0110708165
ref: 26

BOLT

€ 2.00

27

0832121085
ref: 27

LOCK WASHER

€ 2.50

28

0110708455
ref: 28

BOLT

€ 2.50

29

0832121085
ref: 29

LOCK WASHER

€ 2.50

30

0214206125
ref: 30

SCREW 6X12

€ 2.00

31

0925006007
ref: 31

PLUG

€ 2.00
