CARBURETOR
GSX750 1981 (X) (E01 E02 E06 E22 E24)

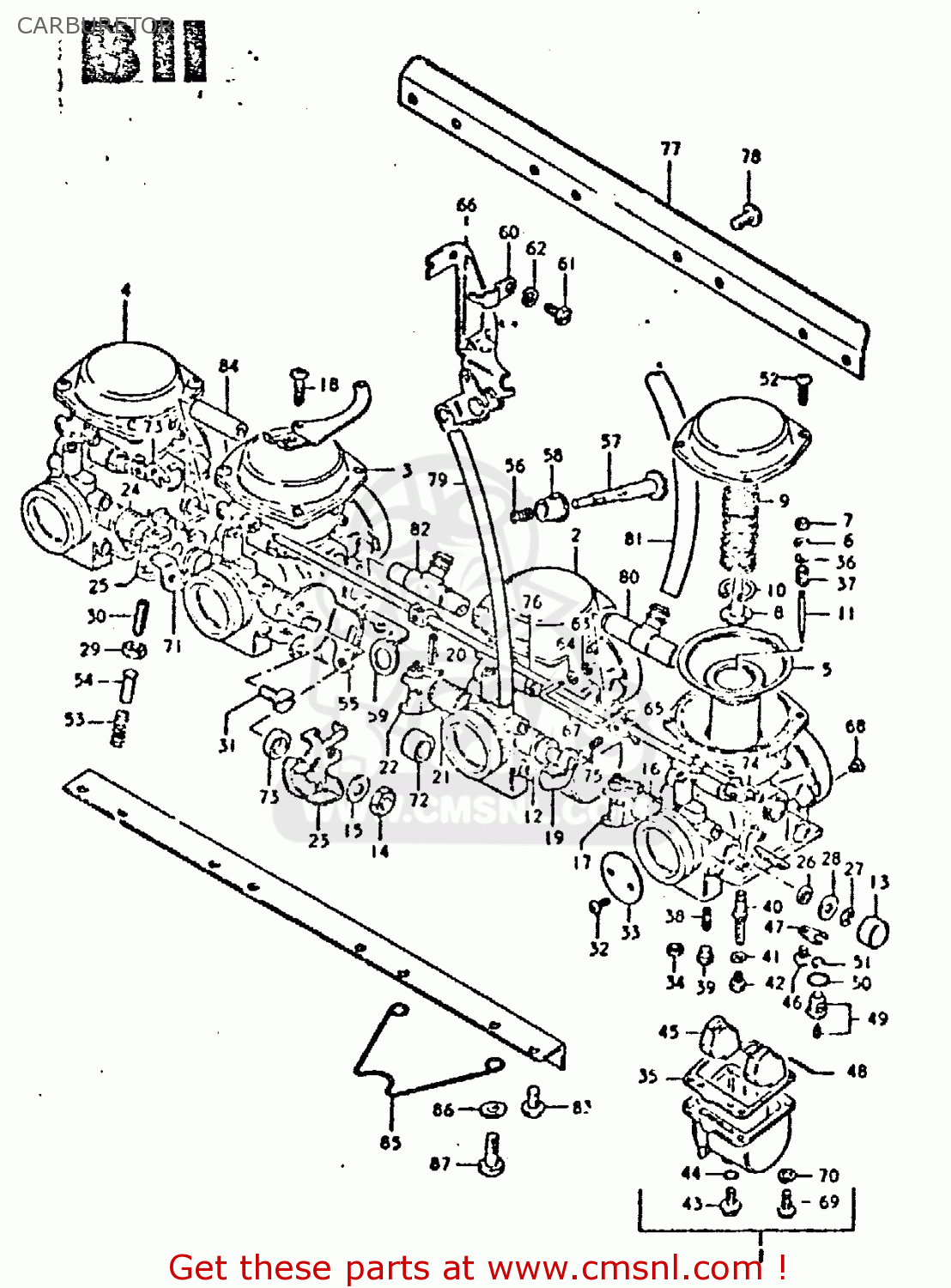

Carburetor diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)
CARBURETOR GSX750 1981 (X) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
0
1320045410
ref: 0
CARBURETOR ASSY
€ 0.00
1
1320145410
ref: 1
LH
CARBURETOR, NO.1
€ 0.00
2
1320245410
ref: 2
ML
CARBURETOR, NO.2
€ 0.00
3
1320345410
ref: 3
MR
CARBURETOR, NO.3
€ 0.00
4
1320445410
ref: 4
RH
CARBURETOR, NO.4
€ 0.00
5
1350045110
ref: 5
DIAPHRAGM
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350344080
ref: 9
SPRING
€ 11.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338345410
ref: 11
NEEDLE,JET
€ 15.00
12
1355749200
ref: 12
ML, MR
GASKET
€ 7.00
13
1357847070
ref: 13
RH, LH
CAP
€ 5.50
14
0831012088
ref: 14
MR
NUT
€ 2.00
15
1360647070
ref: 15
MR
WASHER
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
€ 44.50
18
0211105158
ref: 18
ML:1, MR:2
SCREW
€ 2.50
19
1355045400
ref: 19
ML
SHAFT,THROTTLE
€ 0.00
20
1356347070
ref: 20
LH, ML, RH
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
MR, RH
SPRING,THROTTLE SHAFT
€ 0.00
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1365151010
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH, RH
E RING
€ 3.50
28
1355747070
ref: 28
LH, RH
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
LH, ML, RH
NUT
€ 4.00
30
1360547070
ref: 30
LH, ML, RH
SCREW
€ 5.50
31
1360545110
ref: 31
MR
SCREW
€ 0.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355147090
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325844080
ref: 34
GASKET (NAS)
€ 4.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
36
1338244030
ref: 36
WASHER
€ 3.50
37
1338844030
ref: 37
SPRING
€ 6.00
38
0949242005
ref: 38
JET, PILOT (42.5)
€ 8.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
€ 4.50
40
0949400278
ref: 40
JET,NEEDLE(Y-5)
€ 18.00
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949122005
ref: 42
JET, MAIN (112.5)
€ 11.00
43
1324744080
ref: 43
PLUG,DRAIN
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
€ 3.50
45
1325044080
ref: 45
FLOAT
€ 31.00
46
0211104067
ref: 46
SCREW
€ 2.00
47
1337339110
ref: 47
PLATE
€ 6.50
48
1325492311
ref: 48
PIN,FLOAT
€ 2.00
49
1337044080
ref: 49
VALVE ASSEMBLY,NEEDLE
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
€ 6.00
51
1337644080
ref: 51
FILTER
€ 6.50
52
0211205128
ref: 52
LH/RH:4, ML:3, MR:2
SCREW
€ 2.50
53
1326844010
ref: 53
LH, ML, RH
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
LH, ML, RH
PIN,THROTTLE LEVER
€ 2.50
55
1362745110
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 0.00
56
1327193011
ref: 56
MR
SPRING
€ 4.50
57
1326747070
ref: 57
MR
SCREW
€ 21.00
58
1327631210
ref: 58
MR
BUSH
€ 4.00
59
1362744090
ref: 59
MR
BRACKET,THROTTLE ADJUST
€ 0.00
60
1342147070
ref: 60
ML
BRACKET,STARTER
€ 9.00
61
0110405108
ref: 61
ML
BOLT
€ 1.50
62
0832121058
ref: 62
ML
LOCK WASHER
€ 2.00
63
1341547070
ref: 63
ML
CAP,LEVER
€ 4.50
64
1352398010
ref: 64
ML
SEAT,SPRING
€ 5.00
65
1342247070
ref: 65
ML
LEVER ASSY
€ 11.50
66
1362445110
ref: 66
ML
BRACKET
€ 0.00
67
1342545110
ref: 67
ML
ROD,STARTER LEVER
€ 6.00
68
0949330003
ref: 68
JET,AIR(150)
€ 13.00
69
0211205168
ref: 69
SCREW
€ 2.50
70
0832121058
ref: 70
LOCK WASHER
€ 2.00
71
1355045410
ref: 71
MR
SHAFT,THROTTLE
€ 0.00
72
1357445110
ref: 72
ML
RING
€ 3.50
73
1357445120
ref: 73
MR
RING
€ 2.50
74
1342244080
ref: 74
LEVER
€ 10.00
75
1360547070
ref: 75
SCREW
€ 5.50
76
1341045400
ref: 76
SHAFT,STARTER
€ 0.00
77
1362845400
ref: 77
BRACKET
€ 0.00
78
1360547090
ref: 78
SCREW
€ 1.50
79
1368345110
ref: 79
HOSE
€ 14.00
80
1368545400
ref: 80
NIPPLE,CARBURETOR
€ 23.00
81
1368347070
ref: 81
HOSE
€ 18.00
82
1368545110
ref: 82
NIPPLE
€ 31.50
83
0211206128
ref: 83
SCREW 6X12
€ 2.00
84
1368549210
ref: 84
NIPPLE
€ 16.50
85
1361949200
ref: 85
CLAMP
€ 6.00
86
1361549200
ref: 86
WASHER
€ 0.00
87
0211206168
ref: 87
SCREW
€ 2.50
