CRANKCASE COVER
GSX750 1981 (X) (E01 E02 E06 E22 E24)

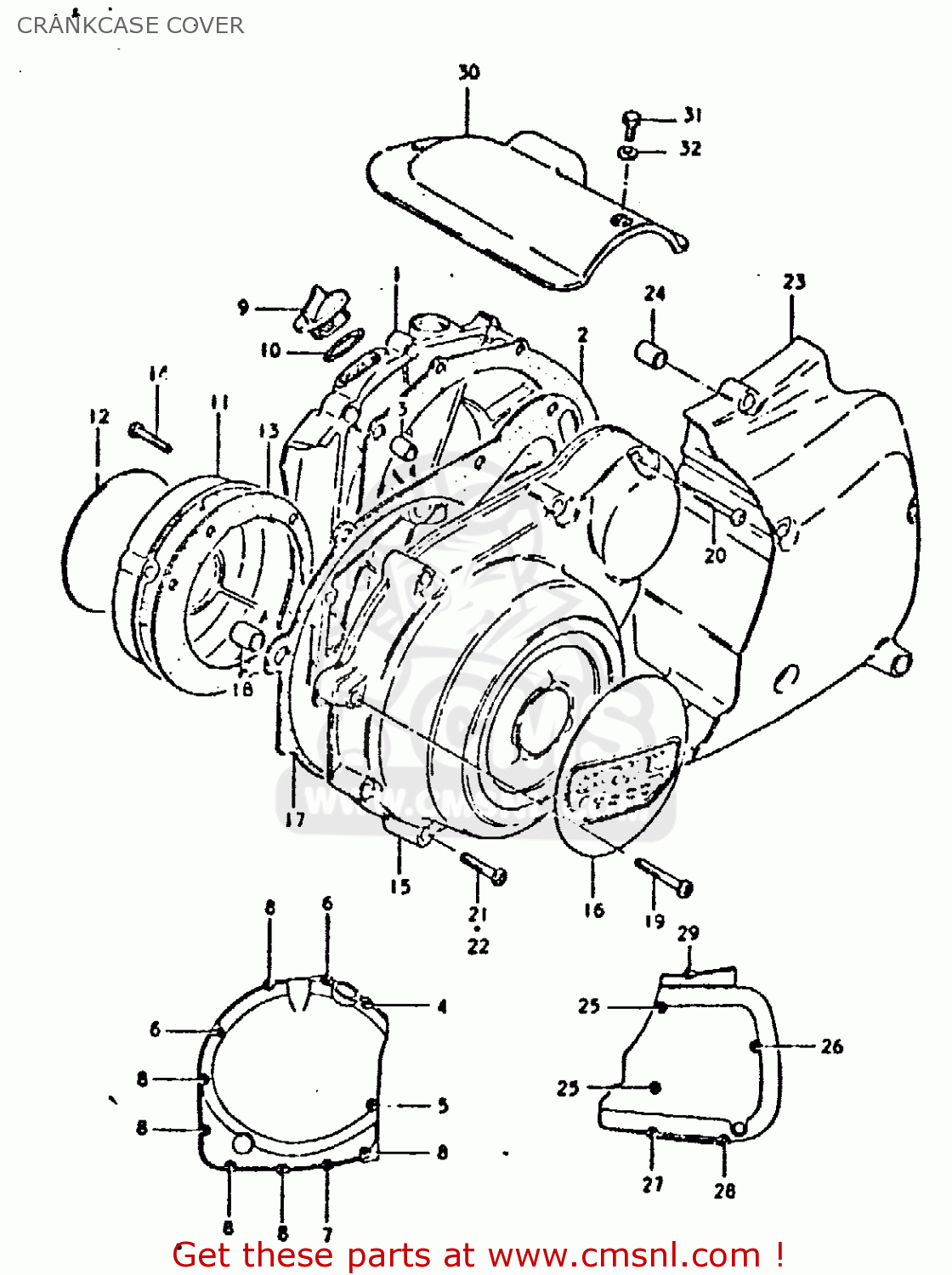

Crankcase cover diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)
CRANKCASE COVER GSX750 1981 (X) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1134045400
ref: 1
COVER,CLUTCH
€ 292.00
2
1148245400
ref: 2
GASKET,CLUTCH COVER (MCA)
€ 20.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0211206408
ref: 4
SCREW
€ 2.00
5
0211206358
ref: 5
SCREW (6X35)
€ 2.50
6
0211206308
ref: 6
SCREW 6X30
€ 2.50
7
0211206258
ref: 7
SCREW
€ 2.00
8
0211206208
ref: 8
SCREW
€ 2.00
9
0925930001
ref: 9
CAP
€ 8.50
10
0928032005
ref: 10
O RING(D:2.2,ID:32)
€ 2.00
11-1
1138149200
ref: 11-1
MODEL T
COVER,CONTACT BREAKER
€ 49.00
11-2
1138149201
ref: 11-2
MODEL X
COVER,CONTACT BREAKER
€ 49.00
12
6823549200
ref: 12
EMBLEM
€ 19.50
13
1149149200
ref: 13
GASKET,CONTACT BREAKER COVER (NAS)
€ 14.50
14
0211205308
ref: 14
SCREW
€ 1.50
15
1135145400
ref: 15
COVER
€ 293.00
16
6823349200
ref: 16
EMBLEM,MAGNETO COVER
€ 29.50
17
1148349200
ref: 17
GASKET,MAGNETO COVER (MCA)
€ 13.00
18
0920613001
ref: 18
PIN
€ 2.50
19
0211206458
ref: 19
SCREW (6X45)
€ 2.00
20
0211206408
ref: 20
SCREW
€ 2.00
21
0211206358
ref: 21
SCREW (6X35)
€ 2.50
22
0211206308
ref: 22
SCREW 6X30
€ 2.50
23
1136049200
ref: 23
COVER,SPROCKET
€ 127.00
24
0421109129
ref: 24
PIN
€ 2.00
25
0211206958
ref: 25
SCREW (6*95)
€ 2.50
26
0211206858
ref: 26
SCREW 6X85
€ 2.50
27
0211206708
ref: 27
SCREW 6X70
€ 3.00
28
0211206557
ref: 28
SCREW
€ 2.50
29
0211206308
ref: 29
SCREW 6X30
€ 2.50
30
1138249002
ref: 30
COVER,STARTER MOTOR
€ 43.00
31
0110405108
ref: 31
BOLT
€ 1.50
32
0832221058
ref: 32
WASHER
€ 2.50
