FUEL COCK (MODEL T)

GSX750 1981 (X) (E01 E02 E06 E22 E24)

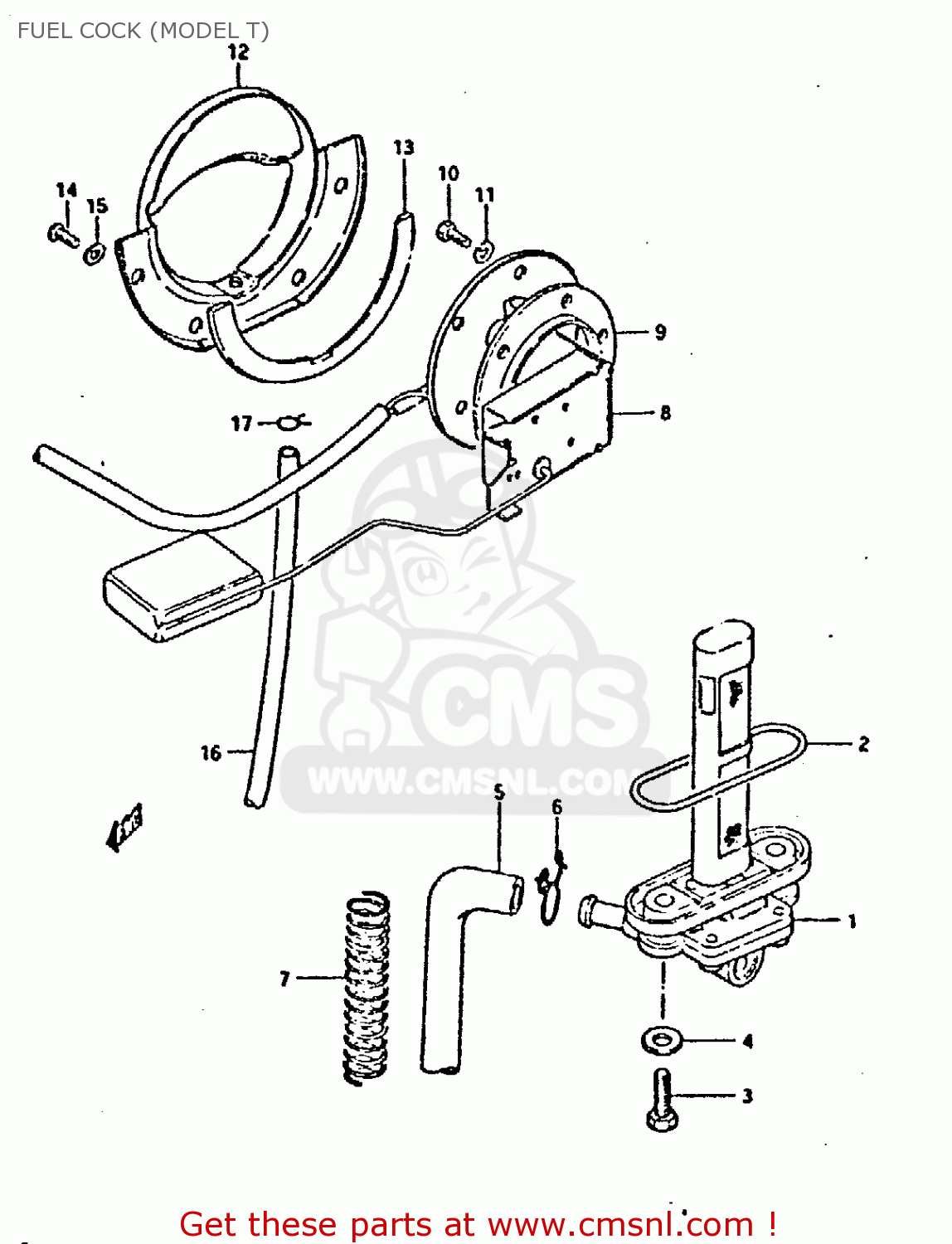

Fuel cock (model t) diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

FUEL COCK (MODEL T) GSX750 1981 (X) (E01 E02 E06 E22 E24)

FUEL COCK (MODEL T) GSX750 1981 (X) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

4430047270
ref: 1

COCK ASSY,FUEL

€ 97.50

2

4434847270
ref: 2

GASKET (NAS)

€ 7.50

3

0912806024
ref: 3

SCREW (6X25)

€ 2.50

4

0916806010
ref: 4

GASKET

€ 2.00

5

0934307026
ref: 5

HOSE

€ 17.50

6

0940110403
ref: 6

CLIP

€ 7.00

7

0944013017
ref: 7

SPRING

€ 14.50

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

3481045410
ref: 8-2
GSX750ET:E2, E4, E6,

GAUGE, FUEL LEVEL (24L)

€ 86.00

9

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

10

0110405108
ref: 10

BOLT

€ 1.50

11

0832121058
ref: 11

LOCK WASHER

€ 2.00

12

3488549002
ref: 12

PLATE,FUEL DRAIN

€ 21.00

13

3488849000
ref: 13

GASKET,FUEL DRAIN PLATE (NAS)

€ 15.00

14

0211205088
ref: 14

SCREW

€ 2.00

15

0832121058
ref: 15

LOCK WASHER

€ 2.00

16

0934305165
ref: 16

HOSE,FUEL

€ 13.00

17

0940108402
ref: 17

CLIP

€ 1.50
