SEAT TAIL COVER (MODEL T)

GSX750 1981 (X) (E01 E02 E06 E22 E24)

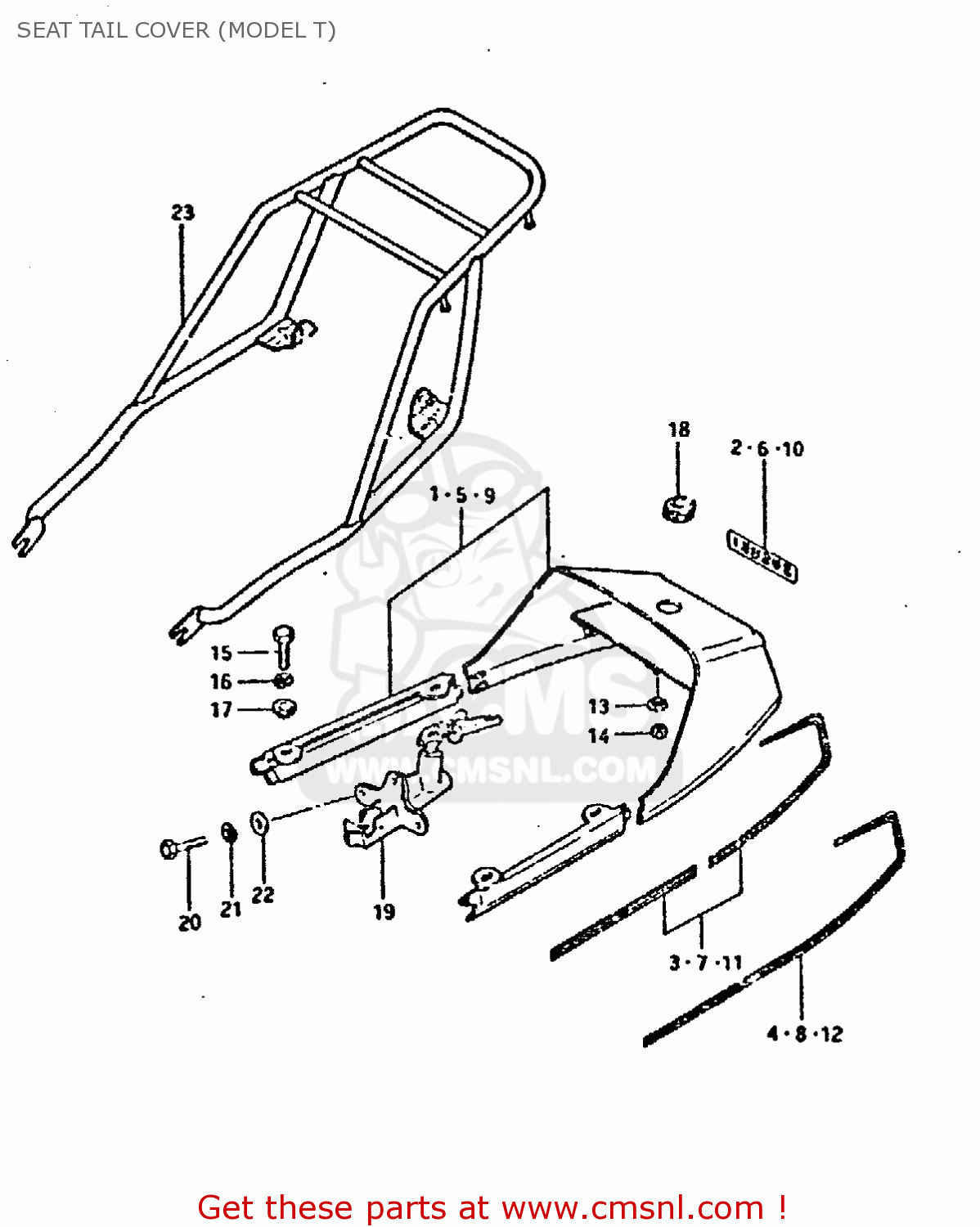

Seat tail cover (model t) diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

SEAT TAIL COVER (MODEL T) GSX750 1981 (X) (E01 E02 E06 E22 E24)
SEAT TAIL COVER (MODEL T) GSX750 1981 (X) (E01 E02 E06 E22 E24)
SEAT TAIL COVER (MODEL T) GSX750 1981 (X) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
455014983108E
ref: 1
FROM 45500-49610-08E
COVER SET, SEAT TAIL (BLACK)
€ 149.50
2
6816649200998
ref: 2
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
3
681024985171P
ref: 3
TAPE SET
€ 37.50
4
681604920071P
ref: 4
FOR 45500-49810-03F
TAPE SET
€ 37.50
5
455014984107P
ref: 5
FROM 45500-49810-07P
COVER SET, SEAT TAIL (RED)
€ 149.50
6
6816649200998
ref: 6
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
7
681024985160T
ref: 7
TAPE SET
€ 0.00
8
681604920060T
ref: 8
FOR 45500-49840-07P
TAPE SET
€ 0.00
9
455014981104Y
ref: 9
FROM 45500-49200-04Y
COVER SET, SEAT TAIL (BLUE)
€ 149.50
10
6816649200998
ref: 10
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
11
681024985165Y
ref: 11
TAPE SET
€ 0.00
12
681604920065Y
ref: 12
FOR 45500-49200-04Y
TAPE SET
€ 0.00
13
0916906016
ref: 13
WASHER
0916906016
€ 1.50
14
0831921068
ref: 14
NUT 6MM
0831921068
€ 2.00
15
0110706128
ref: 15
BOLT
0110706128
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0916906016
ref: 17
WASHER
0916906016
€ 1.50
18
4552249200
ref: 18
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
19
9570049820
ref: 19
LOCK SET
€ 81.50
20
0110706128
ref: 20
BOLT
0110706128
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0832211068
ref: 22
WASHER 6MM
€ 2.00
23
4631045400
ref: 23
OPT
CARRIER
€ 67.00
