Buy Suzuki GSX Parts Online


FRONT CALIPERS

GSX750 1981 (X) (E01 E02 E06 E22 E24)

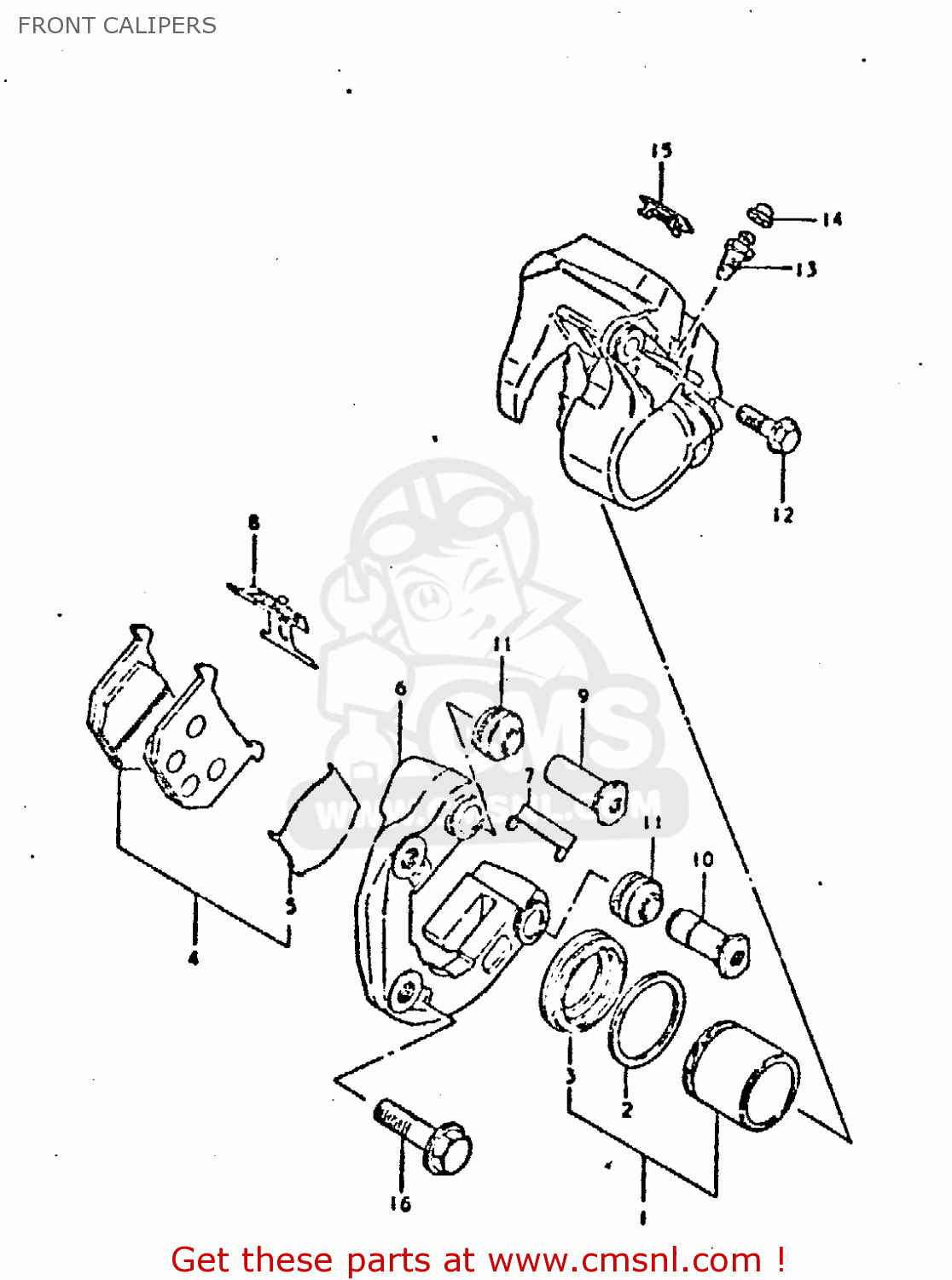

Front calipers diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

FRONT CALIPERS GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT CALIPERS GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT CALIPERS GSX750 1981 (X) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
0
5910044100
ref: 0
CARIPER ASSEMBLY,RIGHT
€ 149.50
0
5930044100
ref: 0
CALIPER ASSEMBLY,FRONT,LEFT
€ 162.50
1
5930145820
ref: 1
PISTON SET
€ 117.00
2
5910718410
ref: 2
SEAL,PISTON
5910718410
€ 17.00
3
5930845200
ref: 3
BOOT,PISTON
5930845200
€ 13.00
4
5930145810
ref: 4
PAD SET (MCA)
€ 72.50
5
5937145200
ref: 5
SHIM,PAD
5937145200
€ 12.50
6-1
5910044840
ref: 6-1
HOLDER SET, CALIPERS RH
€ 95.50
6-2
5930044830
ref: 6-2
CARRIER,CALIPER,LEFT
€ 49.00
7
5931645200
ref: 7
GUIDE,PAD
5931645200
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
5931545200
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
5930545200
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
5930645200
€ 13.50
11
5931245200
ref: 11
BOOT,AXLE
5931245200
€ 10.50
12
5931445200
ref: 12
BOLT,CALIPER HOUSING
€ 12.00
13
5912118410
ref: 13
BLEEDER
5912118410
€ 8.00
14
5912218410
ref: 14
CAP,BREATHER
5912218410
€ 6.00
15
5932445200
ref: 15
COVER,INDICATOR
5932445200
€ 5.00
16
0151710408
ref: 16
BOLT
€ 3.50
