FRONT WHEEL (GSX750T, GSX750X)

GSX750 1981 (X) (E01 E02 E06 E22 E24)

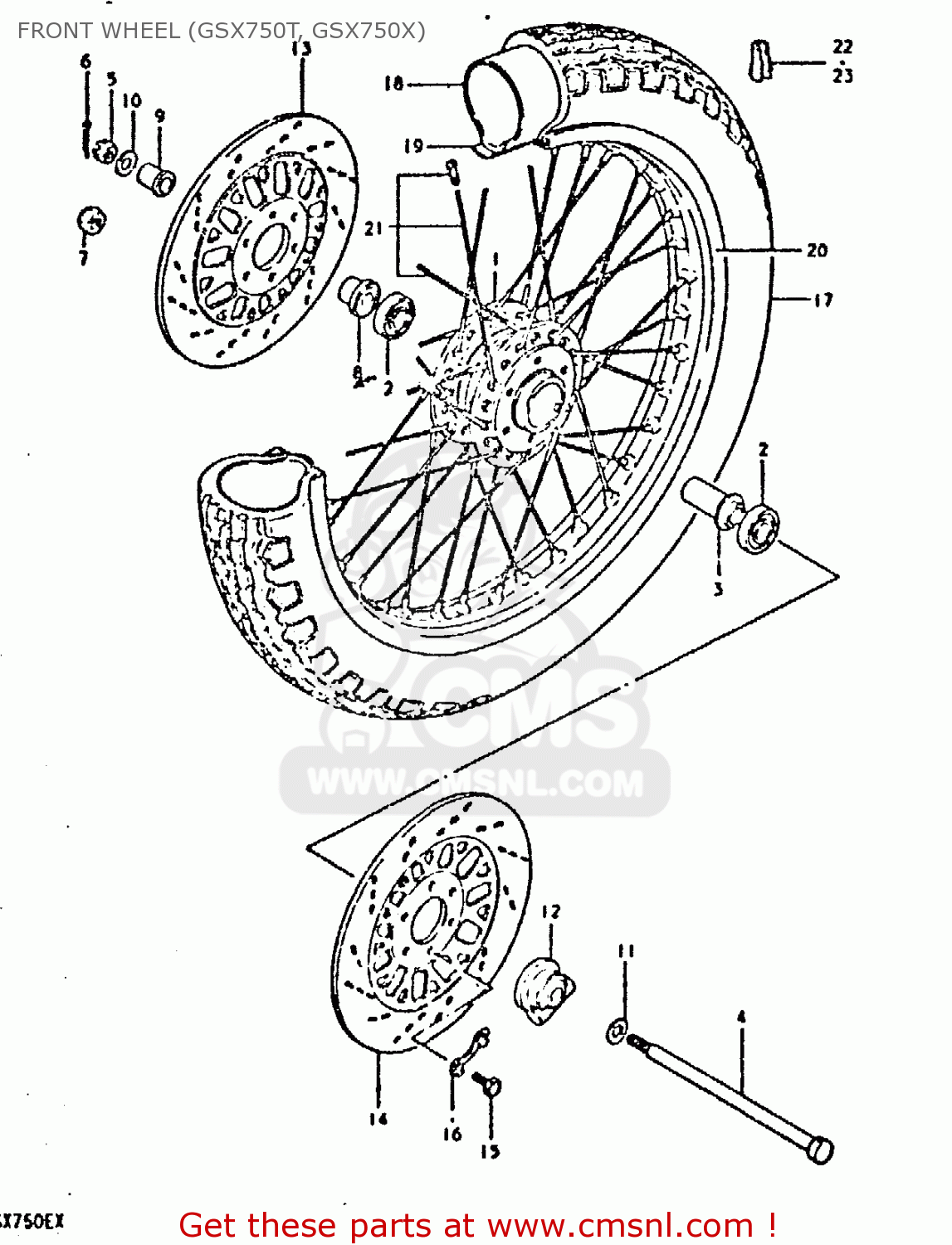

Front wheel (gsx750t, gsx750x) diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

FRONT WHEEL (GSX750T, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT WHEEL (GSX750T, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT WHEEL (GSX750T, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5411147001
ref: 1
DRUM,FRONT HUB
5411147001
€ 194.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
5474018402
ref: 8
SPACER,FR AXLE,R
5474018402
€ 18.50
9
5474149101
ref: 9
SPACER
5474149101
€ 14.00
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
0916015002
ref: 11
WASHER(15.5X26X2.3)
0916015002
€ 2.00
12
5460049100
ref: 12
BOX ASSY,SPEEDOMETER GEAR
5460049100
€ 90.00
13
5921145250
ref: 13
DISC,FR BRAKE,R
5921145250
€ 149.00
14
5922145250
ref: 14
DISC,FR BRAKE,L
5922145250
€ 149.00
15
0910008140
ref: 15
BOLT(8X25)
0910008140
€ 2.00
16
0916908016
ref: 16
WASHER
0916908016
€ 3.50
17-1
5510045031
ref: 17-1
BS, MODEL T
TIRE,FRONT
€ 0.00
17-2
5510047615
ref: 17-2
DUNLOP, MODEL T
TIRE,FRONT
€ 0.00
17-3
5510045430
ref: 17-3
BS, MODEL X
TIRE,FRONT
€ 0.00
18
5520015010
ref: 18
TUBE,INNER
€ 41.00
19
5526115010
ref: 19
PROTECTOR,WHL INR TUBE
5526115010
€ 2.50
20
5531134020
ref: 20
RIM,FR WHEEL
5531134020
€ 144.00
21
5532034805
ref: 21
SPOKE SET,FRONT
5532034805
€ 71.00
22
5541111000
ref: 22
BALANCER,WHEEL (B)
€ 4.50
23
5541211000
ref: 23
BALANCER,WHEEL (30G)
5541211000
€ 8.00
