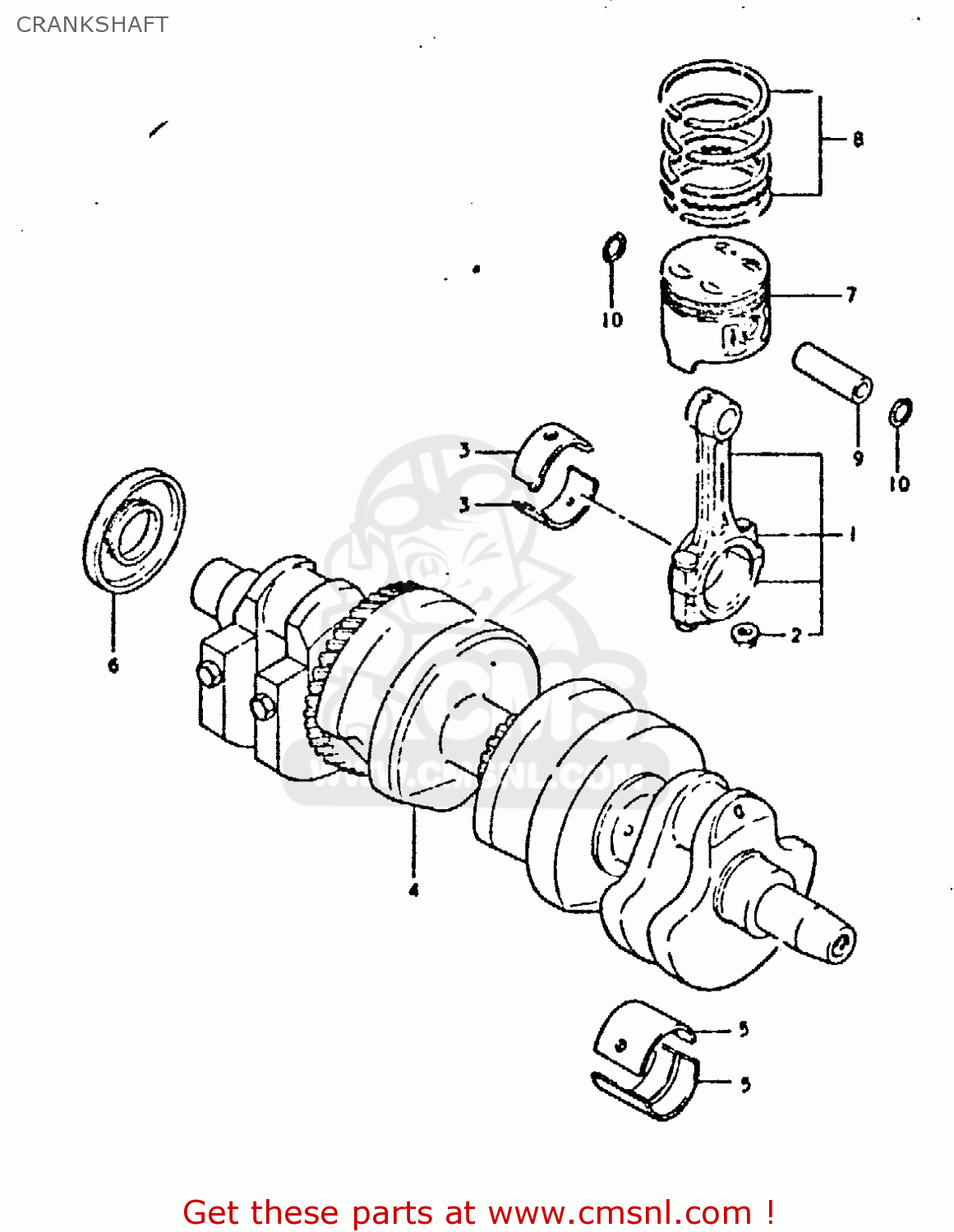

CRANKSHAFT

ref

part #

description

quantity

1

1216045400
ref: 1

CONNECTING ROD ASSEMBLY

€ 91.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216445400010
ref: 3-1
GREEN

BEARING,CRANK PIN

€ 19.00

3-2

1216445400020
ref: 3-2
BLACK

BEARING,CRANK PIN

€ 19.00

3-3

1216445400030
ref: 3-3
BROWN

BEARING,CRANK PIN

€ 19.00

3-4

1216445400040
ref: 3-4
YELLOW

BEARING,CRANK PIN

€ 19.00

3-5

1216445400025
ref: 3-5
US:0.25

BEARING,CRANK PIN

€ 12.00

3-6

1216445400050
ref: 3-6
US:0.5

BEARING,CRANK PIN

€ 10.50

4

1222045402
ref: 4
FROM 12220-45401

CRANKSHAFT

€ 1,178.00

5-1

1222945400010
ref: 5-1
GREEN

METAL CRANKSHAFT

€ 10.00

5-2

1222945400020
ref: 5-2
BLACK

METAL CRANKSHAFT

€ 10.00

5-3

1222945400030
ref: 5-3
BROWN

METAL CRANKSHAFT

€ 10.00

5-4

1222945400040
ref: 5-4
YELLOW

METAL CRANKSHAFT

€ 9.00

5-5

1222945400025
ref: 5-5
US:0.25

BEARING,CRANKSHAFT(US:0.25)

€ 11.50

5-6

1222945400050
ref: 5-6
US:0.5

BEARING,CRANKSHAFT(US:0.5)

€ 10.50

6

0928330031
ref: 6

OIL SEAL

€ 15.00

7-1

1211145401
ref: 7-1
MODEL T

PISTON

€ 68.00

7-2

1211145402
ref: 7-2
MODEL X

PISTON (67.00MM)

€ 68.00

7-3

1211145401050
ref: 7-3
MODEL T

PISTON

€ 89.00

7-4

1211145402050
ref: 7-4
MODEL X

PISTON

€ 89.00

7-5

1211145401100
ref: 7-5
MODEL T

PISTON

€ 72.00

7-6

1211145402100
ref: 7-6
MODEL X

PISTON

€ 72.00

8-1

1214045410
ref: 8-1

RING SET,PISTON

€ 62.50

8-2

1214045410050
ref: 8-2

RING SET,PISTON (OS:0.5)

€ 99.50

8-3

1214045410100
ref: 8-3

RING SET,PISTON (OS:1.0)

€ 89.00

9

1215192201
ref: 9

PIN,PISTON (18MM)

€ 14.00

10

0938118002A
ref: 10

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
