FRONT FORK (GSX750EX, GSX750X)

GSX750 1981 (X) (E01 E02 E06 E22 E24)

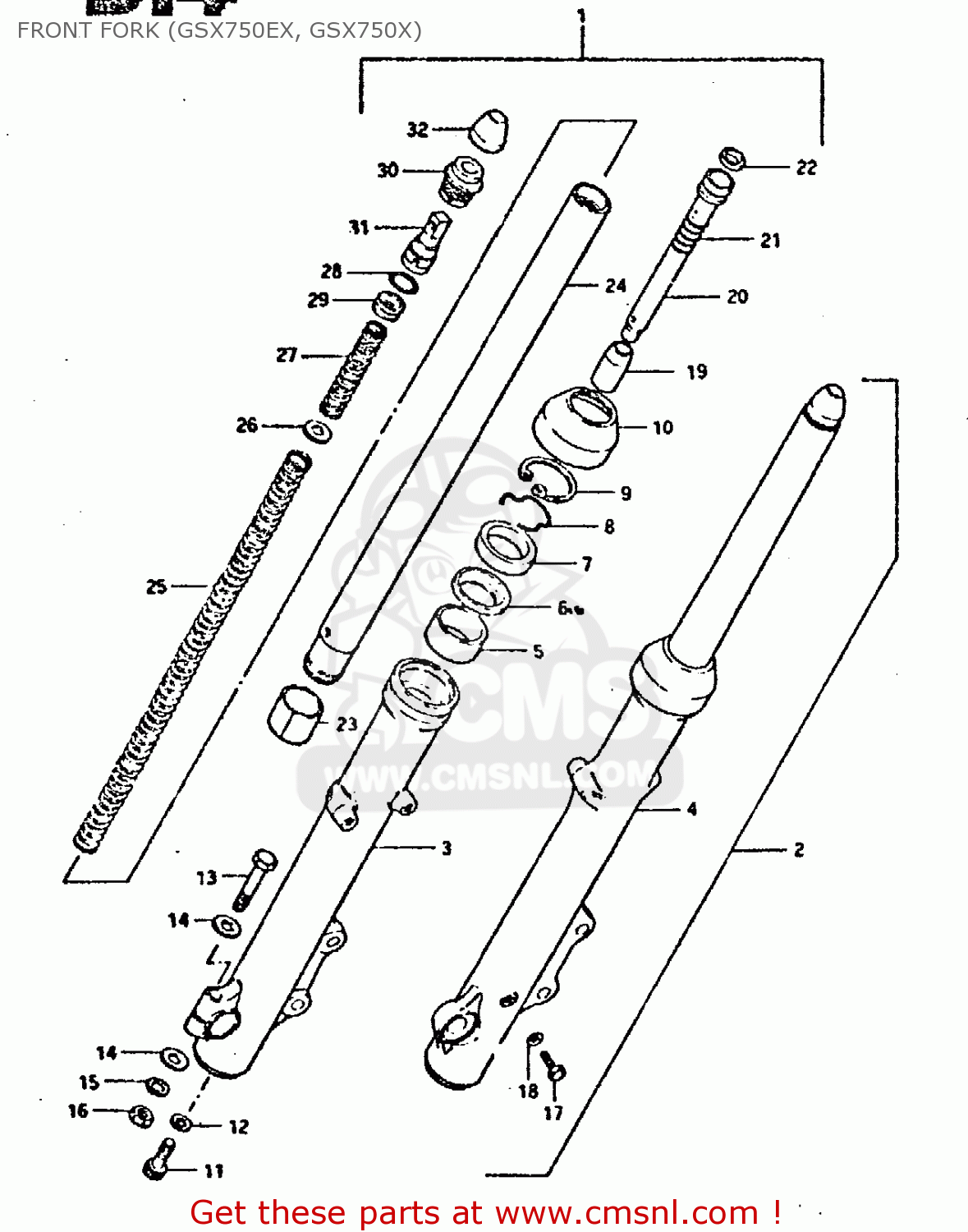

Front fork (gsx750ex, gsx750x) diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

FRONT FORK (GSX750EX, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT FORK (GSX750EX, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
FRONT FORK (GSX750EX, GSX750X) GSX750 1981 (X) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5110345450
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110445450
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113045440
ref: 3
TUBE,FORK,OUTER,RIGHT
5113045440
€ 188.50
4
5114045440
ref: 4
TUBE,FORK,LEFT,OUTER
€ 0.00
5
5115245400
ref: 5
BUSH,GUIDE
5115245400
€ 14.00
6
5116845031
ref: 6
SPACER,SEAL
5116845031
€ 5.00
7
5115334200
ref: 7
OIL SEAL,FRONT FORK
5115334200
€ 14.00
8
5115845440
ref: 8
RING,FR FORK
5115845440
€ 3.00
9
5115645440
ref: 9
CIRCLIP,FORK OIL SEAL
€ 3.50
10
5157134200
ref: 10
BOOT
5157134200
€ 19.50
11
5114748130
ref: 11
BOLT(8X27)
5114748130
€ 3.50
12
5114831030
ref: 12
GASKET (NAS)
5114831030
€ 4.00
13
0110708508
ref: 13
BOLT 8X50
€ 3.00
14
0832221088
ref: 14
WASHER
0832221088
€ 2.00
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0831012088
ref: 16
NUT
0831012088
€ 2.00
17
0910006011
ref: 17
BOLT(6X8)
0910006011
€ 2.50
18
5118331030
ref: 18
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
19
5119545030
ref: 19
PIECE,OIL LOCK
5119545030
€ 16.00
20
5114645450
ref: 20
CYLINDER
€ 0.00
21
5117745030
ref: 21
SPRING,FORK REBOUND
5117745030
€ 4.00
22
5119631230
ref: 22
RING
5119631230
€ 7.50
23
5112145400
ref: 23
PISTON
5112145400
€ 22.00
24
5111045450
ref: 24
INNER, TUBE
5111045450
€ 184.00
25
5118445450
ref: 25
SPRING B
€ 0.00
26
5119247200
ref: 26
WASHER,SPRING
5119247200
€ 2.50
27
5117145450
ref: 27
SPRING A
€ 0.00
28
5111731030
ref: 28
O-RING
€ 3.50
29
5117245450
ref: 29
SEAT, SPRING
€ 6.00
30
5135145450
ref: 30
BOLT
€ 24.50
31
5118545450
ref: 31
ADJUSTER, SPRING
5118545450
€ 22.00
32
5118945450
ref: 32
CAP
5118945450
€ 7.00
