FUEL TANK (MODEL T : 24L)

GSX750 1981 (X) (E01 E02 E06 E22 E24)

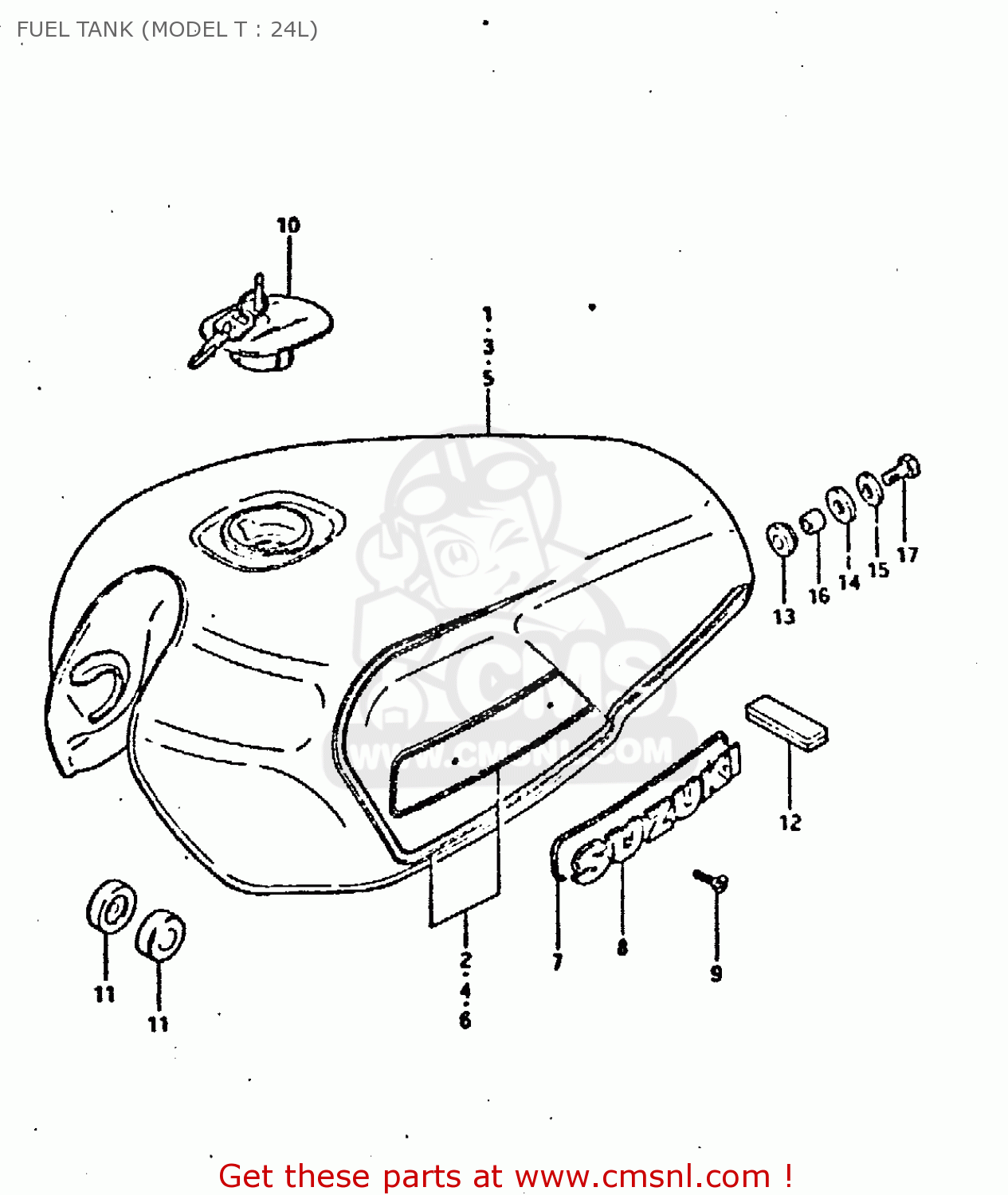

Fuel tank (model t : 24l) diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

FUEL TANK (MODEL T : 24L) GSX750 1981 (X) (E01 E02 E06 E22 E24)

FUEL TANK (MODEL T : 24L) GSX750 1981 (X) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

441004542008E
ref: 1

TANK, FUEL (BLACK)

€ 655.50

2

681104542071P
ref: 2

TAPE SET

€ 54.00

3

441004542007P
ref: 3

TANK, FUEL (RED)

€ 655.50

4

681104542060T
ref: 4

TAPE SET

€ 51.00

5

441004542004Y
ref: 5

TANK, FUEL (BLUE)

€ 655.50

6

681104542065Y
ref: 6

TAPE SET

€ 0.00

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

6811145010
ref: 8

EMBLEM,FUEL TANK

€ 26.00

9

0213203065
ref: 9

SCREW 3X6

€ 2.00

10

4420049701
ref: 10

CAP SET,FUEL TANK

€ 121.00

11

0932910007
ref: 11

CUSHION

€ 3.00

12

0932901005
ref: 12

CUSHION

€ 11.50

13

0932012010
ref: 13

CUSHION

€ 3.00

14

0932012023
ref: 14

CUSHION

€ 2.50

15

0916008002
ref: 15

WASHER (8.5X29X1.6)

€ 2.00

16

0918008067
ref: 16

SPACER(8.5X12X19)

€ 2.50

17

0110708308
ref: 17

BOLT (8X30)

€ 2.50
