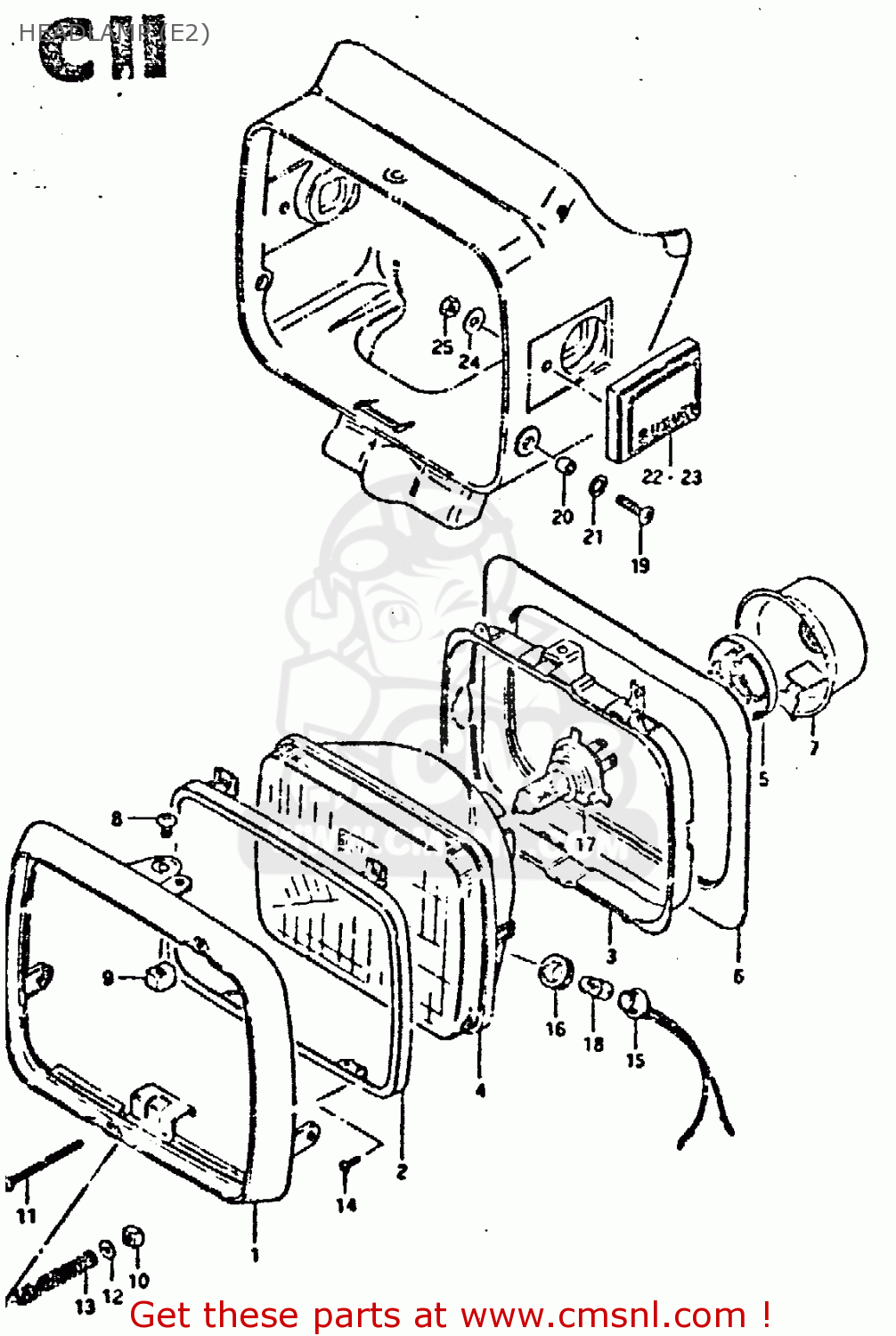

HEADLAMP (E2)

ref

part #

description

quantity

0

3510049220999
ref: 0

HEADLAMP ASSY

€ 0.00

1

3511149200
ref: 1

RIM

€ 83.00

2

3512749200
ref: 2

RETAINER,HEADLAMP

€ 20.00

3

3513049200
ref: 3

RING,HEADLAMP UNIT

€ 31.50

4

3512149220
ref: 4

UNIT

€ 175.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3512949200
ref: 6

SHADE

€ 20.50

7

3517349200
ref: 7

COVER,HEADLAMP SOCKET

€ 12.50

8

0211205128
ref: 8

SCREW

€ 2.50

9

3515249200
ref: 9

NUT,HEADLAMP ADJUSTER

€ 3.00

10

3513545600
ref: 10

NUT

€ 3.00

11

3515149200
ref: 11

SCREW,HEADLAMP ADJUST

€ 4.00

12

3515748510
ref: 12

WASHER

€ 2.50

13

3515449200
ref: 13

SPRING

€ 3.50

14

0211203088
ref: 14

SCREW

€ 1.50

15

3611830691
ref: 15

SOCKET

€ 12.00

16

3611622630
ref: 16

JOINT,RUBBER

€ 5.00

17

0947112060
ref: 17
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0214205167
ref: 19

SCREW

€ 1.50

20

0918005012
ref: 20

SPACER (5.2X8X7.5)

€ 2.50

21

0916808011
ref: 21

GASKET(8.2X12X0.8) (NAS)

€ 2.00

22

3599349200
ref: 22

EMBLEM, FRONT SIDE RH

€ 28.50

23

3599449200
ref: 23

EMBLEM, FRONT SIDE LH

€ 22.50

24

0916005013
ref: 24

WASHER(5.2X16X1)

€ 1.50

25

0831011058
ref: 25

NUT

€ 2.50

all assemblies
