REAR FENDER
GSX750 1981 (X) (E01 E02 E06 E22 E24)

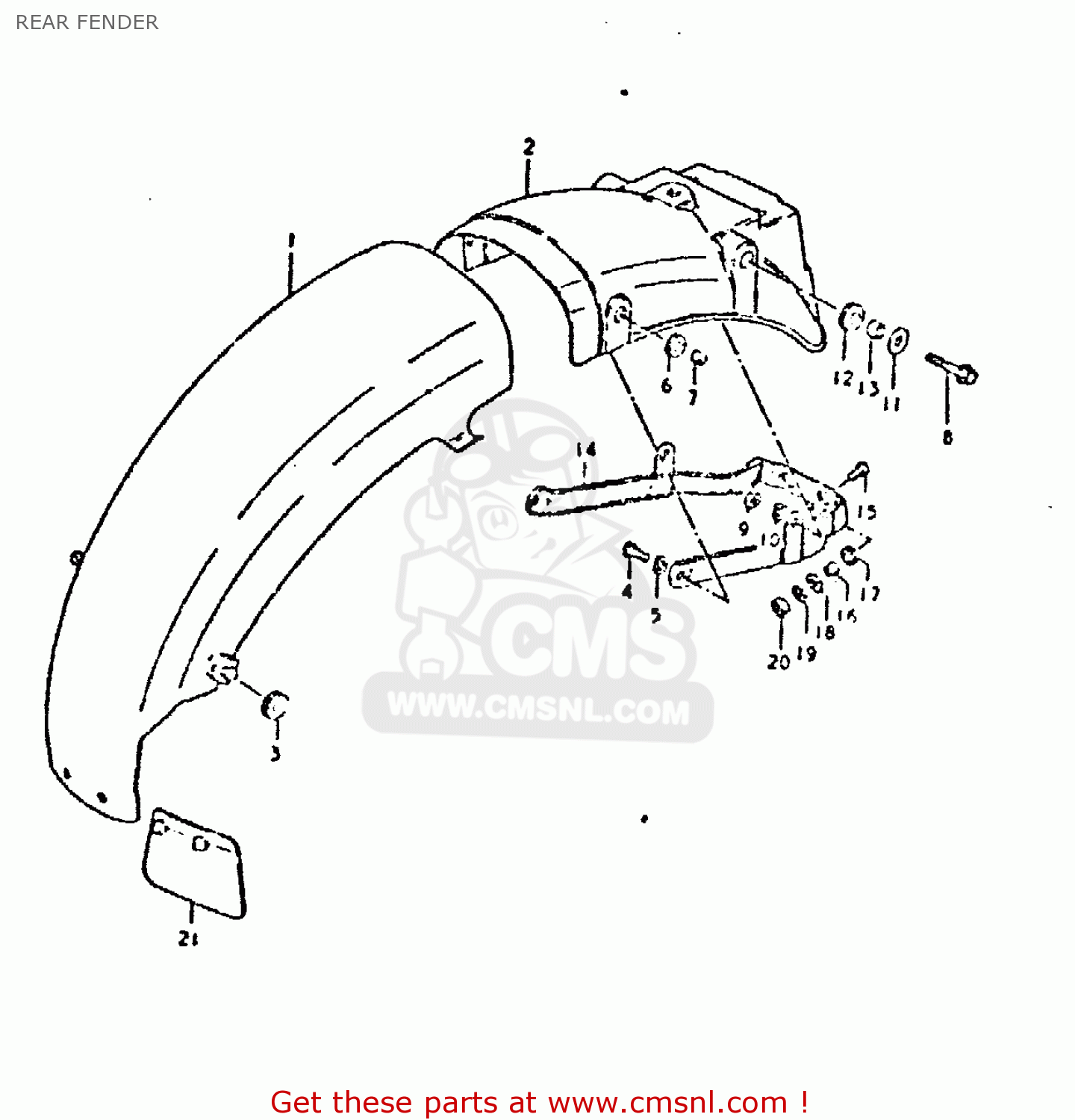

Rear fender diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)
REAR FENDER GSX750 1981 (X) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
6311249001
ref: 1
FENDER,REAR
€ 82.50
2-1
6311345400291
ref: 2-1
FENDER,REAR
€ 91.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0932008013
ref: 3
CUSHION
€ 4.00
4
0110706208
ref: 4
BOLT
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6
0932008007
ref: 6
CUSHION
€ 4.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0151708358
ref: 8
BOLT
€ 3.50
9
0831012088
ref: 9
NUT
€ 2.00
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0916008032
ref: 11
WASHER(8.5X26X1.2)
€ 3.50
12
0932012011
ref: 12
CUSHION
€ 3.00
13
0918008021
ref: 13
SPACER (8.2X12X7.5)
€ 3.00
14
6312049000
ref: 14
REINFORCEMENT,REAR FENDER
€ 28.50
15
0214206207
ref: 15
SCREW
€ 2.00
16
0918006011
ref: 16
SPACER (6.1X9X9)
€ 2.00
17
0932008013
ref: 17
CUSHION
€ 4.00
18
0916006012
ref: 18
WASHER(6,5X22X1.6)
€ 2.00
19
0832121068
ref: 19
LOCK WASHER
€ 2.50
20
0831011068
ref: 20
NUT
€ 2.50
21
6341131900
ref: 21
GUIDE,RR FENDER MUD
€ 8.00
