CYLINDER

GSX750 1981 (X) (E01 E02 E06 E22 E24)

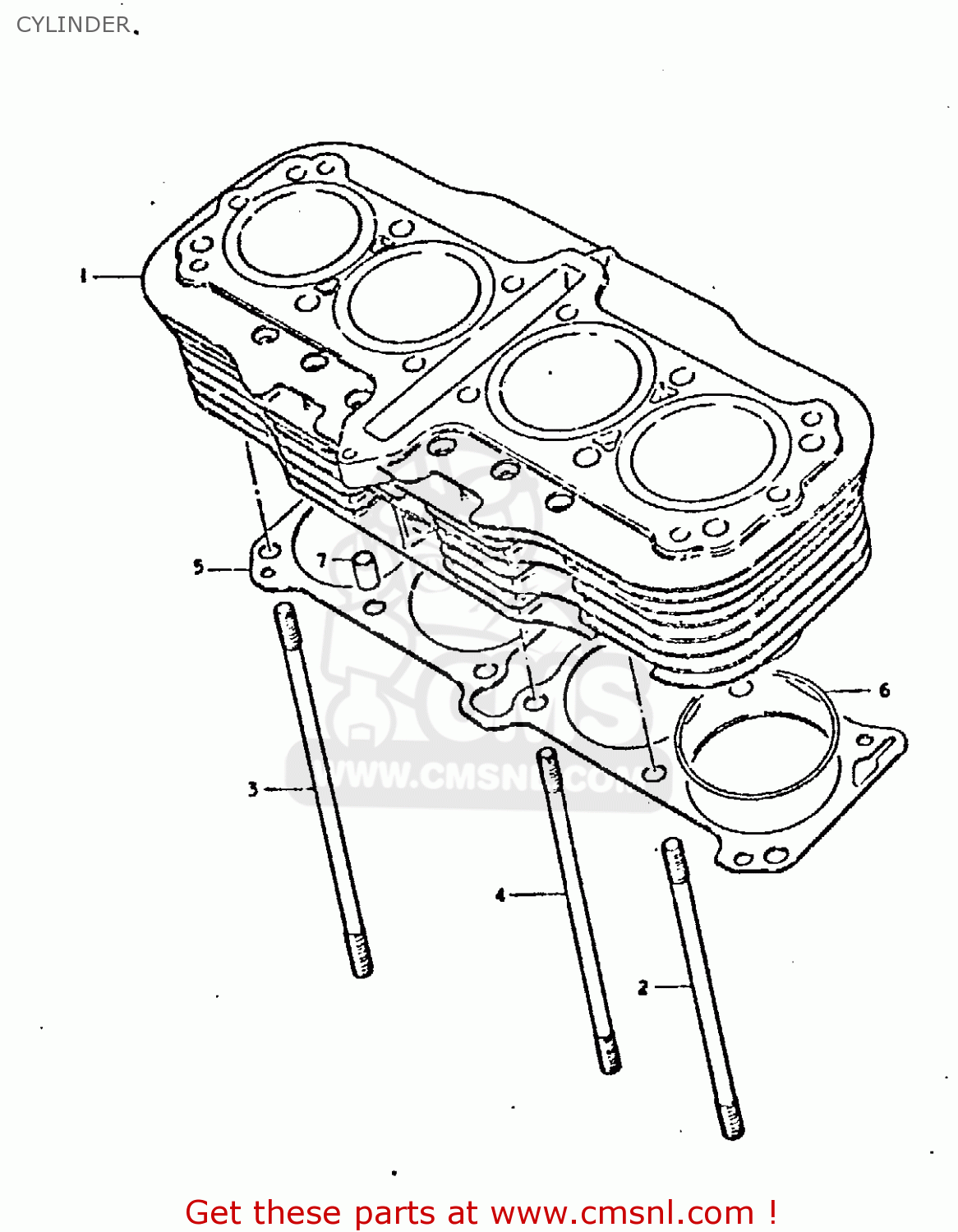

Cylinder diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

CYLINDER GSX750 1981 (X) (E01 E02 E06 E22 E24)

CYLINDER GSX750 1981 (X) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1121045400
ref: 1

CYLINDER

€ 785.50

2

0910810032
ref: 2

STUD

€ 5.50

3

0910810034
ref: 3

STUD

€ 7.00

4

0910810033
ref: 4

STUD

€ 12.50

5

1124145400
ref: 5

GASKET,CYLINDER (MCA)

€ 23.50

6

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

7

0920613006
ref: 7

PIN

€ 9.00
