REAR SWINGING ARM

GSX750 1981 (X) (E01 E02 E06 E22 E24)

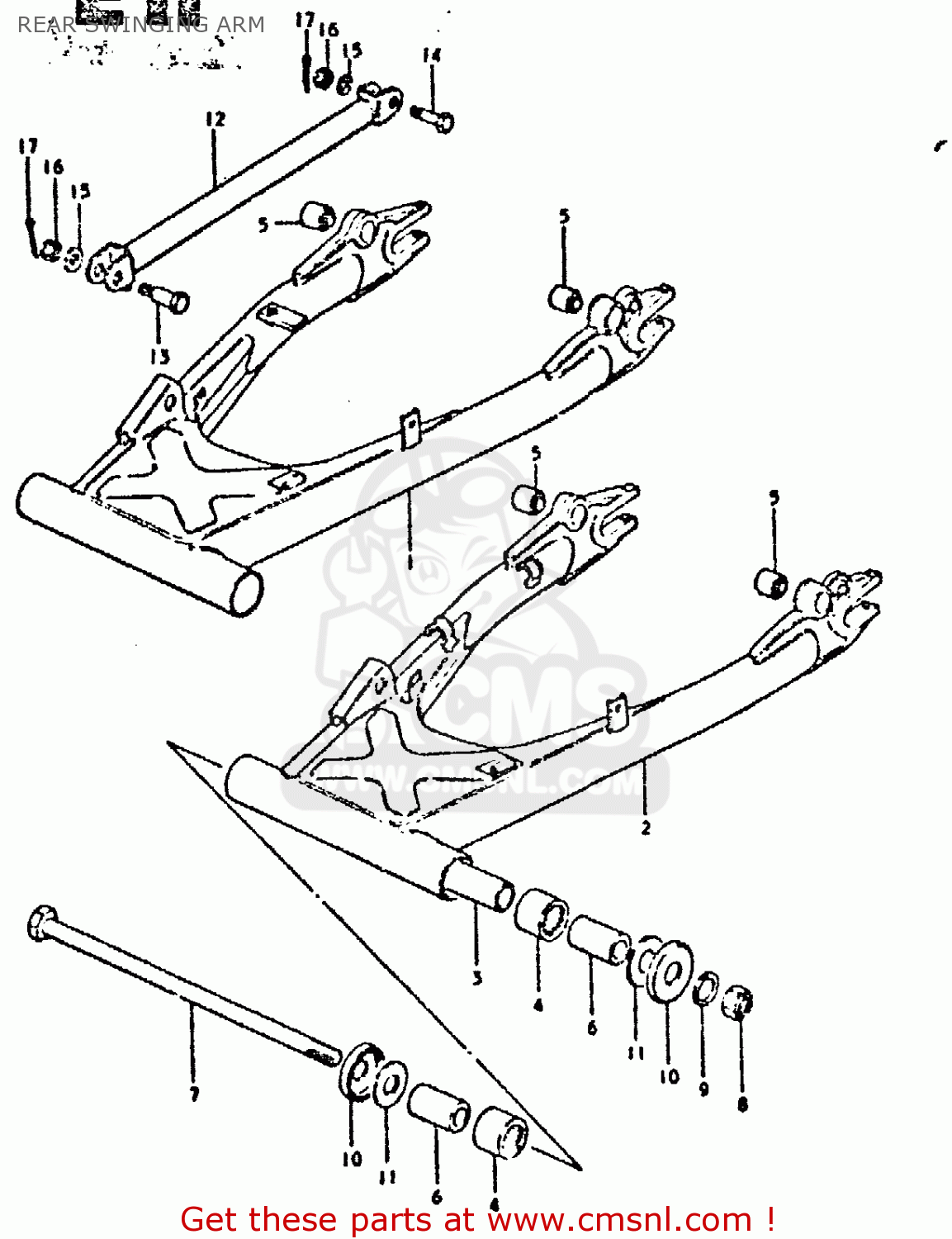

Rear swinging arm diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

REAR SWINGING ARM GSX750 1981 (X) (E01 E02 E06 E22 E24)

REAR SWINGING ARM GSX750 1981 (X) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6110045840019
ref: 1
WITH 69480-49002

SWING ARM ASSEMBLY,REAR

€ 222.00

2-1

6110045841019
ref: 2-1
WITH 69480-49003 MOD

SWING ARM ASSEMBLY,REAR

€ 222.00

2-2

6110045860019
ref: 2-2
WITH 61311-49002 MOD

SWING ARM ASSEMBLY,REAR

€ 222.00

3

6128145001
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 19.50

4

0926322017
ref: 4

BEARING(22X29X30)

€ 18.50

5

0931910008
ref: 5

BUSH

€ 8.00

6

6125145001
ref: 6

SPACER,RR SWGARM PIVOT

€ 12.50

7-1

6121131001
ref: 7-1
MODEL T, GS750ET

SHAFT,REAR SWING ARM

€ 62.50

7-2

6121145400
ref: 7-2
MODEL T, GS750T MODE

SHAFT,REAR SWING ARM

€ 49.00

8

0831921148
ref: 8

NUT 14MM

€ 3.00

9

0832211148
ref: 9

WASHER

€ 2.00

10

6126245002
ref: 10

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

11

0916014020
ref: 11

WASHER(14.2X34X1)

€ 2.50

12

6431049000019
ref: 12

LINK,REAR TORQUE

€ 16.00

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
