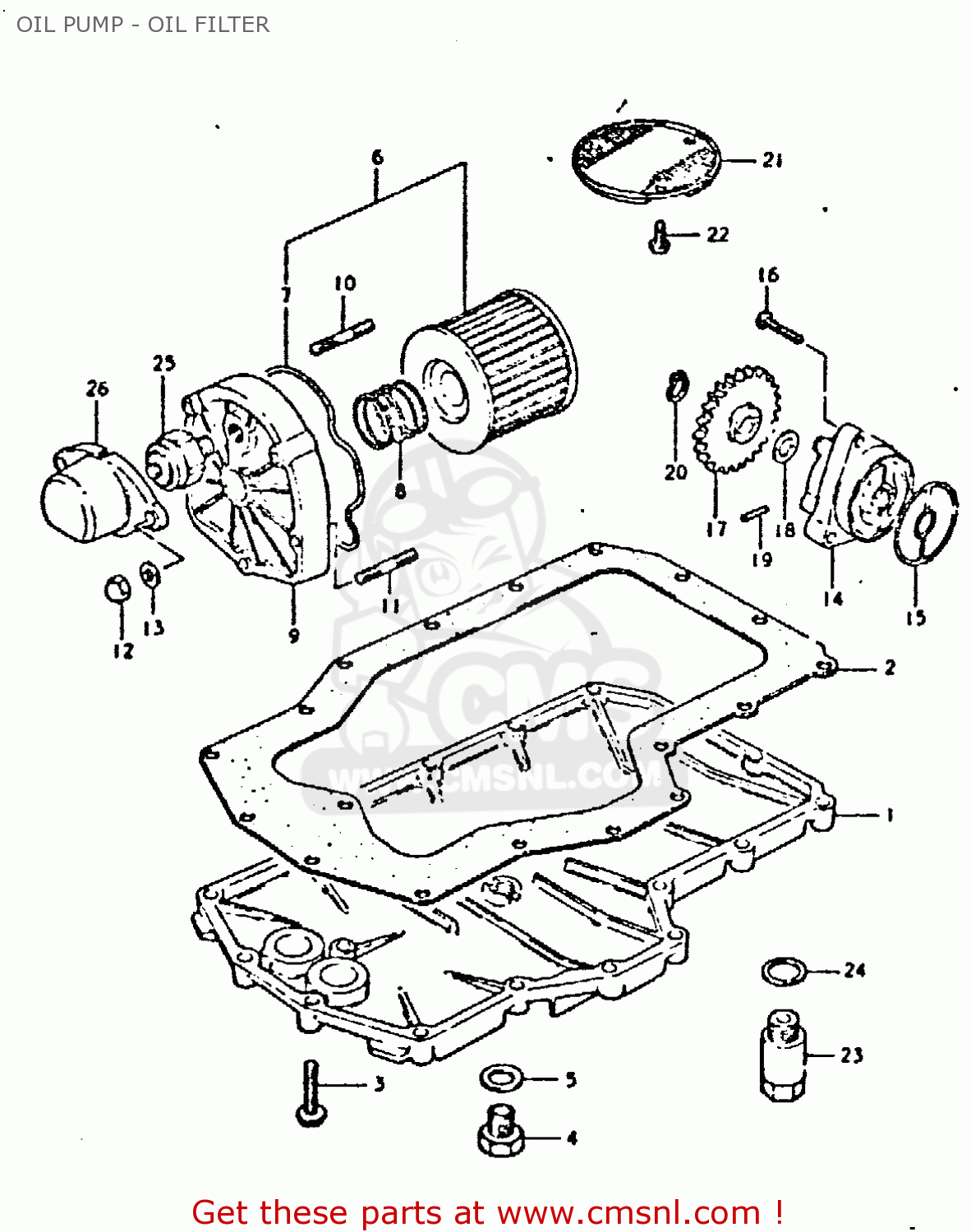

OIL PUMP - OIL FILTER - GSX750 1981 (X) (E01 E02 E06 E22 E24)

ref

part #

description

quantity

1

1151145400
ref: 1

PAN,OIL

€ 600.50

2

1148945400
ref: 2

GASKET,OIL PAN (MCA)

€ 27.50

3

0151706258
ref: 3

BOLT

€ 2.50

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1650045820
ref: 6

FILTER SET, ENGINE OIL

€ 11.50

7

1651849200
ref: 7

O RING,OIL FILTER CHAMBER CAP

€ 8.50

8

0944032004
ref: 8

SPRING

€ 13.50

9

1653145400
ref: 9

CAP,ENGINE OIL FILTER

€ 29.50

10

0142105308
ref: 10

STUD BOLT

€ 0.00

11

0142106258
ref: 11

STUD 6X25

€ 2.50

12

0831311068
ref: 12

NUT

€ 2.00

13

0832221068
ref: 13

WASHER

€ 2.00

14

1640049210
ref: 14

PUMP ASSEMBLY,OIL

€ 155.00

15

1649149200
ref: 15

O-RING,OIL PUMP

€ 12.50

16

0211206258
ref: 16

SCREW

€ 2.00

17

1633145000
ref: 17

GEAR,ENG OIL PUMP DRIVEN

€ 135.50

18

0822110185
ref: 18

SHIM

€ 2.00

19

0926104009
ref: 19

PIN(4X15.8)

€ 1.50

20

0833131109
ref: 20

CIRCLIP

€ 2.00

21

1652045400
ref: 21

STRAINER,ENGINE OIL

€ 9.50

22

0211206128
ref: 22

SCREW 6X12

€ 2.00

23

1644045400
ref: 23

VALVE ASSEMBLY,OIL RELIEF

€ 37.50

24

0821216221
ref: 24

WASHER

€ 6.00

25

3782044100
ref: 25

SWITCH ASSEMBLY

€ 29.00

26

3782145400
ref: 26

COVER,OIL PRESSURE SWITCH

€ 9.00

OIL PUMP - OIL FILTER

all assemblies
