REAR CALIPERS

GSX750 1981 (X) (E01 E02 E06 E22 E24)

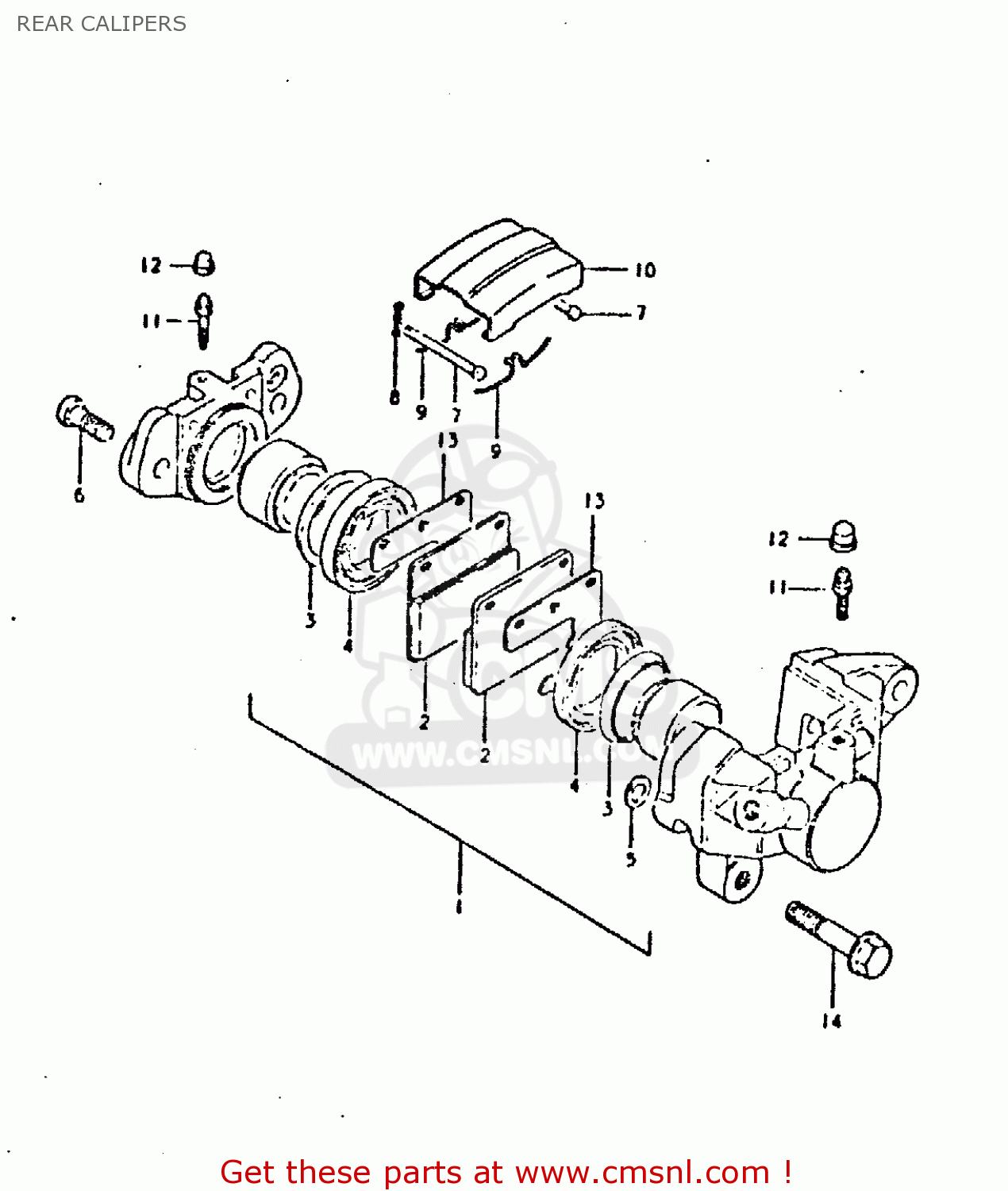

Rear calipers diagram GSX750 1981 (X) (E01 E02 E06 E22 E24)

REAR CALIPERS GSX750 1981 (X) (E01 E02 E06 E22 E24)

REAR CALIPERS GSX750 1981 (X) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

0

6910045020
ref: 0

CALIPER ASSEMBLY,REAR

€ 843.50

1

6910045850
ref: 1

PISTON SET

€ 241.00

2

6913045020
ref: 2

PAD,BRAKE

€ 66.50

3

5910718410
ref: 3

SEAL,PISTON

€ 17.00

4

6910845000
ref: 4

BOOT,PISTON

€ 10.00

5

6910745000
ref: 5

SEAL,PISTON

€ 15.50

6

6914545000
ref: 6

BOLT,HOUSING

€ 7.00

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

6914345001
ref: 9

SPRING

€ 8.00

10

6915145000
ref: 10

COVER,DUST

€ 26.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12

CAP,BREATHER

€ 6.00

13

6915245001
ref: 13

SHIM,RR CALIPER

€ 9.50

14

0152710305
ref: 14

BOLT

€ 3.50
