Buy Suzuki GSXR Parts Online
home
AIR CLEANER
GSXR1100 1989 (K) USA (E03)

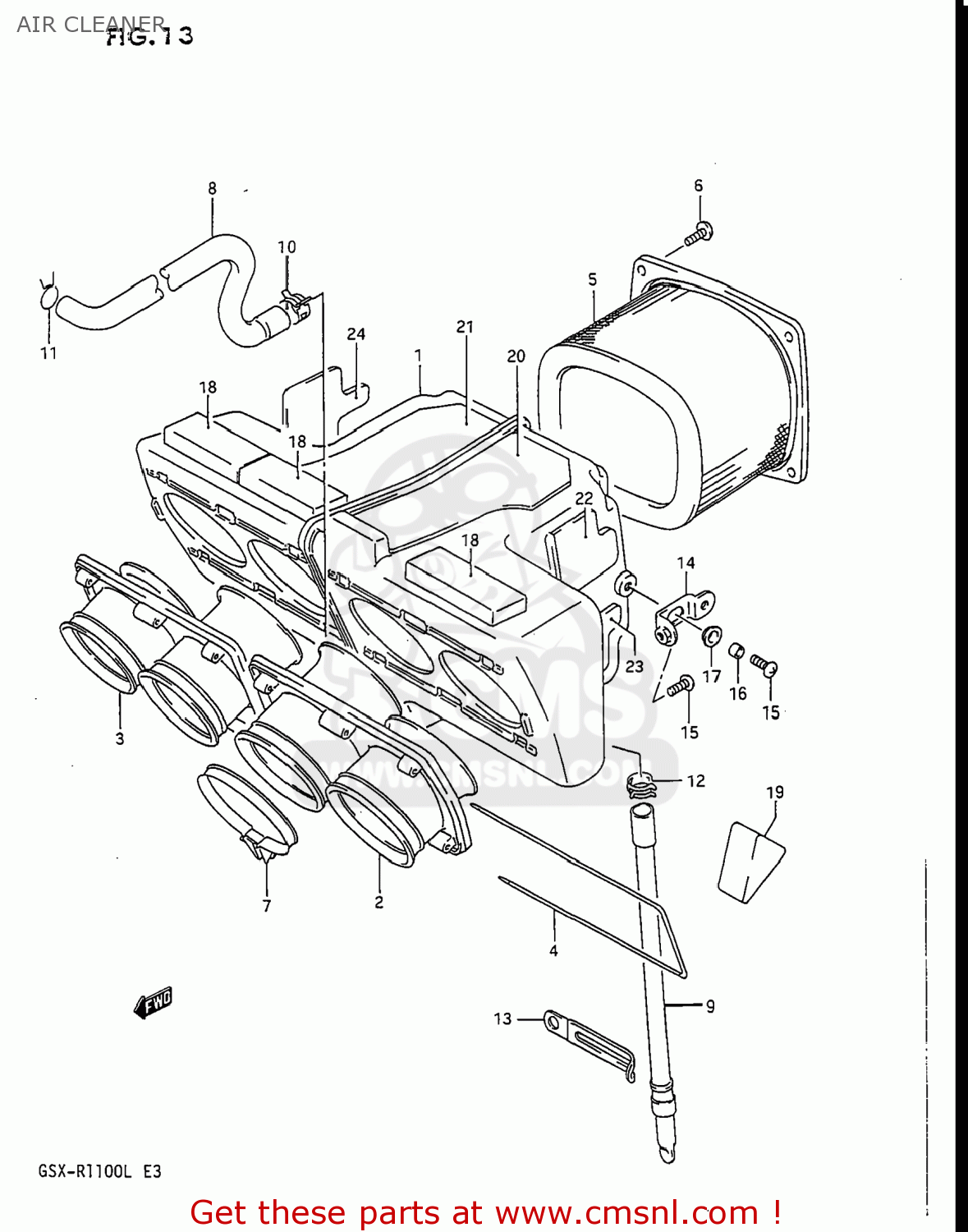

Air cleaner diagram GSXR1100 1989 (K) USA (E03)
AIR CLEANER GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1372017C00
ref: 1
13720-17C10
CASE,AIR CLEANER
€ 137.50
2
1388017C00
ref: 2
TUBE,AIR CLEANER OUTLET LH
€ 81.00
3
1389017C00
ref: 3
TUBE,OUTLET,R
€ 84.00
4
1389917C00
ref: 4
13899-17C01
SHAFT,OUTLET TUBE
€ 10.50
5
1378017C00
ref: 5
FILTER ASSY,AIR CLEANER
€ 49.50
6
0214205164
ref: 6
02142-0516A
SCREW
€ 2.50
7
0940266208
ref: 7
CLAMP
€ 6.50
8
1385440C00
ref: 8
TUBE,BREATHER
€ 25.50
9
1387011417
ref: 9
13870-11458
DRAIN TUBE
€ 13.50
10
0940113406
ref: 10
09401-13404
CLIP
€ 2.50
11
1382448B10
ref: 11
09401-16401
CLIP
€ 3.00
12
0940116402
ref: 12
09401-16403
CLIP
€ 2.00
13
0940410404
ref: 13
09404-10417
CLAMP
€ 2.50
14
1376017C01
ref: 14
BRACKET,AIR CLEANER CASE
€ 7.00
15
0214206166
ref: 15
02142-0616A
SCREW
€ 2.50
16
0918006142
ref: 16
09180-06255
SPACER
€ 1.50
17
0916109003
ref: 17
09161-09006
WASHER
€ 2.50
18
1384817C00
ref: 18
CUSHION,AIR CLEANER CASE
€ 3.50
19
1389717C00
ref: 19
CUSHION,AIR VENT HOSE
€ 9.00
20
1384217C10
ref: 20
SHEET,AIR CLEANER NO.1
€ 14.50
21
1384317C10
ref: 21
SHEET,AIR CLEANER NO.2
€ 13.00
22
1384417C10
ref: 22
SHEET,AIR CLEANER NO.3
€ 6.50
23
1384517C10
ref: 23
SHEET,AIR CLEANER NO.4
€ 6.50
24
1384617C10
ref: 24
SHEET,AIR CLEANER NO.5
€ 0.00
