TURNSIGNAL LAMP
GSXR1100 1989 (K) USA (E03)

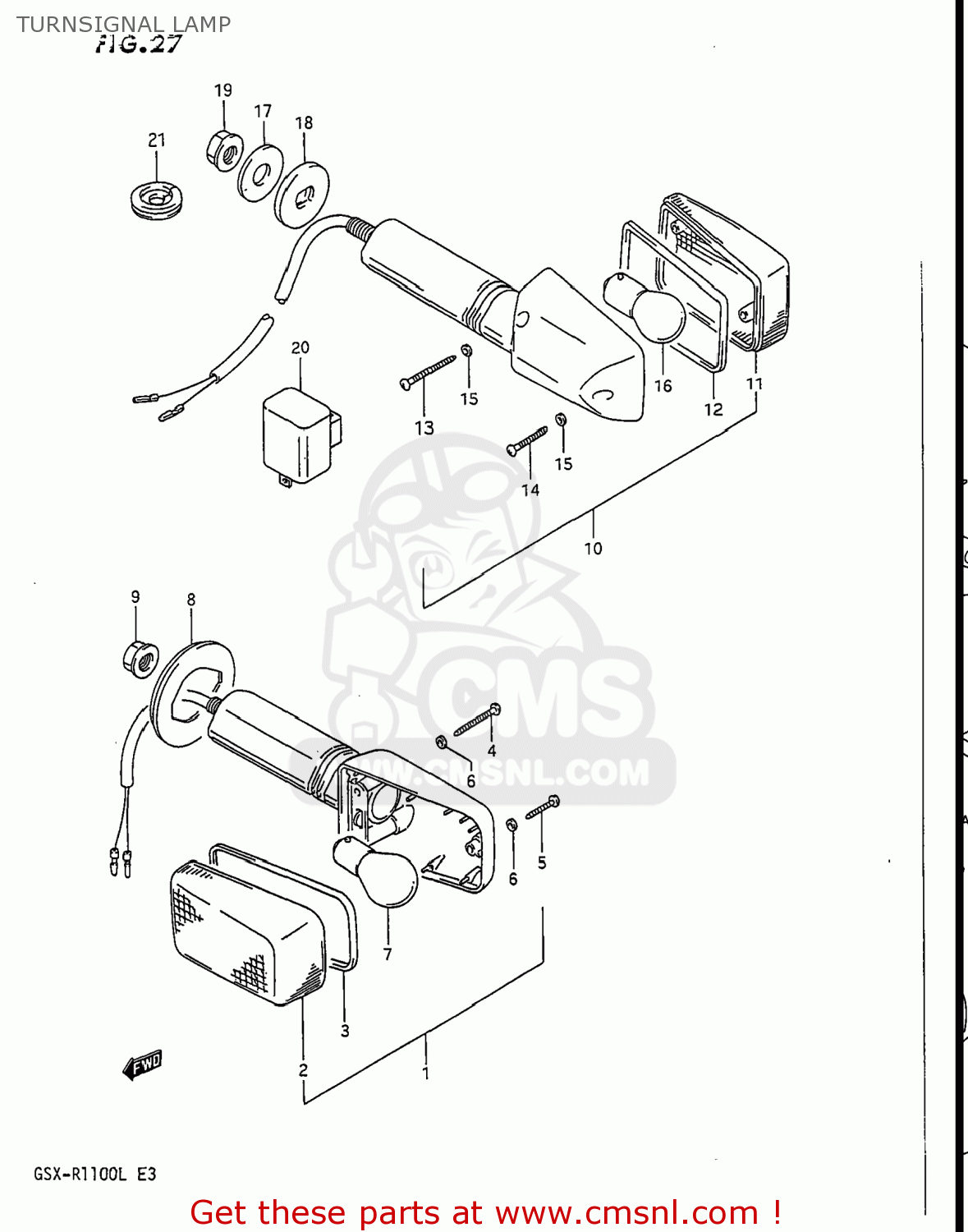

Turnsignal lamp diagram GSXR1100 1989 (K) USA (E03)
TURNSIGNAL LAMP GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560117C21
ref: 1
35601-01D10
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 70.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3567427A01
ref: 8
GROMMET
€ 13.50
9
0831626105
ref: 9
08316-2010B
NUT
€ 3.50
10
3560117C41
ref: 10
LAMP ASSY,FR TURN SIGNAL
€ 112.00
11
3561217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17
0916010094
ref: 17
WASHER(10.5X30X3.2)
€ 3.50
18
3569517C00
ref: 18
SPACER,RR TURNSIGNAL
€ 3.00
19
0831626105
ref: 19
08316-2010B
NUT
€ 3.50
20
3861031310
ref: 20
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
21-1
0930807011
ref: 21-1
GROMMET
€ 3.50
21-2
0930807013
ref: 21-2
GROMMET
€ 3.50
