FOOTREST
GSXR1100 1989 (K) USA (E03)

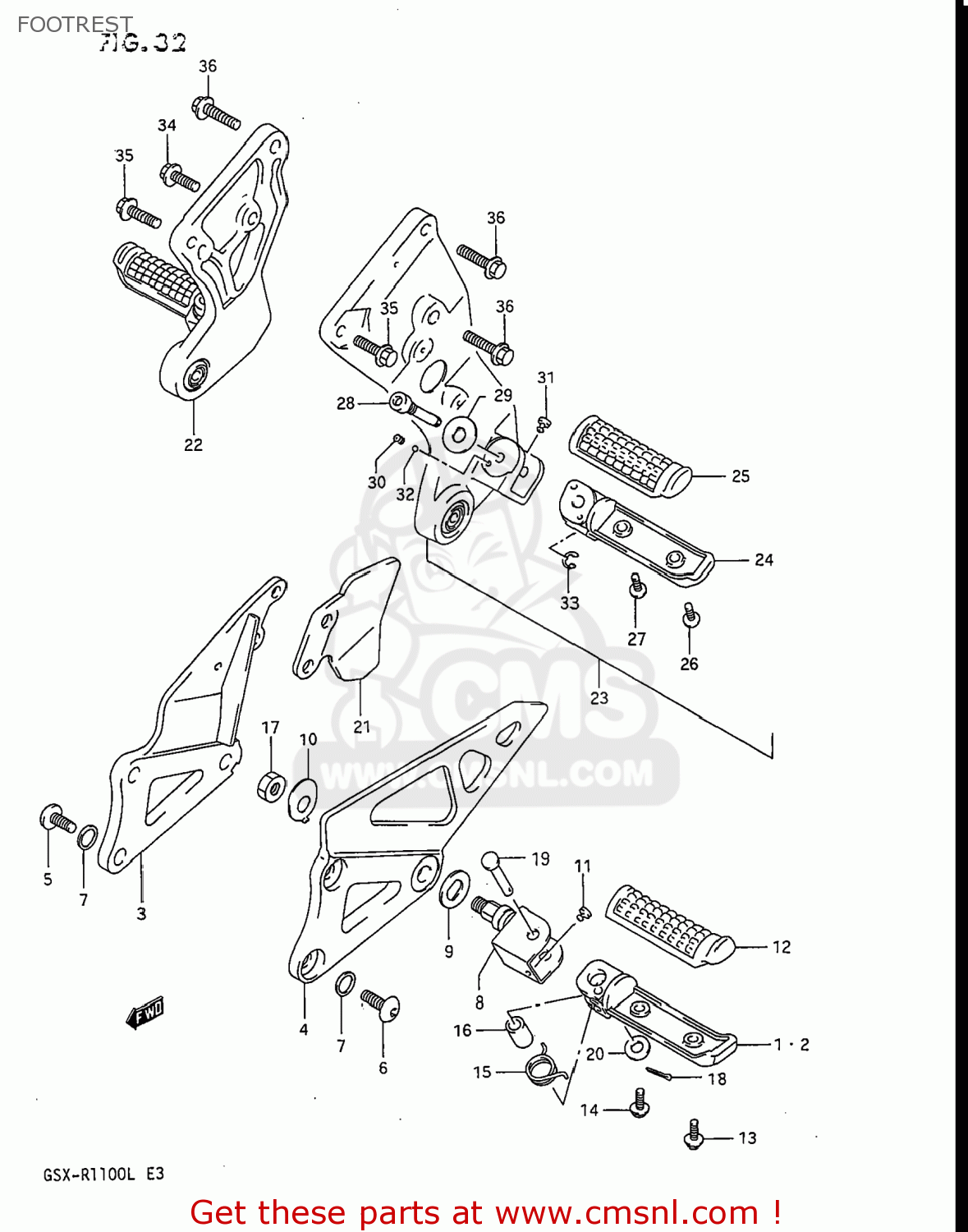

Footrest diagram GSXR1100 1989 (K) USA (E03)
FOOTREST GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351140C00
ref: 1
BAR,FOOTREST,R
€ 37.50
2
4352140C00
ref: 2
BAR,FOOTREST,L
€ 37.50
3-1
4351017C03
ref: 3-1
43510-17C04
BRACKET,FRONT FOOTREST
€ 92.50
3-2
4351117D00
ref: 3-2
43511-17D01
BAR,FRONT FOOTREST
€ 133.50
4-1
4352217C02
ref: 4-1
43522-17D01
BRACKET,FOOTREST,LEFT
€ 131.00
4-2
4352217D00
ref: 4-2
43522-17D01
BRACKET,FOOTREST,LEFT
€ 131.00
5
4352940C00
ref: 5
09139-10004
BOLT,FRONT FOOTREST
€ 5.50
6
4352917C10
ref: 6
09106-10050
BOLT,FOOTREST BRACKET
€ 3.50
7
0916410005
ref: 7
09164-10010
WASHER
€ 6.50
8
4353040C00
ref: 8
43530-40C01
HOLDER,FOOTREST,RIGHT
€ 61.50
9
4321317C01
ref: 9
PLATE,FOOTREST INNER
€ 4.50
10
4321417C01
ref: 10
WASHER,FR FOOTREST
€ 52.50
11
4354140C00
ref: 11
CUSHION,FOOTREST
€ 10.00
12-1
4355040C10
ref: 12-1
43550-40C11
RUBBER,FOOTREST
€ 16.00
12-2
4355040C11
ref: 12-2
RUBBER,FOOTREST
€ 16.00
13
0211275168
ref: 13
02112-7516A
SCREW
€ 2.50
14
0211275208
ref: 14
02112-75207
SCREW
€ 3.00
15
0944819020
ref: 15
09448-18022
SPRING
€ 3.50
16
0918008149
ref: 16
SPACER(8.1X12X22)
€ 7.00
17
0831022127
ref: 17
09140-12039
NUT 12MM
€ 3.00
18
0411125158
ref: 18
04111-2515A
PIN 20X15
€ 1.50
19
0920008057
ref: 19
PIN
€ 3.00
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21-1
4358640C00
ref: 21-1
43586-40C02
GUARD,FRONT FOOTREST,RIGHT
€ 50.00
21-2
4358640C01
ref: 21-2
43586-40C02
GUARD,FRONT FOOTREST,RIGHT
€ 50.00
22
4360040C00
ref: 22
FOOTREST ASSY,PILLION,R
€ 164.50
23
4370040C00
ref: 23
FOOTREST ASSY,PILLION,L
€ 164.50
24-1
4361040C00
ref: 24-1
BAR,PILLION FOOTREST,R
€ 49.00
24-2
4362040C00
ref: 24-2
BAR,PILLION FOOTREST,L
€ 49.00
25-1
4355040C10
ref: 25-1
43550-40C11
RUBBER,FOOTREST
€ 16.00
25-2
4355040C11
ref: 25-2
RUBBER,FOOTREST
€ 16.00
26
0211275168
ref: 26
02112-7516A
SCREW
€ 2.50
27
0211275208
ref: 27
02112-75207
SCREW
€ 3.00
28
4364240C00
ref: 28
BOLT,PILLION FOOTREST
€ 5.50
29
0916010031
ref: 29
09160-10126
WASHER
€ 2.50
30
0944005003
ref: 30
SPRING
€ 1.50
31
4354140C00
ref: 31
CUSHION,FOOTREST
€ 10.00
32
0611107004
ref: 32
BALL
€ 1.50
33
0833211068
ref: 33
08332-1106A
E RING 6MM
€ 2.00
34
0151708205
ref: 34
01550-0820A
BOLT
€ 3.00
35
0151708254
ref: 35
01550-0825A
BOLT
€ 2.50
36
0151708304
ref: 36
01550-0830A
BOLT
€ 3.00
