TAIL LAMP - LICENSE LAMP
GSXR1100 1989 (K) USA (E03)

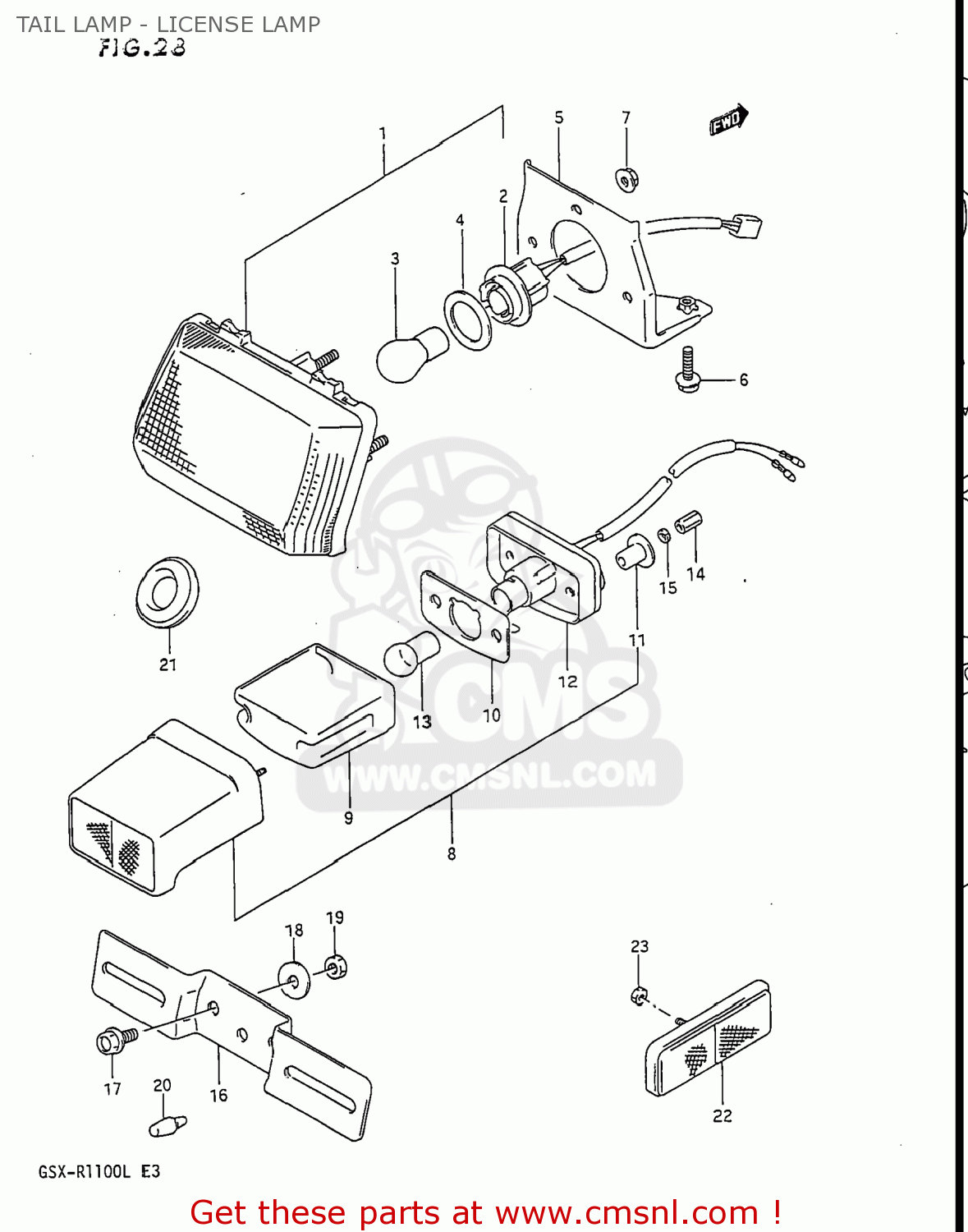

Tail lamp - license lamp diagram GSXR1100 1989 (K) USA (E03)
TAIL LAMP - LICENSE LAMP GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571017C00
ref: 1
35710-17X50
LAMP ASSEMBLY,REAR COMBINATION
€ 127.50
2
3571817C00
ref: 2
SOCKET
€ 0.00
3
0947112128
ref: 3
BULB(12V21/5W,BF141-49642A)
€ 6.00
4
3576448B20
ref: 4
CUSHION,RUBBER
€ 2.50
5
3573017C00
ref: 5
BRACKET COMP,REAR COMBINATION LAMP
€ 12.50
6
0151706128
ref: 6
01550-06127
BOLT
€ 2.50
7
0831626066
ref: 7
08316-1006B
NUT
€ 2.00
8
3591017C00
ref: 8
LAMP ASSEMBLY,LICENSE
€ 127.50
9
3591238A30
ref: 9
LENS
€ 11.50
10
3591338A30
ref: 10
GASKET,LICENSE LAMP (NAS)
€ 2.00
11
3576617C00
ref: 11
SPACER
€ 3.00
12
3591517C00
ref: 12
HOUSING,LICENSE
€ 50.00
13-1
0947112139
ref: 13-1
09471-12058
BULB
€ 4.00
13-2
0947112058
ref: 13-2
BULB
€ 4.00
14
0914004006
ref: 14
NUT
€ 4.00
15
0832121046
ref: 15
08321-0104A
LOCK WASHER
€ 2.00
16
3592700A10
ref: 16
BRACKET,LICENSE PLATE
€ 6.00
17
0151706164
ref: 17
01550-0616A
BOLT
€ 2.50
18
0916006020
ref: 18
09160-06066
WASHER
€ 2.00
19
0831626066
ref: 19
08316-1006B
NUT
€ 2.00
20
0932106023
ref: 20
CUSHION
€ 2.00
21
0925030010
ref: 21
72999-67H00
CAP OD:40
€ 3.50
22
3597000A21
ref: 22
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
23
0831022055
ref: 23
09140-05006
NUT 5MM
€ 2.00
