FUEL TANK (MODEL L)
GSXR1100 1989 (K) USA (E03)

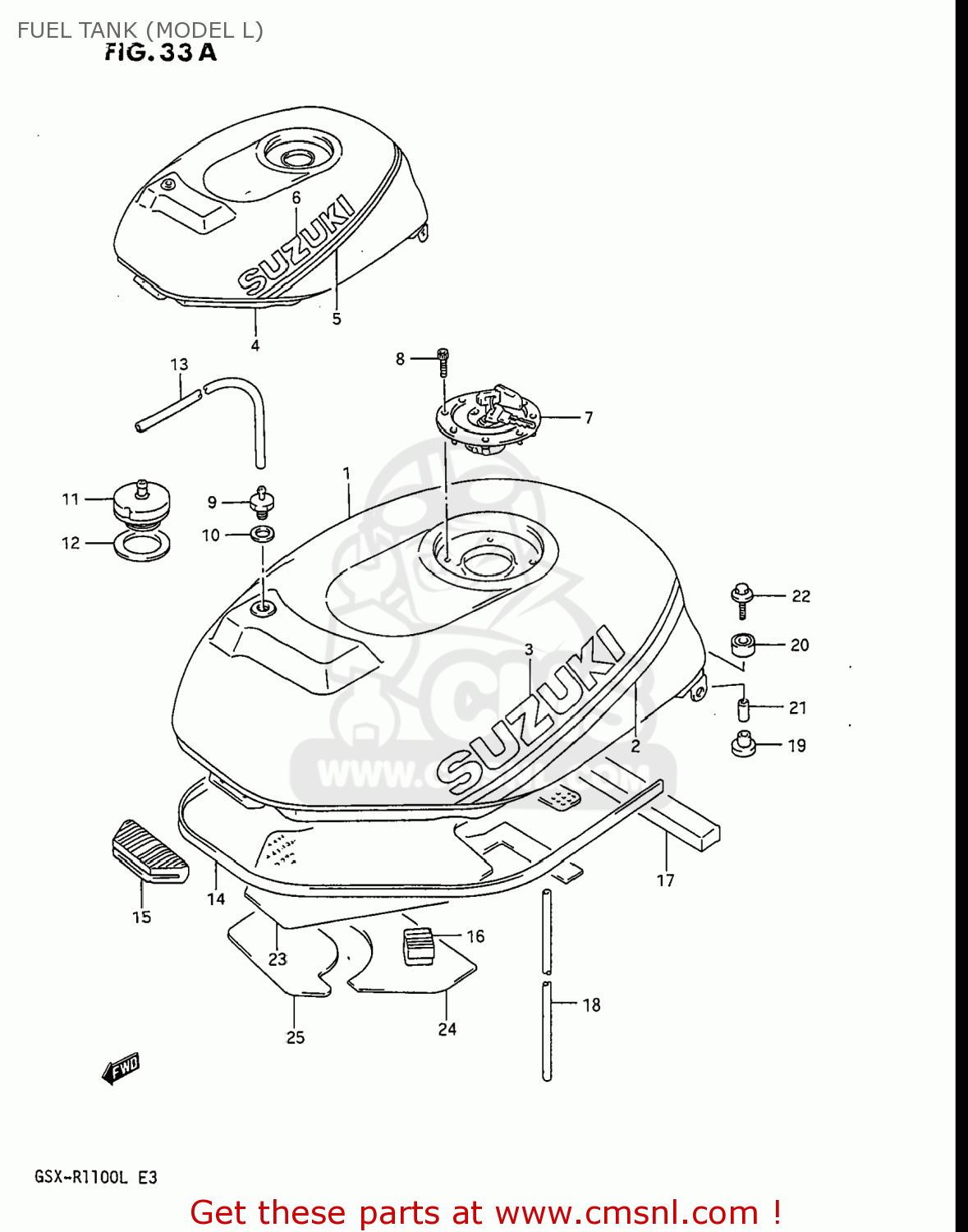

Fuel tank (model l) diagram GSXR1100 1989 (K) USA (E03)
FUEL TANK (MODEL L) GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4910040C203SH
ref: 1-1
49100-40C80-3SH
TANK ASSEMBLY,FUEL
€ 1,256.00
1-2
4410041C103SH
ref: 1-2
TANK ASSEMBLY,FUEL
€ 454.50
2
6811540C303SM
ref: 2
TAPE,FUEL TANK STRIPE
€ 38.00
3
68111434000NE
ref: 3
EMBLEM,FUEL TANK
€ 12.50
4-1
4910040C703CG
ref: 4-1
49100-40C91-3CG
TANK ASSEMBLY,FUEL
€ 1,256.00
4-2
4410041C203CG
ref: 4-2
44100-41C21-3CG
TANK ASSEMBLY,FUEL
€ 454.50
5
6811517D103CG
ref: 5
68115-17D11-3CG
TAPE,FUEL TANK
€ 55.00
6
6811112C00742
ref: 6
68111-12C30-13L
EMBLEM,FUEL TANK
€ 18.00
7
4420101851
ref: 7
44201-01852
CAP SET,FUEL TANK
€ 166.50
8
0910605017
ref: 8
BOLT(5X20)
€ 3.00
9
4424006B10
ref: 9
PLUG,FUEL TANK BREATHER
€ 36.00
10
0916812012
ref: 10
GASKET(12.5X20X2.5) (NAS)
€ 2.00
11
4424028A01
ref: 11
(CA) VALVE,FUEL TANK BREATHER
€ 65.00
12
0916827001
ref: 12
GASKET 27X40X2.5 (NAS)
€ 2.50
13
0935250823600
ref: 13
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
14
6824127A00
ref: 14
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
15
4451117C00
ref: 15
CUSHION,FUEL TANK FR
€ 8.50
16
4454540C00
ref: 16
CUSHION,TANK,S
€ 9.50
17
4415117C00
ref: 17
13841-17E00
CUSHION, AIR SEAL
€ 18.00
18
093525082300A
ref: 18
09352-50823-00B
HOSE
€ 13.00
19
0932010038
ref: 19
CUSHION
€ 4.00
20
0932014017
ref: 20
CUSHION
€ 3.00
21
0918006072
ref: 21
09180-06271
SPACER
€ 2.00
22
0911606097
ref: 22
BOLT(6X35)
€ 2.50
23
4419117C01
ref: 23
HEAT SHIELD,FUEL TANK
€ 30.50
24
4419140C00
ref: 24
HEAT SHIELD,FUEL TANK IN
€ 16.00
25
4419140C10
ref: 25
HEAT SHIELD,FUEL TANK IN
€ 39.00
