OIL PUMP

GSXR1100 1989 (K) USA (E03)

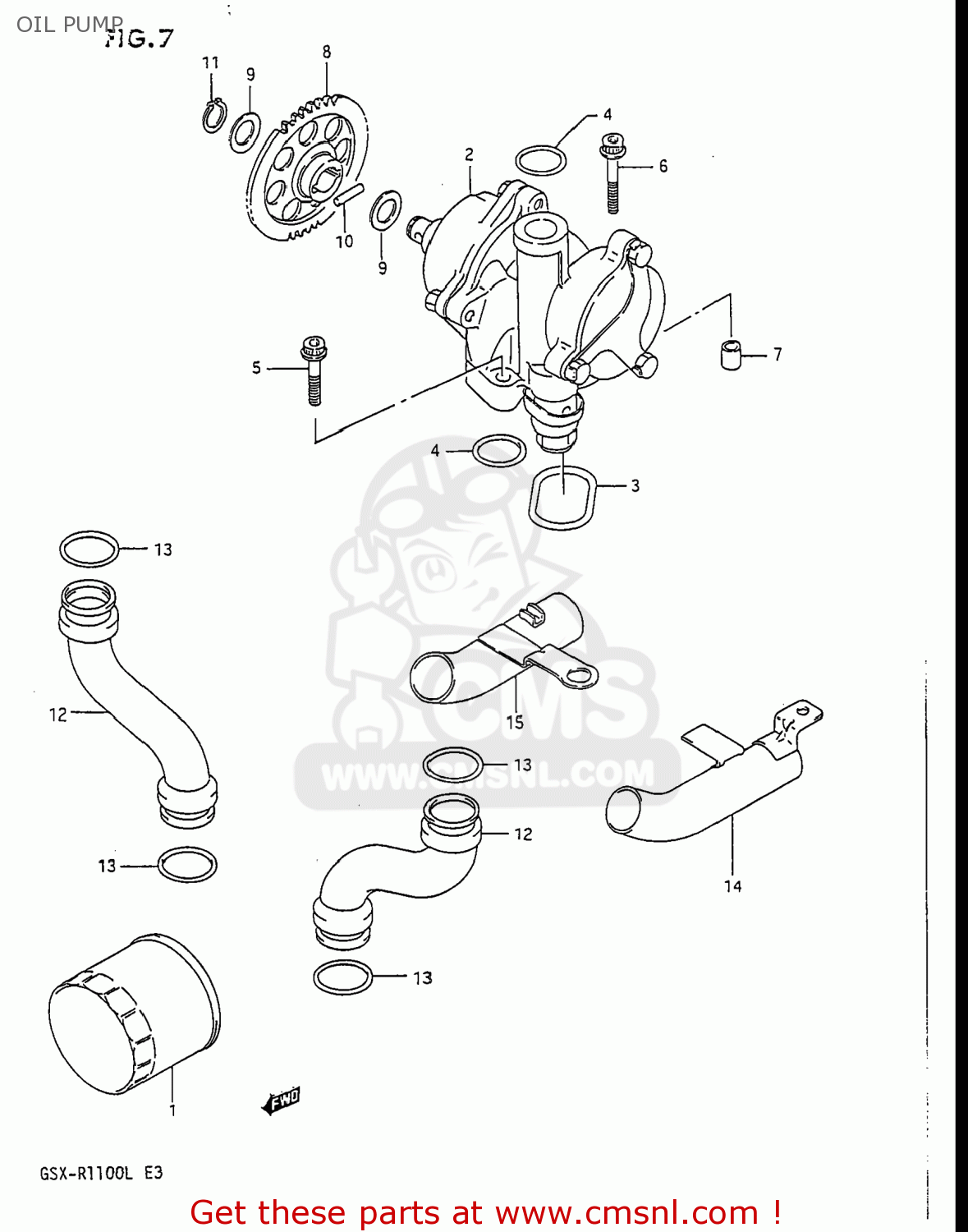

Oil pump diagram GSXR1100 1989 (K) USA (E03)

OIL PUMP GSXR1100 1989 (K) USA (E03)

OIL PUMP GSXR1100 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1651006B00
ref: 1
16510-07J00

FILTER,OIL

€ 12.50

2

1640006B10
ref: 2
16400-06B01

PUMP ASSEMBLY,OIL

€ 348.50

3

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5

0712006308
ref: 5
07120-06307

BOLT

€ 2.50

6

0712006358
ref: 6
07120-0635B

BOLT

€ 3.50

7

0421109129
ref: 7

PIN

€ 2.00

8

1633106B010B1
ref: 8

GEAR,OIL PUMP DRIVEN

€ 37.00

9

0822112205
ref: 9

SHIM

€ 1.50

10

0926105006
ref: 10

PIN(5X18)

€ 1.50

11

0833131128
ref: 11
08331-3112A

CIRCLIP

€ 2.00

12

1648148B01
ref: 12

PIPE,OIL OUTLET

€ 46.00

13

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

14

1653017C00
ref: 14

PIPE COMP,OIL OUTLET,UPPER

€ 10.00

15

1654027A01
ref: 15
16540-27A02

PIPE,OIL,OUTLET,UNDER

€ 23.00
