BATTERY

GSXR1100 1989 (K) USA (E03)

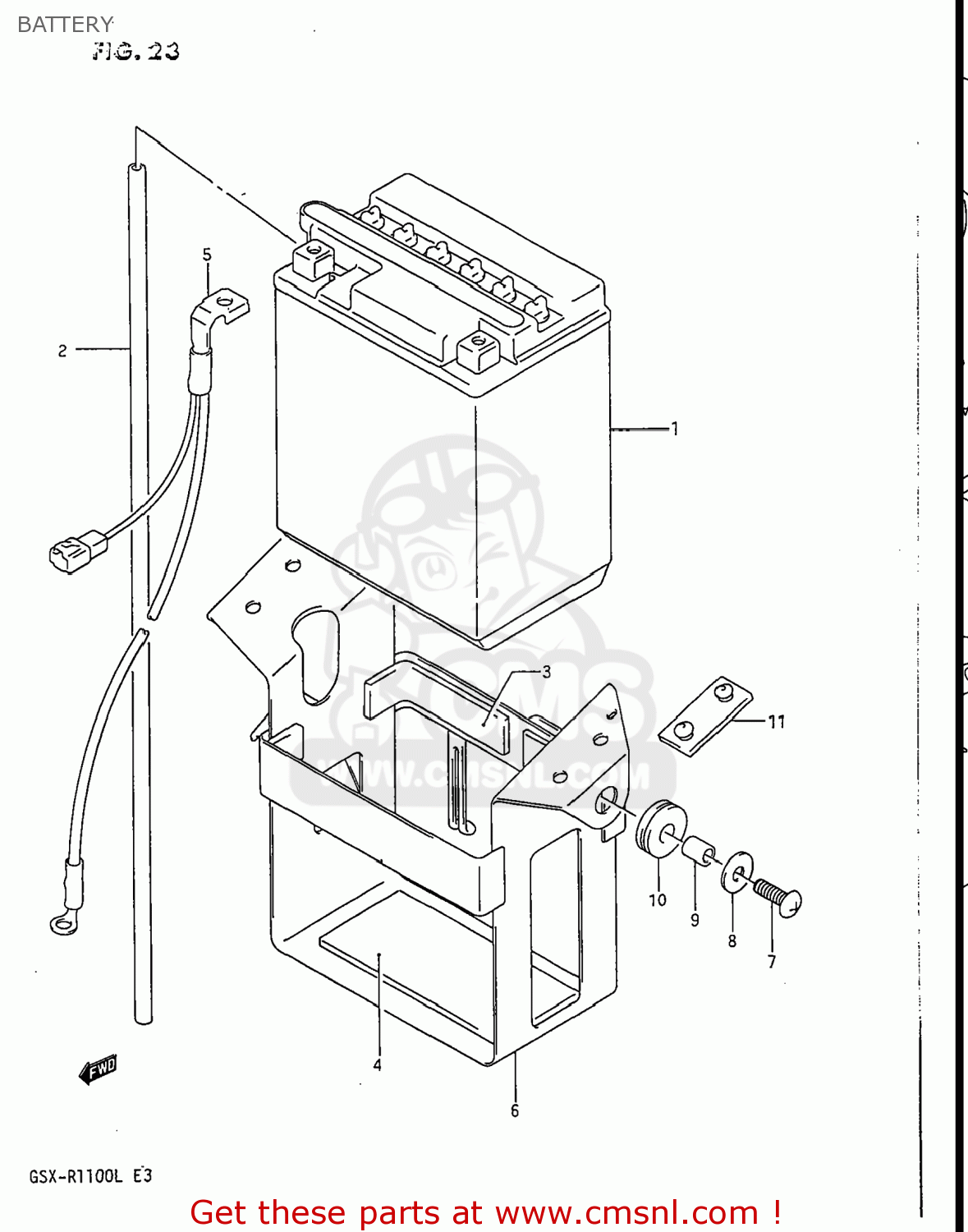

Battery diagram GSXR1100 1989 (K) USA (E03)

BATTERY GSXR1100 1989 (K) USA (E03)

BATTERY GSXR1100 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368014A00
ref: 2
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

3

3365229100
ref: 3
33651-37000

PROTECTOR,20X9

€ 5.00

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

5-1

3386040C00
ref: 5-1
33860-06B12

WIRE,BATTERY MINUS LEAD

€ 17.00

5-2

3386040C01
ref: 5-2
33860-06B12

WIRE,BATTERY MINUS LEAD

€ 17.00

6

4154040C00
ref: 6
41540-40C01

HOLDER,BATTERY

€ 38.50

7

0912506038
ref: 7
09125-06055

SCREW

€ 3.00

8

09160060A6
ref: 8
09160-06084

WASHER

€ 2.00

9

0918006152
ref: 9
09180-06262

SPACER

€ 3.00

10

0932009021
ref: 10
09320-09502

CUSHION

€ 4.00

11

0932905005
ref: 11

CUSHION

€ 4.00
