ALTERNATOR
GSXR1100 1989 (K) USA (E03)

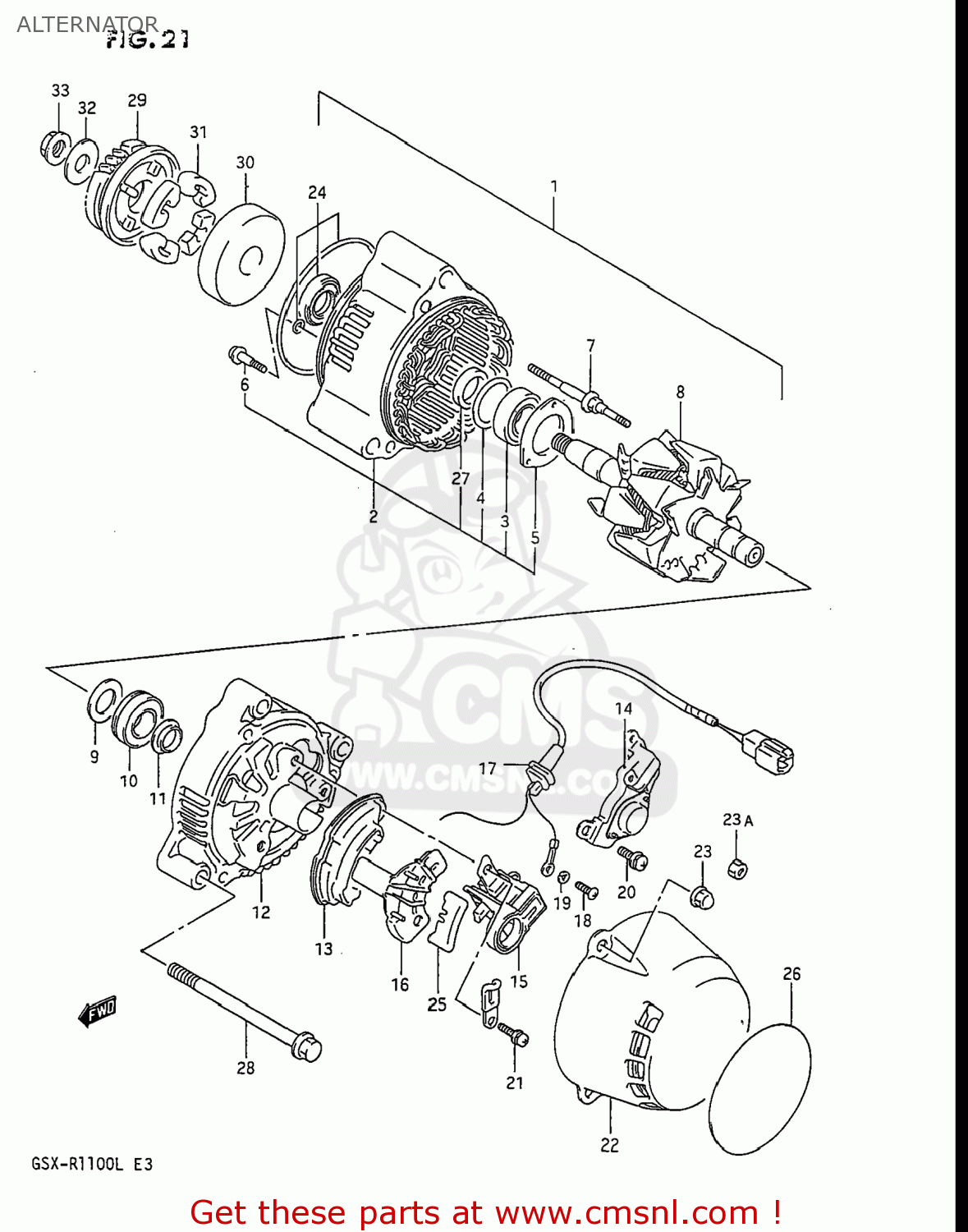

Alternator diagram GSXR1100 1989 (K) USA (E03)
ALTERNATOR GSXR1100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3140048B03
ref: 1
31400-17C04
GENERATOR ASSEMBLY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
€ 5.50
5
3158548B00
ref: 5
RETAINER
€ 9.00
6
3158648B00
ref: 6
SCREW,BEARING RETAINER
€ 3.50
7-1
3158785250
ref: 7-1
STUD BOLT
€ 9.00
7-2
3158719C00
ref: 7-2
31587-85250
STUD BOLT
€ 9.00
8
3171048B03
ref: 8
31710-48B04
ROTOR ASSEMBLY
€ 277.50
9
3161327A00
ref: 9
31613-82610
COVER (2)
€ 3.50
10
3161248B00
ref: 10
BEARING
€ 42.50
11
3161327A10
ref: 11
COVER(2)
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
€ 225.50
14
3250027A00
ref: 14
REGULATOR
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
€ 55.50
16
3168727A00
ref: 16
31687-17E00
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
€ 22.00
18-1
0211204086
ref: 18-1
02112-0408A
SCREW
€ 2.00
18-2
3151685250
ref: 18-2
02112-0406B
SCREW
€ 2.00
19
0832121046
ref: 19
08321-0104A
LOCK WASHER
€ 2.00
20
3168827A00
ref: 20
SCREW
€ 2.50
21
3168806B00
ref: 21
31688-27A00
SCREW
€ 2.50
22
3161448B00
ref: 22
COVER
€ 67.50
23
3169248B00
ref: 23
08313-2005A
NUT
€ 1.50
23A
0831616055
ref: 23A
NUT ,5MM
€ 2.00
24
3178048B00
ref: 24
31780-27X50
SEAL SET,OIL
€ 47.50
25
3151427A00
ref: 25
31687-17E00
BUSH
€ 4.50
26
3161517C00
ref: 26
31615-27E00
PROTECTOR,ALTERNATOR
€ 10.00
27
3177606B00
ref: 27
SPACER
€ 22.00
28-1
0151708905
ref: 28-1
01550-0890B
BOLT (8X90)
€ 3.50
28-2
0151708908
ref: 28-2
01550-08907
BOLT 8X90
€ 3.50
29
2273006B03
ref: 29
22730-06B04
GEAR,GENERATOR DRIVEN
€ 113.50
30-1
2273327A03
ref: 30-1
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
30-2
2273327A04
ref: 30-2
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
31
2123106B00
ref: 31
DAMPER,GENERATOR DRIVEN
€ 5.50
32
0821110283
ref: 32
WASHER
€ 3.00
33
0831626106
ref: 33
08316-2010B
NUT
€ 3.50
